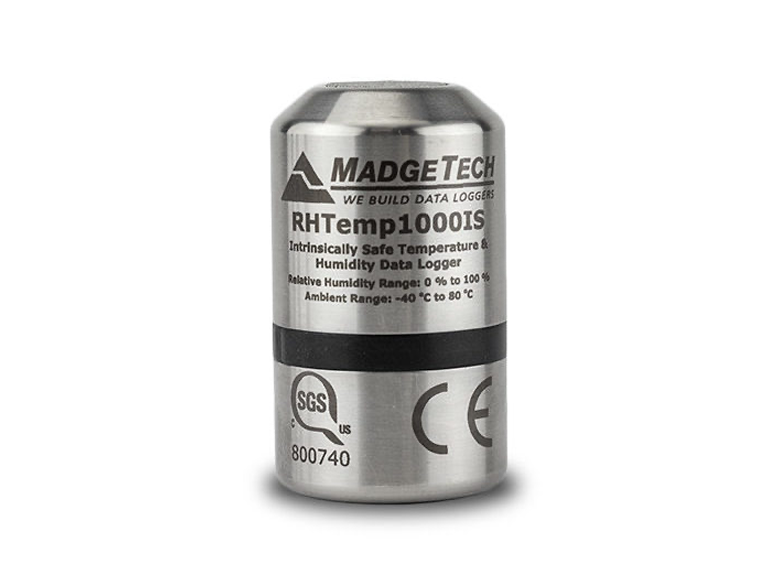

Thiết bị bộ ghi dữ liệu nhiệt độ và độ ẩm Humidity & Temperature Data Logger model RHTemp1000IS hãng MadgeTech

Memory

32,768 readings per channel

Reading Rate

1 reading every second up to 1 reading every 24 hours

Battery Life

2 years typical at 15 minute reading rate

Material

316 Stainless Steel/Radel

Dimensions

1.67 in x 0.97 in dia. (42.3 mm x 24.6 mm dia.)

Key Ring End Cap

Key ring replaces standard bottom
Thru-hole: 0.150"

Operating Environment

-40 ºC to +80 ºC (-40 °F to +176 °F)
0 %RH to 100 %RH (case properly sealed)

Required Interface Package

IFC400 or IFC406

Approvals

CE
FM Class 3600, latest revision
FM Class 3610, latest revision
CAN/CSA-C22.2 No. 60079-0:15
CAN/CSA-C22.2 No. 60079-11:14

Temperature Sensor

Resistance Temperature Detector (RTD)

Temperature Range

-40 °C to +80 °C (-40 °F to +176 °F)

Temperature Resolution

0.01 ºC (0.02 ºF)

Temperature Calibrated Accuracy

±0.5 °C (0 °C to +50 °C)
±0.9 °F (+32 °F to +122 °F)

Humidity Sensor

Capacitive Polymer

Humidity Range

0 %RH to 100 %RH (non-condensing)

Humidity Resolution

0.1 %RH

Humidity Calibrated Accuracy

±3 %RH maximum

Humidity Specified Accuracy Range

25 %RH to 75 %RH
+20 °C to +40 °C
Hysteresis Error 1 % Typical,
3% Maximum
