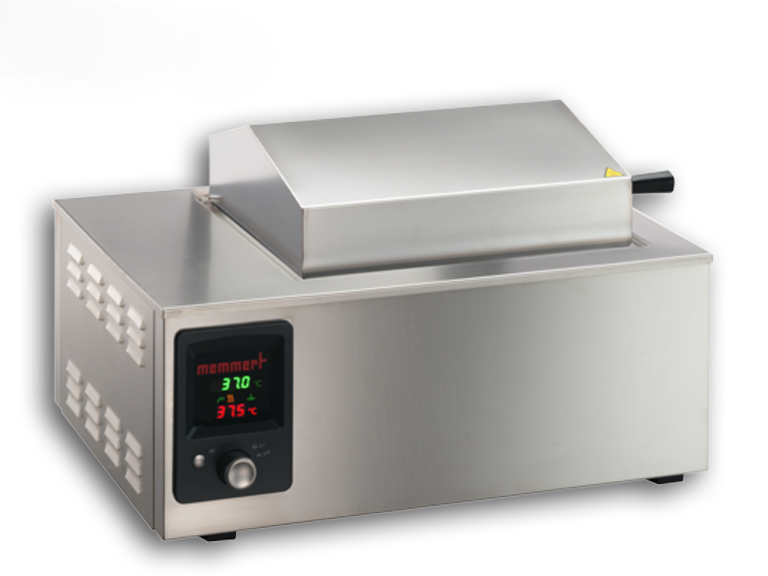

Thiết bị Bể ổn nhiệt Memmert model Waterbath WNB14 thể tích 14 Lít hãng Memmert

Waterbath WNB 14

Standard delivery Waterbath

On this page, you can find all the essential technical data on the Memmert water bath. Our customer relations team will be pleased to help if you want further information. If you should require a customised special solution, please contact our technical specialists at [email protected].

Setting temperature range

+10 to +95 °C and boiling stage

Working temperature range in °C

min. 5 above ambient up to +95 °C with additional boiling mode

Temperature sensor

1 Pt100 sensor class A in 4-wire-circuit

Timer

integrated digital timer from 1 min. to 99,59 hours for: ON continuous operation WAIT (delayed on for continuous and limited timed operation) HOLD

Controller

digital display of set and actual temperature and of (remaining) programme time

Temperature control

mechanical temperature limiter TB protection class 1 switching the heating off at approx. 30°C above max. temperature of the bath

Temperature control

in case of overtemperature due to failure, the heating is switched off at approx. 10°C above the set temperature (fixed value)

Autodiagnostic system

microprocessor PID-temperature controller with integrated autodiagnostic system with fault indicator

Heating Baths

corrosion-proof large-area heating on three sides

Dimensions W x H x D in mm

w_(A) x h_(C) x d_(B): 350 x 140 x 290 mm

Interior

easy-to-clean interior, made of stainless steel, reinforced by deep drawn ribbing, material no. 1.4301 (ASTM 304), laser-welded

Volume

14 l

Liquid level min.

97 mm

Liquid level max.

120 mm

Dimensions

w_(D) x h_(G) x d_(E): 578 x 347 x 436 mm

Voltage

230 V, 50/60 Hz

Electrical load

approx. 1800 W (during heating)

Installation

The vent openings in the left and back side must remain unobstructed. Minimum wall spacing on all sides is 80 mm. The minimum spacing from the top of the bath to the next ceiling is 750 mm.

Ambient temperature

+5 °C to +40 °C

Humidity rh

max. 80 %, non-condensing

Overvoltage category

II

Pollution degree

2

Transport information

Customs tariff number

Country of origin

Federal Republic of Germany

WEEE-Reg.-No.

Dimensions approx incl. carton

w x h x d: 670 x 530 x 400 mm

Net weight

approx. 15 kg

Gross weight carton

approx. 21 kg
