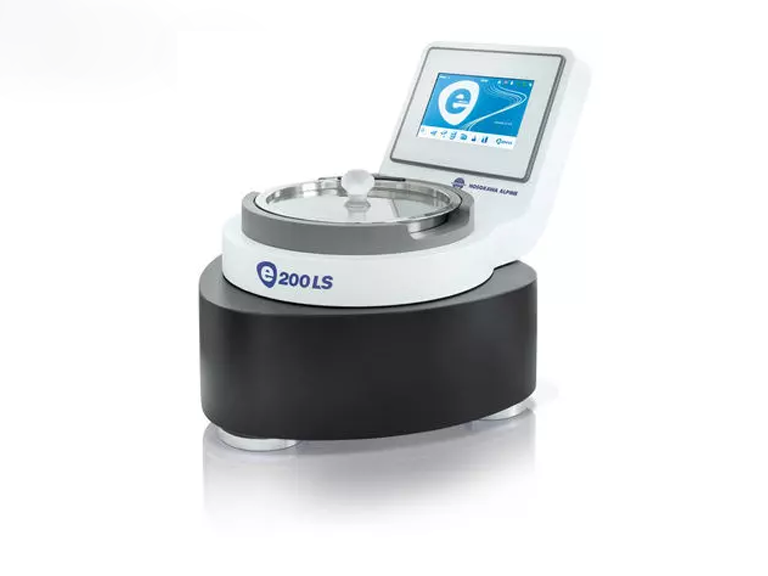

AIR JET SIEVE E200 LS

Overview:

As the inventor and world market leader of air jet sieving, Hosokawa Alpine has been setting new standards for more than 60 years. ALPINE air jet sieves have always been characterised by simple operation and reliable results. And there’s no end in sight to this success story: we have not only increased the comfort but also at the same time the efficiency and speed. The latest features allow you to always remain in full control.

• High reproducibility and comparability
• Simple operation thanks to integrated software packages
• Automated and innovative user guidance
• 100 % Made in Germany

Scope of delivery: Main device, high-performance industrial vacuum cleaner, type L, software (according to customer requirements), accessories (sieve adapter, slotted nozzle, acrylic glass lid, suction silencer, hammer, brush, power connection cable, operationg manual)

Optimal results through maximum effectiveness

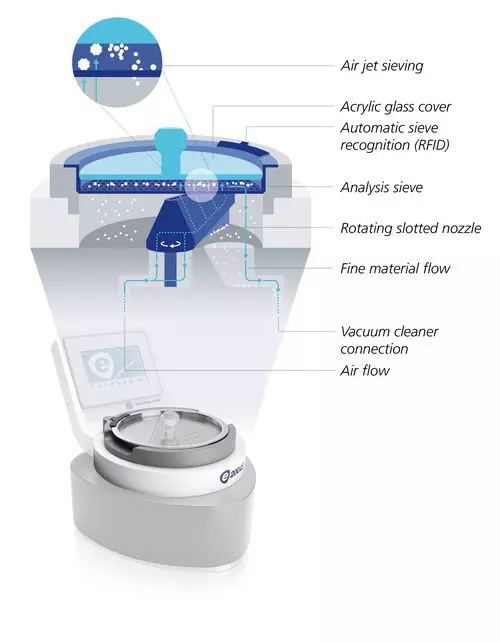

Because extremely fine powders tend to agglomerate and therefore clog up the sieve, the air jet sieve is the device of choice for sieving fine powders. This is where the air jet sieve e200 LS develops maximum effectiveness. Not just one, but two components work together here: a slotted nozzle which rotates inside the sieving chamber and an industrial vacuum cleaner connected up to the sieving chamber.

Once the vacuum cleaner is switched on, it creates a vacuum inside the sieving chamber. The extremely narrow slot of the slotted nozzle ensures that the incoming air is accelerated and flows through the sieve cloth at high speed from below. The particles on the sieve cloth are dispersed briefly by the air jet at the cover – even before they are pulled downwards through the sieve cloth by the suction of the vacuum cleaner. The effect: the fine material is separated quickly and effectively. The coarse material remains on the sieve and is reweighed at the end of the sieving process.

A further advantage: the automatic underpressure regulation as well as specification of the sieving-relevant parameters guarantee reproducible results.

Upgradeable at any time

eControl software options

• Connection of different vacuum cleaners
• Fast analysis
• Simple one-touch operation
• Graphic user interface
• Underpressure (in Pa), sieving time, date and time are displayed
• Manual underpressure regulation

(comparable to A200 LS)

• Automatic underpressure regulation
• Fast, simple analysis of results (in table form)
• Balance communication via RS-232 interface
• Central parameter management of all sieves

(comparable to 200 LS-N)

BASIC Features, plus:

• Automatic saving and printing
• Sieve set management (SOP)
• Analysis of results against set-point specification (table and graph form)
• Automatic backup
• Individual display accuracy
• Different diagram types
• Parameter management per test sieve

ULTIMATE Features, plus:

• Requirements for the software validation divided into ISPE GAMP 5, FDA 21 Part 11, EC GMP Annex 11 compliant
• User administration
• Password management
• Audit-Trail – user activity monitoring and event logging
• e-signature
• Network connection required

Features

• GLARE-FREE 7-INCH PANEL: Readable even under demanding lighting conditions and from just about any angle.
• SMART TOUCH SCREEN: Touch screen with robust 3-mm-thick safety glass.

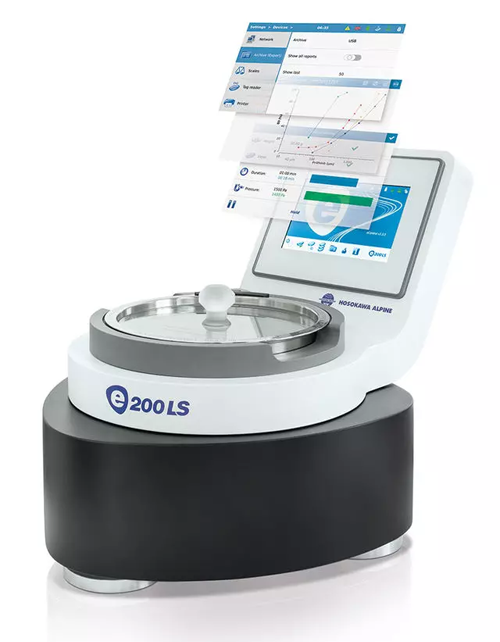

• INTUITIVE USER GUIDANCE: Modern visualisation for fast, easy and precise operation.
• SECURE RESULTS MANAGEMENT: Analysis and data reports with archiving and search functions as well as automatic backup.
• INDIVIDUAL APPLICATIONS: Password-protected settings, customisable display accuracy, migration of legacy data in XML format.
• IDEAL CONNECTIONS: Ethernet, RS-232 and 3 × USB, e. g. for a barcode scanner, keyboard and mouse.

Applications

Separation, fractionation and particle size analysis of powders in various industries:

• Minerals
• Chemicals production
• Pharmaceuticals – through compliance with 21 CFR Part 11
• Toner production
• Food and nutrition industry

Cement and construction material applications

INNOVATIVE, DIGITAL, AUTOMATED

Operation made easy

The air jet sieve e200 LS menu navigation is simple and well-defined. 12 languages available. Comprehensible symbols on the intuitive touch screen guarantee high operating comfort.

AIR JET SIEVE NEW FEATURES

PRODUCT VIDEO

A major facelift – innovative hardware and smart software

Check out the latest features of our air jet sieve – The market leader in terms of technology.

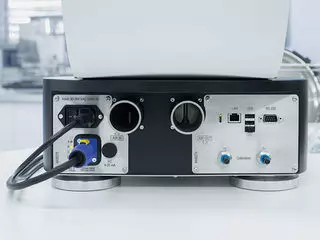

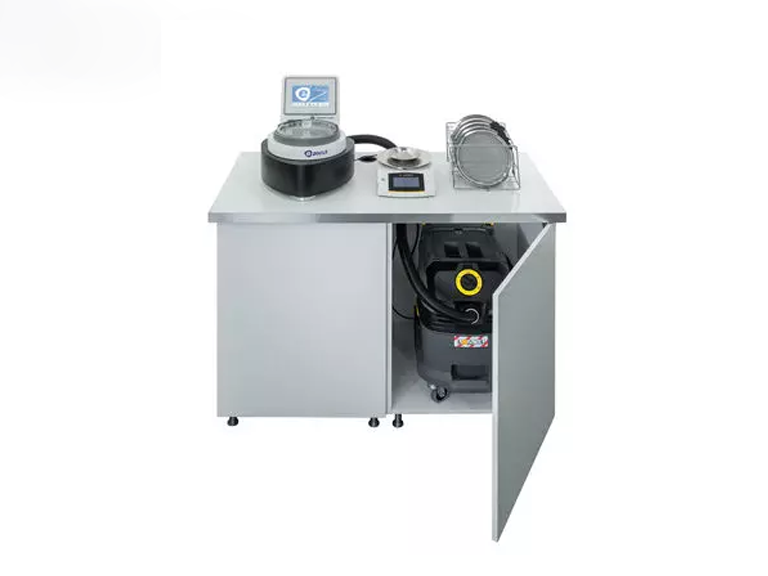

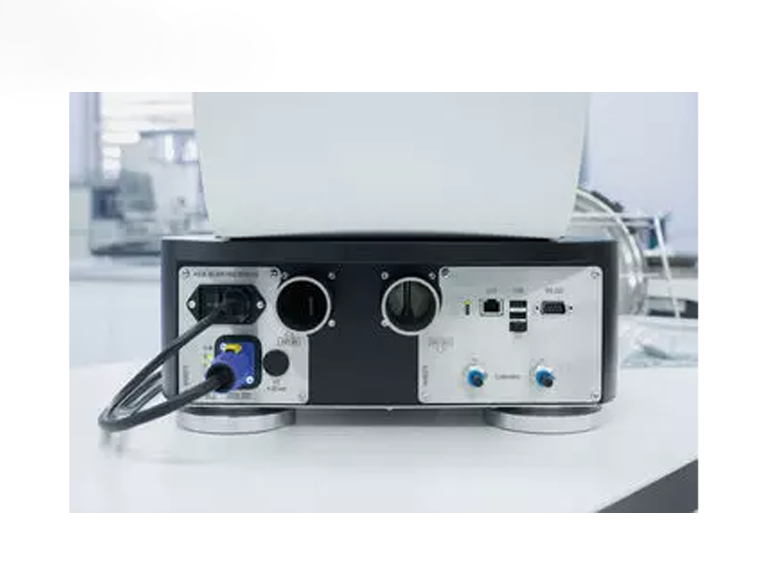

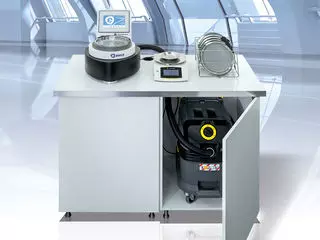

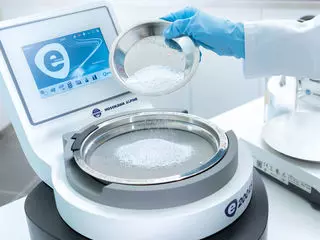

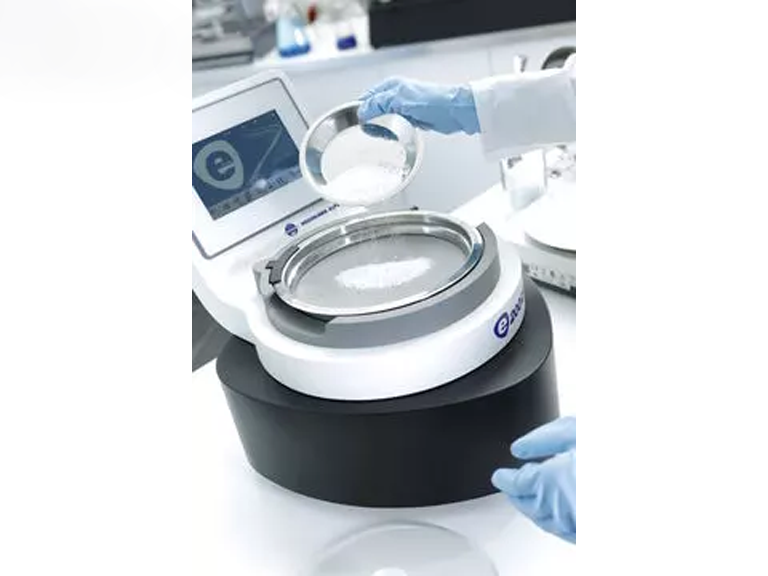

Setting with Kärcher vacuum cleaner	Air Jet Sieve in operation	Connection concept
