Thiết bị tủ phun muối model SC500 NeurTek Instruments

Thiết bị tủ phun muối model SC500 NeurTek Instruments

Description:

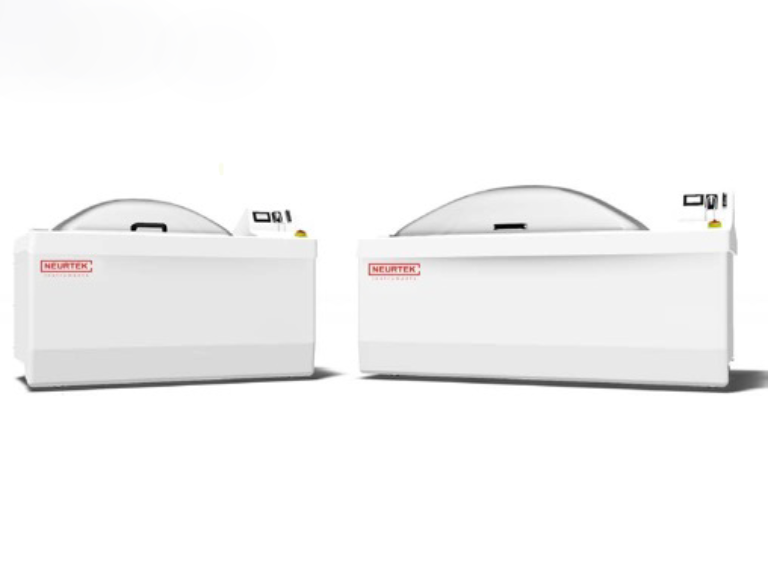

A range of 4 saturated humidity and salt spray cabinets.

•  Two sizes, with either 500 or 1000 Litre internal capacities (16.6 / 35.3 cu ft).

•  Robust glass reinforced plastic (GRP) construction, a durable impact resistant material with strong chemical and corrosion resistant properties to ensure a long life.

•  Fully transparent and seamless domed roof providing 360 degree visibility, self- supporting when open.

•  SP salt spray cabinets equipped with an advanced control system featuring a peristaltic pump based salt water delivery system, coupled with a user adjustable precision speed controller, to ensure consistent salt fog fall-out rates during long- unattended testing.



Design features

• Manufactured from a robust glass reinforced plastic (GRP) construction, combined with other non-corroding materials, to guarantee a trouble free long life.

• Visually striking, transparent domed roof providing unimpeded 360 degree viewing of the cabinet interior.

• Latching roof stay for ease of loading.

• Self-regenerating water trap seal, preventing salt fog escaping during operation.

• Ergonomically positioned menu driven touch screen programmer for comfortable and intuitive control.

• Timed stop facility and hours run counter.

• Maximized cross-sectional load area, enabling a large number of samples to be tested at any one time, without compromising ergonomics.

• Supplied with complimentary corrosion proof sample holders.

Platform available as an optional accessory for large/heavy objects to be located in the base of the cabinet.



Key features

• Designed specifically for long-terms tests (over 240 hours duration).
• Cabinet heated by externally mounted heater mats, protecting them against damage from the corrosive climate inside the cabinet, also ensuring uniform heat distribution inside the cabinet.
• Heated bubble tower humidifies the compressed air enroute to the salt fog atomiser, in full compliance with international test standards.
• Bubble tower can be topped up with water automatically, or by hand via the manual filler port.
• Utilises the atomisers´venturi effect combined with the air pressure regulator and gauge to deliver a uniform and continuous fall-out of salt fog on to the samples under test.
• Supplied with a 90L external salt water solution tank, easier to fill and clean than an integral tank.
• Additonal and larger capacity tnkas available for reduced change-over time on long-term testing.
• The all plastic atomiser has an integral filter in addition to a filter on the reservoir feed pipe to prevent salt crystal build-up blocking the outlet nozzle and disrupting the test.
• Cabinets can be operated with a wet or dry base.
• Insulated non-transparent roof blanket, offering greater thermal efficiency available as an option.
• SC models are equipped with an advanced control system featuring a peristatic pump based slat water delivery system, coupled with a user adjustable precision speed controller.

Ensures consistent fall-out of salt spray / fog on to the test samples, over longer tern duration tests (240+ hours of continuous salt spray testing) especially if such testing is unattended.



Installation requirements

Developed with ease of installation in mind, the Alpha+ features integral runners to enable a fork lift truck to lift the cabinet from behind.

Once transported, the cabinets are floor standing with lockable castors so that they can be manoeuvred into the test facility and positionedwith ease.

A connection to an exhaust vent to atmospheric pressure and a low level waste water drain is required, to allow the combined exhaustand drain to removewaste water / salt water and fog from the cabinet.

Installation requirements

NEURTEK has a wealth of knowledge and highly experienced technical support staff, internally and externally amongst our many distributors. So wherever you are in the World we can help keep your Alpha+ test cabinet in excellent working

condition.

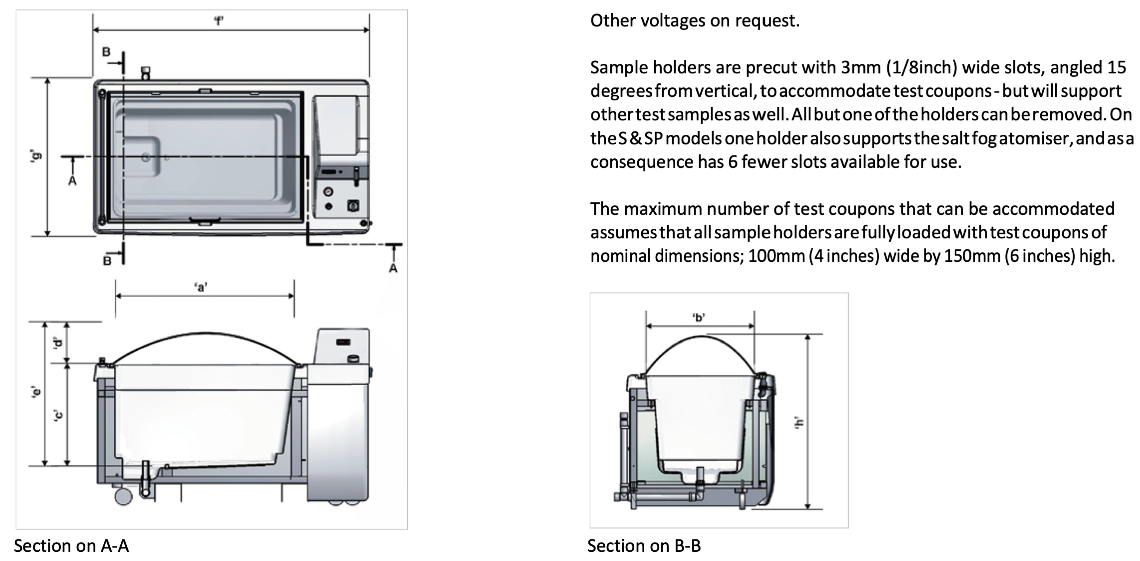

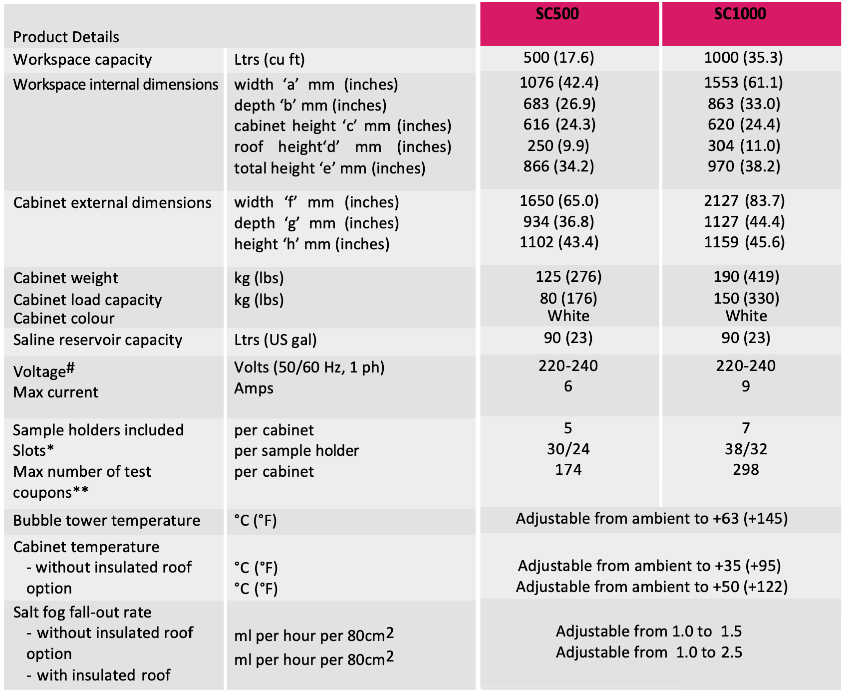

Technical specifications



Optional accessories for SC salt spray cabinet models

Fall-out measuring kit	NEU-ACC35	Two 80cm2 funnels and two 0-100ml measuring cylinders, for monitoring salt spray fall-out rate.	Fall-out kit	Refractometer
Hand-held salinity refractometer	NEU-ACC100	A salinity refractometer to give a direct reading of percentage sodium chloride in water, in the range 0 to 28%, from a single drop of salt solution. Can be used to simply and accurately check the concentration of the salt solution to be sprayed.
Insulated roof	NEU-ACC45/1   NEU-ACC45/2	An insulated non-transparent cover for the transparent roof (supplied as standard). Improves thermal efficiency to increase cabinet maximum operating temp and salt spray fall-out range.
Additional saline reservoir	ASC-ACC55	An additional 90Ltrs (23 US Gal) reservoir to the one supplied as standard.
Advanced salt solution reservoir	NEU-ACC02 *see note	Translucent salt solution tank with a graduated scale for viewing the contents, supplied with a hinged lid for filling & cleaning, mounted on castors. * ACC02/1      80 Ltr / 21 US gal capacity model * ACC02/2      115 Ltr / 30 US gal capacity model * ACC02/3      160 Ltr / 42 US gal capacity model	Insulated roof
Air compressor	NEU-ACC04/1	Provides continuous supply of oil free compressed air to enable functioning without connection to a local compressed air supply.	Advanced salt solution reservoir	Air compressor
Deioniser	NEU-ACC06	Provides high purity water for topping up the cabinet air saturator, humidity system and for making up salt solution. * ACC06/1      small model * ACC06/2      medium model * ACC06/3      large model
Waste water trough	NEU-ACC20	Where a local floor level drain is unavailable the ACC20 provides a tank into which the cabinet drain outlet is terminated. When full, waste water is automatically pumped to a remote drain located up to 10m/32ft horizontally & 3m/10ft vertically.	Deioniser	Waste water trough
Exhaust salt scrubber	NEU-ACC92	Removes the majority of highly corrosive salt fog from the cabinet exhaust where it is not possible to vent this outside the building. ACC92/1 - non- recirculating - total loss of water used to condense the salt fog. ACC92/3 - recirculating- reuses some of the water used to condense the salt fog.
Air agitation of salt solution	NEU-ACC96	Uses compressed air bubbles to aid dissolving salt within the salt solution reservoir to create a thoroughly mixed salt solution (only for use with ACC02 advanced salt solution reservoir).	Exhaust salt scrubber	Air agitation of salt solution

Standard Corrosion Tests

ASTM B113/ ASTM B117/ ASTM B287/ ASTM B368/ ASTM G85 annex A1 /

ISO 3768/ ISO 3769/ ISO 3770/ ISO 7253/ ISO 9227

BS 3900 Part F12 /BS 5466 Part 1/BS 5466 Part 2/BS 5466 Part 3/BS 7479UK

BS2011 Part2.1 Ka/D17 1058/DEF STAN 00-35 Pt3 CN2

DIN 50 021-CASS/DIN 50 021-ESS/DIN 50 021-SS/EN 13523-8/EN 60068-2-11

JIS H 8502 M1 Japan/JIS H 8502 M2Japan/JIS H 8502 M3Japan/JIS Z 2371 Japan/

JNS 30.16.03   Jaguar

MIL-STD-202   USA Military

MIL-STD-750 method 1046USA Military

MIL-STD-810G USA Military

NFX 41-002     France

Nissan MES-M0007 Method A Japan Automotive

RTCA/DO-160  RTCA Inc.

STD 5711,102  Volvo

TPJLR.52.252   Jaguar Land Rover

DIN 50 021-CASS         Germany

DIN 50 021-ESS           Germany

DIN 50 021-SS Germany

EN 13523-8     Europe

EN 60068-2-11            Europe

EN 60068-2-52            Europe

EN 60512-11-6            Europe

EN ISO 4541    Europe

EN ISO 7253    Europe

FLTM BI 103-01           Ford

GM4298P        General Motors

IEC 60068-2-11           Europe

IEC 68-2-11     Europe

IEC 68-2-52     Europe
