PosiTest AT-Verifier Adhesion Tester Accuracy Verification Kit

Overview:

Made in the USAThe PosiTest AT Verifier is ideal for checking the accuracy and operation of PosiTest Adhesion Testers and is an important component in fulfilling both ISO and in-house quality control requirements.

The PosiTest AT Verifier and included documents allow the user to certify the accuracy of PosiTest Adhesion Testers.

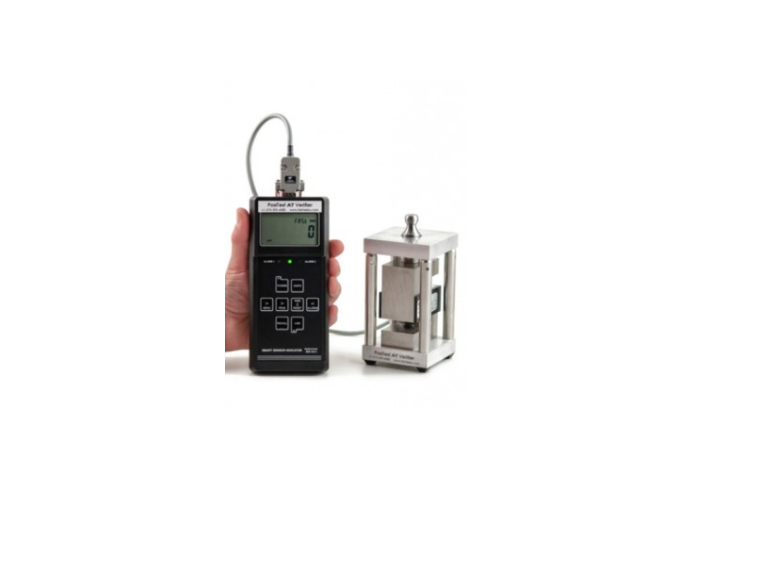

The PosiTest AT Verifier Kit includes a high precision load cell and handheld smart sensor indicator, it can be used with all PosoTest Pull-Off Adhesion Testers, ideal for field or laboratory use. The kit is portable and requires no external power source. It's mounted with a permanent steel 20 mm loading fixture (dolly). A conversion factor is used to verify other sizes.

The SSI device comes pre-configured for verification of PosiTest AT-M and AT-A pull-off adhesion testers. No additional configuration is required or recommended.

The PosiTest AT Verifier is easy to use, connect the adhesion tester’s pull-off actuator to the PosiTest AT Verifier’s loading fixture. Apply pressure using the adhesion tester’s normal operating procedure. Compare values from the adhesion tester and the Verification Device.

Features:

High precision load cell and handheld smart sensor indicator

Bonded foil strain gages are hermetically sealed for protection against industrial environments

Ideal for field or laboratory use

Portable — requires no external power source

NOTE:

Device displays imperial units only. Conversion Factor: 1 megapascal (MPa) = 145 pounds/inch2 (psi).

Peak hold and real time reading display

Ready to use with all PosiTest Pull-Off Adhesion Testers

Comes with a Sample Certificate of Accuracy and Measurement Uncertainty Worksheet

Certificates of Calibration showing traceability to NIST are included for both the load cell and smart sensor indicator

One year warranty

Kit includes:

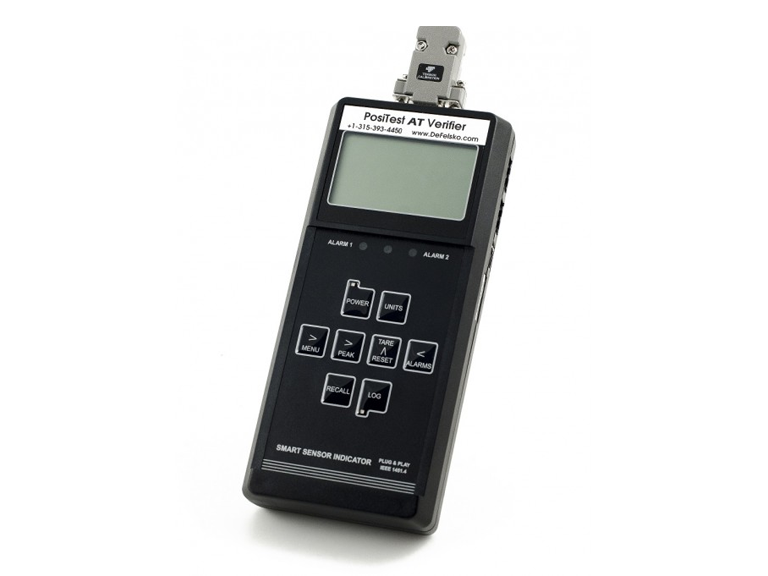

Smart Sensor Indicator (SSI) Device

Load Cell with steel 20mm Loading Fixture (dolly)

Built-in rechargeable Lithium Ion Batteries

Universal AC power adaptor/charger

Instruction Manuals

Certificates of Calibration

Sample Certificate of Accuracy

Measurement Uncertainty Worksheet

Hard shell carrying case
