Máy đo tốc độ và chiều dài YSL-2000HD
Multi-function Speed & Length Meter
Overview:
The CHECK-LINE YSL-2000HD combines the functions of three separate instruments in one, easy-to-use device.

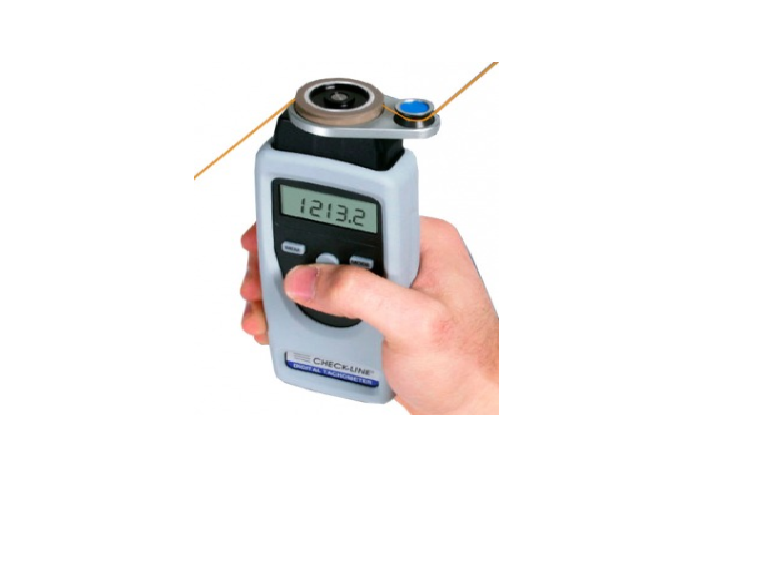

It accurately measures the speed and length of yarns, and other filaments using a unique "wrapper" roller. This precision roller directs the filament onto the low-inertia, U-grooved measuring wheel to maximize contact and eliminate filament slip and breakage.

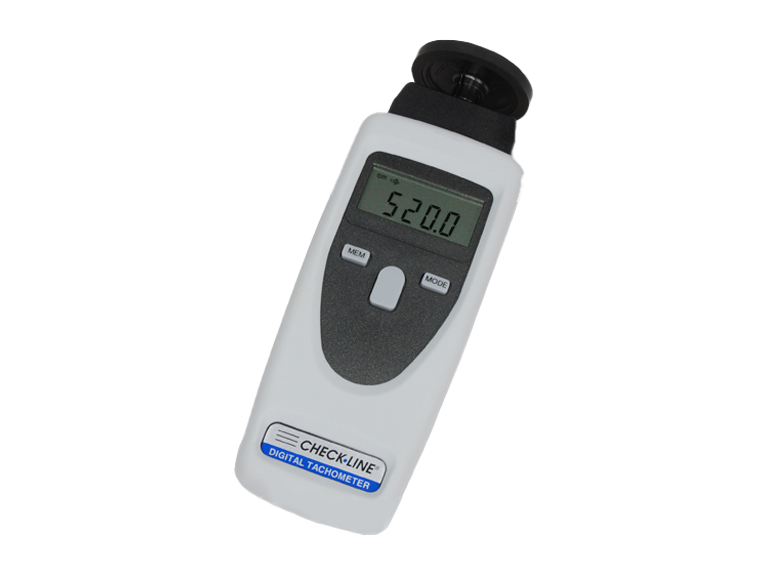

The YSL-2000HD can also be used as either a contact or non-contact tachometer to measure rotational speeds of shafts, motors, pulleys, etc. or linear speeds of moving surfaces such as conveyor belts, webs of paper or fabric, etc.

Textile Test Instruments
Our measuring devices for textiles are ideal for carrying out the constant monitoring and control of your production processes. Our range includes sample cutters for cutting out exact samples from a variety of materials such as foils, paper and various textiles. In combination with an additionally available basis weight scale, the basis weight of textiles can be determined, which is known to be a quality feature and an important test criterion for high quality textiles. The basis weight describes the weight or the mass of a material which acts on a certain surface, the unit usually used for the basis weight is g / m².
Textile thickness gauges
We also have thickness gauges for various applications in our range. So there are initially handy thickness gauges, which are based on the shape of the probe and the pressure used, ISO standards such as DIN EN ISO 5084, DIN EN ISO 9073-2 and DIN 53326 are modeled and are therefore ideal for a quick check of materials directly in production. But also state-of-the-art mechanical and motorized thickness gauges that meet the various DIN EN ISO standards in demand in the textile industry with the highest precision and are therefore perfectly suitable for use in a test laboratory.
Textile moisture meters
Moisture meters for textiles are just as important as the two test methods mentioned above. For quality assurance on the one hand, but also for monitoring incoming goods. The moisture content of textiles can be a significant cost factor if materials with too high a moisture content are delivered. We therefore also offer you moisture meters, which can be equipped with special electrodes for yarns, packages, but also for goods in sacks or on rolls, and calibrations for textiles such as acetate, acrylic, hemp yarn, jute yarn, cotton, nylon, polyester, viscose, Flax and wool. Versions with a USB output are also available to document the results as part of your quality management.
Textile hardness meters and tension meters
Finally, we offer various production aids, such as hardness testers for yarn packages or measuring devices for yarn consumption. If you are looking for a tension meter to monitor the tension of your yarns and threads, you will also find this in a separate category on this page.
Features:
Slide-on measuring heads make it simple to rapidly convert from one function to another
Accuracy of ± 0.02%
Built-in memory for last, maximum, minimum values
NIST-Traceable Certification Included
5 Year Warranty
|
User-selected engineering units |
||
|
Linear Speed |
Length |
Revolutions |
|
feet/min |
feet |
rpm |
|
meters/min |
meters |
|
|
inches/min |
inches |
|
|
Specifications |
|
|
Measuring Ranges |
|
|
RPM |
Non-Contact: 1.00 - 99,999 rpm Contact: 1.00 - 19,999 rpm |
|
Surface Speed |
0.30 - 6,500 feet/min 0.10 - 1,999 meters/min 4.0 - 78,000 inches/min |
|
Length |
0.01 - 99,999 feet 0.02 - 99,999 meters 1.0 - 99,999 inches |
|
Resolution |
.01 from 0 - 100 .1 from 100 - 1,000 1 from 1000 - 99,999 |
|
Yarn/Wire Diameter (max.) |
Yarn: 1mm Wire: 0.3mm |
|
Accuracy |
± 0.02% of reading or 1 digit |
|
Display |
5 - Digit LCD, 10mm high |
|
Decimal Point |
Automatic |
|
Memory System |
Maximum, minimum, and last reading (retained in memory for the life of the batteries) |
|
Measurement System |
Non-Contact: Visible LED light beam Contact: Contact adapter |
|
Sensing Distance |
Up to 14 inches (350mm) |
|
Display Update Time |
0.5 seconds or one measuring |
|
Auto Power Off |
After 30 seconds of non-use (minimum, maximum and last reading retained in memory) |
|
Battery Life |
20 hours continuous use |
|
Weight |
6 ounces (170 grams) |
|
Housing Material |
ABS Plastic |
|
Operating Temperature |
32 to 122º F (0 to 50º C) |
|
Storage Temperature |
-4 to 150º F (-20 to 70º C) |
|
Optional Accessories |
Shaft extension, 3.15 inches (80 mm) |
|
Warranty |
5 years |
