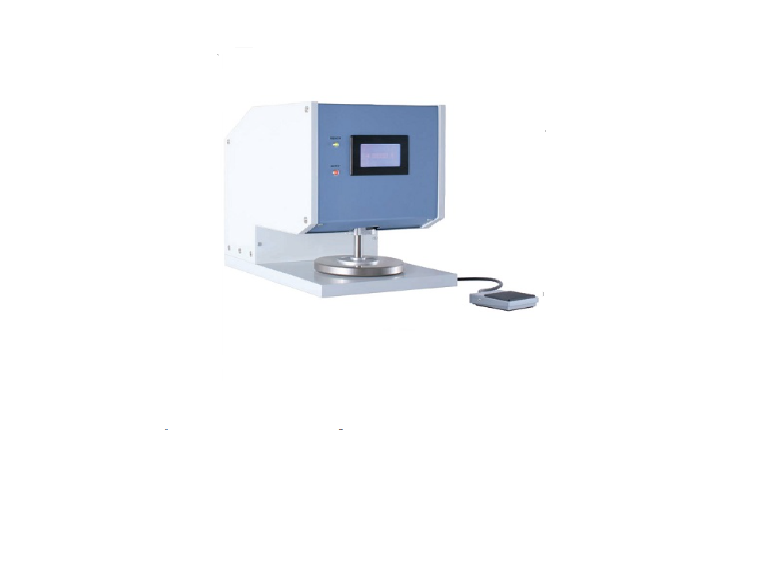

D-2010 Motorized Precision Material Thickness Gauge

Overview:

The D-2010 Precision Material Thickness Gauge has a stable and rigid base frame with an encapsulated, separate measuring block. And is a top choice if you appreciate high precision (up to 0.001 mm), easy operation, automatic processing and objective, reproducible measurement results.

The device can be adapted to the materials to be measured according to your requirements. Thus, the calliper surfaces, the calliper materials and the measurement pressures fit in exactly with the guidelines of ISO, EN, DIN or also with your own test regulations.

Common Standards

For textiles and non-woven textiles according to DIN EN ISO 5084 (measuring face 20 cm²/pressure 0.1 kPa and 1 kPa)

For fleece according to DIN EN ISO 9073-2 (measuring face 25 cm²/pressure 0.1 kPa and 0.5 kPa)

For geomaterials according to DIN EN ISO 964-1 (measuring face 25 cm²/pressure 2 kPa and 20 kPa, not 200 kPa)

The D-2010 device is also available with different measurement ranges:

Ranges 0 – 10 mm, 0 – 25 mm (or with the equivalents in inch, switchable).

With this instrument the most popular checking methods can be applied for textiles, felt, geomaterials, paper, floor coverings, leather, foils, rubber, plastic films etc.

The D-2010 has data outputs for the digital processing of the measurement results or for the transmission to a printer.

---

Features

Resolution 0.01 mm - standard, 0.001 mm - optional

(0.001 mm is standard for D-2010-P, D-2010-F)

Gauging depth (centre of the stamp) 110 mm

Illuminated graphic touch-screen with menu controlled operation (optionally in German or English)

Individual measurements as well as measurement series with every specified number of measurement cycles are possible

Footpedal is included

The automatic zero point control can be selected by pressing the key

Dwell times of 1 – 60 seconds are adjustable

Motor-driven calliper movement with steady lowering speed (standard 2.5 mm/s)

The measurement path can be preselected in order to save time

Digital interface

Always up-to-date and simultaneous display of the measurement value, the measurement cycle, the average value and the standard deviation

Includes Calibration Certificate

Selectable measuring units mm / inch

Separate measuring block, incased against outside external impacts, for highest accuracy and repeatability

---

Model:

Available models
Model	Standard	Application	Feeler dia. (mm)	Feeler area (cm²)	Pressure
D-2010-T	DIN EN ISO 5084	Textiles	50.42	20	0.1 kPa and 1 kPa
D-2010-V	DIN EN ISO 9073-2	Standard fleece	56.42	25	0.5 kPa
D-2010-G	DIN EN ISO 964-1	Geomaterials	56.42	25	2 kPa
D-2010-G1	DIN EN ISO 964-1	Geomaterials	56.42	25	2 kPa, 20 kPa and 200 kPa
D-2010-NW	DIN EN ISO 53855	Non-woven textiles	56.42 35.68	25 10	0.5 kPa, 1 kPa and 5 kPa
D-2010-P*	DIN EN ISO 53105	Paper	16	2	100 kPa
D-2010-HY*	DIN EN ISO 54540	Hygenic Paper	56.42	25	2 kPa
D-2010-L1	DIN EN ISO 53326 (out of date)	Leather	10	0.785	50 kPa
D-2010-L2	DIN EN ISO 2589	Leather	10	0.785	49.1 kPa
D-2010-Gi*		Rubber	36.68	10	5 kPa
D-2010-CF	ISO 2286-3	Rubber- or plastics-coated fabrics	12	1.13	2 kPa, 10 kPa and 24 kPa
D-2010-CF1	ISO 2286-3	Rubber- or plastics-coated fabrics	12	1.13	2 kPa, 5 kPa, 10 kPa and 24 kPa
			Feeler Calotte
D-2010-F*	DIN 53370	Foils	R 30 mm		0.5 N
D-2010-AB	DIN-EN 1849-2	Waterproofing sheets	10 mm	0.785	20 kPa
*Model D-2010-P, D-2010-HY, D-2010-Gi and D-2010-F have an resolution of 0.001mm Individual configurations to an required standard are available upon request



Comparative table series (D-2010)
	D-2020	D-2010	D-2005	D-2000
Touch-screen with menu control in German or English	v	v	-	-
Seven-segment display	-	-	v	v
Display illumination	v	v	-	-
Statics display	v	v	-	-
Automatic zero point control	v	v	-	-
Preselection of the measurement cycles	v	v	-	-
Preselection of the measuring range	v	v	optional	-
Adjustable dwell time	v	v	-	-
Motor-driven calliper movement	v	v	v	-
Connection for pedal	v	v	v	-
Manual calliper movement via a control lever	-	v	-	v
Automatic material infeed, adjustable	v	-	-	-
Digital interface	v	v	v	v
Available scale divisions	0,001 mm, 0,01 mm
Possible measuring ranges	0 – 10 mm, 0 – 25 mm, 0 – 50 mm
Length × width × height (in mm, for measuring range 0 – 10 mm)	300 * 300 * 320	300 * 200 * 300	300 * 210 * 300	300 * 240 * 300
Weight (in kg, for measuring range 0 – 10 mm)	31,5	24,0	23,0	22,5

Option:

Code R	Higher resolution 0.001 instead of 0.01 mm (0.001 mm is standard for D-2005-P, D-2005-F)
Code E	Extended measuring range 0 - 25 mm
Code E2	Extended measuring range 0 - 50 mm
Code D	Adjustable dwell time
Code D2	Adjustable dwell time & measurement range
Code P	External power supply of the display
DKD-Cal	Calibration report from a DKD authorized laboratory
Code S	Software & Cable
Special models can be requisted!
