Máy đo độ dày vật liệu D-2005 | Checkline

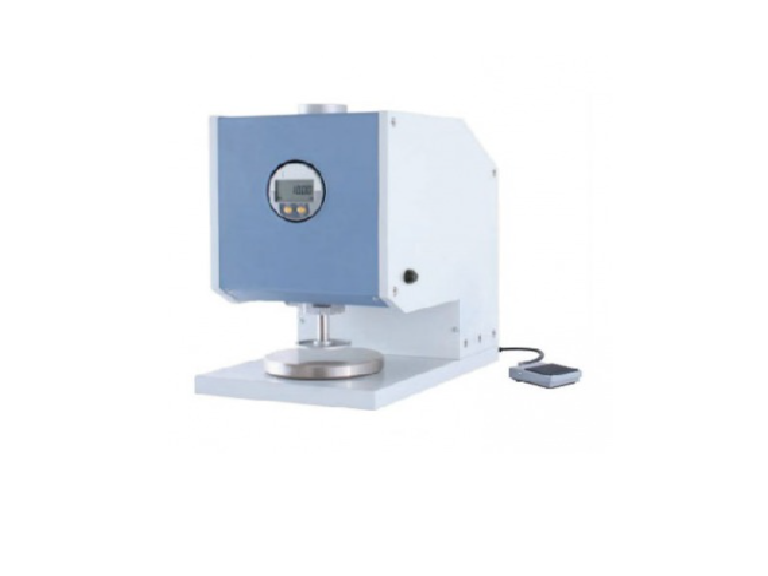

D-2005 Motorized Precision Material Thickness Gauge

The D-2005 Motorized Precision Material Thickness Gauge has a stable and rigid base frame with an encapsulated, separate measuring block. And is a top choice if you appreciate high precision (up to 0.001 mm), easy operation, automatic processing and objective, reproducible measurement results.

The device can be adapted to the materials to be measured according to your requirements. Thus, the calliper surfaces, the calliper materials and the measurement pressures fit in exactly with the guidelines of ISO, EN, DIN or also with your own test regulations.

Common Standards

For textiles and non-woven textiles according to DIN EN ISO 5084 (measuring face 20 cm²/pressure 0.1 kPa and 1 kPa)

For fleece according to DIN EN ISO 9073-2 (measuring face 25 cm²/pressure 0.1 kPa and 0.5 kPa)

For geomaterials according to DIN EN ISO 964-1 (measuring face 25 cm²/pressure 2 kPa and 20 kPa, not 200 kPa)

The D-2005 device is also available with different measurement ranges:

Ranges 0 – 10 mm, 0 – 25 mm and 0 – 50 mm (or with the equivalents in inch, switchable).

With this instrument the most popular checking methods can be applied for textiles, felt, geomaterials, paper, floor coverings, leather, foils, rubber, plastic films etc.

This alternative to the D-2010 does not have an illuminated, menu controlled touch-screen with its statistics functions, instead it is equipped with a dial gauge with seven-segment display and individual keys. Of course, there is a data output for the digital processing of the measurement results.

Features

Rigid housing frame

Separate measuring block, encased against outside external impacts, for highest accuracy and repeatability

Optional: Preselection of the measuring range

Optional: Adjustable dwell time

Footpedal included

Switch-selectable measuring units mm / inch

Optional: software for data transfer and analysis - Part No. SW-50

Motor-driven calliper movement

Seven-segment display

Resolution 0.01 mm - standard, 0.001 mm - optional

(0.001 mm is standard for D-2005-P, D-2005-F)

Model:

Available models
Model	Standard	Application	Feeler dia. (mm)	Feeler area (cm²)	Pressure
D-2005-T	DIN EN ISO 5084	Textiles	50.42	20	0.1 kPa and 1 kPa
D-2005-V	DIN EN ISO 9073-2	Standard fleece	56.42	25	0.5 kPa
D-2005-G	DIN EN ISO 964-1	Geomaterials	56.42	25	2 kPa
D-2005-G1	DIN EN ISO 964-1	Geomaterials	56.42	25	2 kPa, 20 kPa and 200 kPa
D-2005-NW	DIN EN ISO 53855	Non-woven textiles	56.42 35.68	25 10	0.5 kPa, 1 kPa and 5 kPa
D-2005-P*	DIN EN ISO 53105	Paper	16	2	100 kPa
D-2005-HY*	DIN EN ISO 54540	Hygenic Paper	56.42	25	2 kPa
D-2005-L1	DIN EN ISO 53326 (out of date)	Leather	10	0.785	50 kPa
D-2005-L2	DIN EN ISO 2589	Leather	10	0.785	49.1 kPa
D-2005-Gi*		Rubber	36.68	10	5 kPa
D-2005-CF	ISO 2286-3	Rubber- or plastics-coated fabrics	12	1.13	2 kPa, 10 kPa and 24 kPa
D-2005-CF1	ISO 2286-3	Rubber- or plastics-coated fabrics	12	1.13	2 kPa, 5 kPa, 10 kPa and 24 kPa
			Feeler Calotte
D-2005-F*	DIN 53370	Foils	R 30 mm		0.5 N
D-2005-AB	DIN-EN 1849-2	Waterproofing sheets	10 mm	0.785	20 kPa
*Model D-2005-P, D-2005-HY, D-2005-Gi and D-2005-F have an resolution of 0.001mm Individual configurations to an required standard are available upon request

Comparative table series (D-2000)
	D-2020	D-2010	D-2005	D-2000
Touch-screen with menu control in German or English	v	v	-	-
Seven-segment display	-	-	v	v
Display illumination	v	v	-	-
Statics display	v	v	-	-
Automatic zero point control	v	v	-	-
Preselection of the measurement cycles	v	v	-	-
Preselection of the measuring range	v	v	optional	-
Adjustable dwell time	v	v	-	-
Motor-driven calliper movement	v	v	v	-
Connection for pedal	v	v	v	-
Manual calliper movement via a control lever	-	v	-	v
Automatic material infeed, adjustable	v	-	-	-
Digital interface	v	v	v	v
Available scale divisions	0,001 mm, 0,01 mm
Possible measuring ranges	0 – 10 mm, 0 – 25 mm, 0 – 50 mm
Length × width × height (in mm, for measuring range 0 – 10 mm)	300 * 300 * 320	300 * 200 * 300	300 * 210 * 300	300 * 240 * 300
Weight (in kg, for measuring range 0 – 10 mm)	31,5	24,0	23,0	22,5

Option:

Code R	Higher resolution 0.001 instead of 0.01 mm (0.001 mm is standard for D-2005-P, D-2005-F)
Code E	Extended measuring range 0 - 25 mm
Code E2	Extended measuring range 0 - 50 mm
Code D	Adjustable dwell time
Code D2	Adjustable dwell time & measurement range
Code P	External power supply of the display
DKD-Cal	Calibration report from a DKD authorized laboratory
Code S	Software & Cable
Special models can be requisted!

Xem thêm chi tiết sản phẩm ▼

Specifications
Measuring range:	0 - 10 mm, option 0 - 25 mm
Resolution:	0.01 mm, option 0.001 mm
Accuracy:	± 0,0008 mm at 0,0001 resolution ± 0,005 mm at 0,001 resolution ± 0,01 mm at 0,01 resolution
Depth of jaw:	160 mm
Measuring system:	Capazitive -> Sylvac
Display	LCD 6 digit, 8.5 mm high
Measuring unit	mm or inch
Feeler shape and surface pressure:	According international Standards DIN, EN and ISO
Adjustable dwell time	optional
Output signal:	RS 232
Temperature range:	10 - 45 °C
Air humidity:	85 % RH, max
Dimensions:	300 x 240 x 300 mm (LxWxH)
Weight, net (gross):	23 kg
