Thiết bị kiểm tra độ bám dính model KN-10 Neurtek Instruments

Thiết bị kiểm tra độ bám dính model KN-10 Neurtek Instruments

Description:

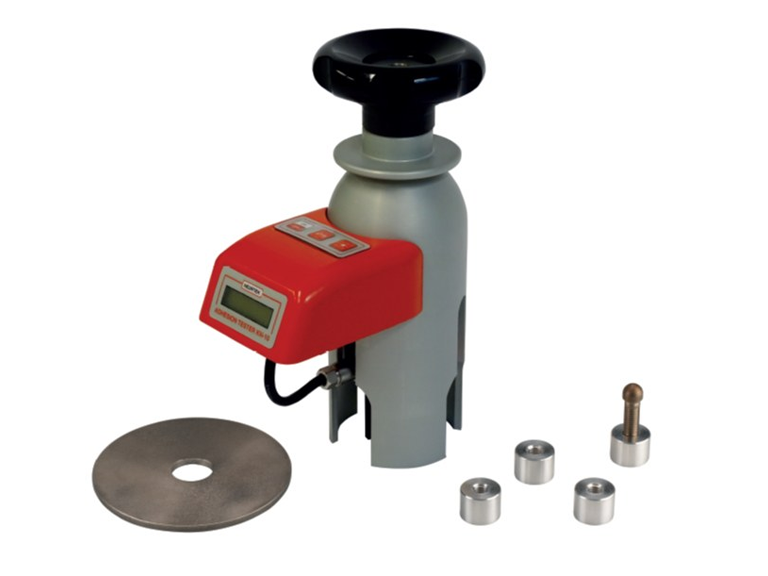

Pull / Push Adhesion, Electronic Adhesion Tester KN-10

Equipment developed to measure the adhesion of paint films, coatings and building materials on top of any substrate.

The pull-out adhesion test determines the adhesion of the coating by measuring the pull-out force required to remove the dolly from the coating.

The KN-10 is a precision electronic instrument, with digital indicator, to carry out this test on paint coatings and galvanic layers and on building materials, using 20 and 50 mm diameter dollies, respectively.

It includes interesting applications such as adherence of paints and coatings on facades, the plaster work of interiors, tiles and stone treatments, it can also be used to accurately find out the suitability of pre-treatments, sufrace cleaning methods and products used.

Features:

Automatic calibration and scalling by microprocessor.

Scales or units: Kgf and Kg/cm2 (dollies 20 and 500 mm diameter)

Range de measurement: from 5 to 1,000 Kgf. (10KN. 300 Kg/cm2, 30 MPa)
