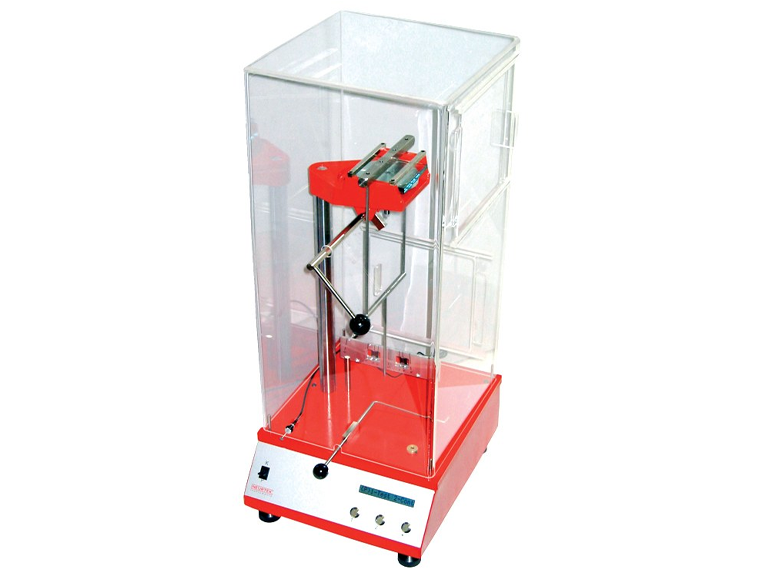

Thiết bị dụng cụ kiểm tra độ cứng màng sơn bằng con lắc Persoz & Konig Pendulum Hardness Tester

Thiết bị dụng cụ kiểm tra độ cứng màng sơn bằng con lắc Persoz & Konig Pendulum Hardness Tester hãng Neurtek intruments Việt Nam

Description

The hardness is measured by the number of oscillations that a pendulum makes between two predetermined angles. The angles are 12º for the Persoz test and 6º for the König test.

The device is provided with the Persoz system although it allows the incorporation of the König pendulum too. It is possible to work with both pendulums indistinctly with just a simple commutation in the electronic box of the control. The König pendulum is provided separately, although the device is programmed to work with both systems.

The system has a metacrilate box for draft protection and a remote control to start the test.

Application

Device developed for paints and inks superficial hardness measurement.

Standards

ISO 1522, DIN 53157, ASTM D 4366.

Main features

The hardness is measured by the number of oscillations that a pendulum makes between two predetermined angles. The angles are 12º for the

Persoz test and 6º for the König test.

The device is provided with the Persoz system although it allows the incorporation of the König pendulum too. It is possible to work with both

pendulums indistinctly with just a simple commutation in the electronic box of the control. The König pendulum is provided separately,

although the device is programmed to work with both systems.

The system has a metacrilate box for draft protection and a remote control to start the test.

Basic Equipment

The basic equipment includes the following elements:

Test basic equipment

Pendulum piece

Electronic cycle control

Release

Pattern glass

Methacrylate piece of furniture

Bubble level

Packaging

Operating instructions

How to order

0300110 Persoz Pendulum Hardness tester (Complete equipment)

0300120 König Pendulum (Complete equipment)

If you would like to add the optional system, please use the following reference:

0300111 König Pendulum piece kit

0300121 Persoz Pendulum piece k

Certificates

With SER-CT008 traceability:
