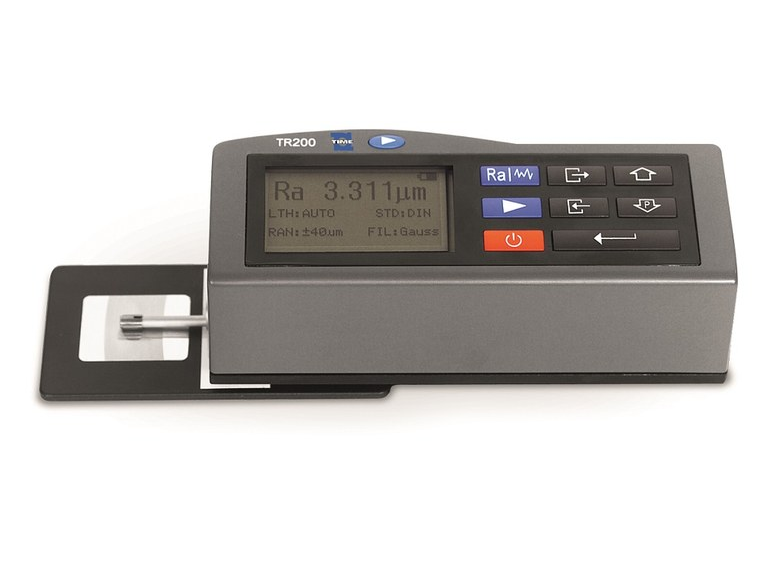

Thiết bị đo độ nhám bề mặt TR-200 - Surface Roughness Tester | Neurtek instruments

Roughness parameter Ra, Rz, Ry, Rq, Rt, Rp, Rmax, Rv, R3z, RS, RSm, RSk, Rmr, P

Assessed profiles Primary profile (P), Roughness profile (R), Tp curve (material ratio Mr)

Profile recording magnification Vv: 200x ~ 20000x , Vh: 20x, 50x, 200x

Standard Metric mm, imperial inch

Measuring system By force lever (600A)

Display resolution 0.001μm / 0.04 μinch

Display LCD 128 x 64 dot-matrix, with back-light

Dimensions LCD 50mm x 30mm screen)

Display features Detector stylus position indicator, battery level indicator, direct display of parameters and profiles, direct printing, LCD brightness adjustment, auto-off after 5 minutes with auto-store, calibration through software (each cut-off)

Display languages

English, German, French, Italian, Spanish, Dutch

Data output RS-232; direct to printer TA-230 or PC

Range Ra, Rq: 0.005 - 16μm Rz, Ry, Rp, Rt, R3z: 0.02 - 160μm RSm, RS: 2 - 4000μm Tp : 1-100% (% Ry)

Cut-off length 0.25mm / 0.8mm / 2.5mm

Evaluation length Ln 1~5 cut-off

Tracing length Lt (1~5 cut off) + 2 cut-off

Digital filter RC, PC-RC, GAUSS, D-P

Detector Standard model TS-100, Inductive, Diamond tip radius 5μm

Bores from diameter 6.0mm, depth 15mm (TS-100)

Power Li-ion battery rechargeable

Battery capacity 1000mAh (>3000 measurements)

Charger 220V, 50Hz

Operating temperature 0°C ~ 40°C

Dimensions unit 141mm x 56mm x 48mm

Weight 480gr
