Overview:

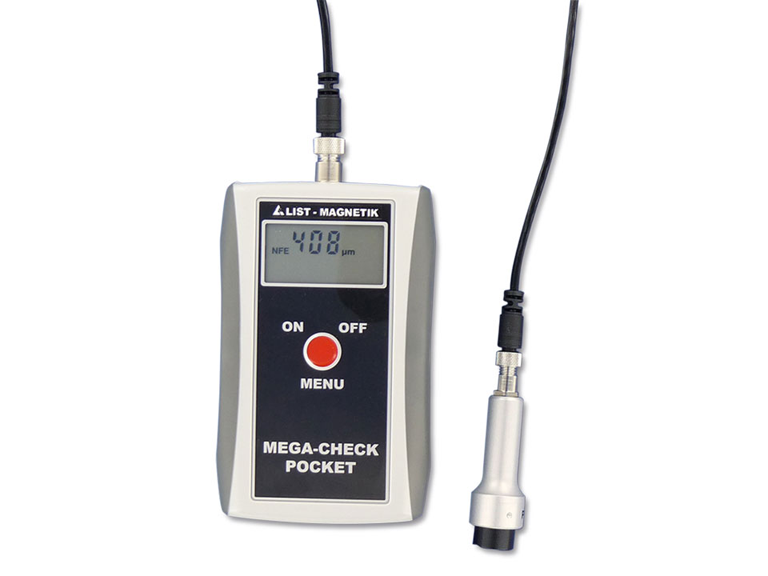

The new MEGA-CHECK Pocket coating thickness meters use digital measuring probes, in which the analog signals are digitised directly in the probe and transferred digitally via the probe cable to the measuring device.This new technology is very immune to interference and makes high accuracy, reproducible measurements possible.

The new MEGA-CHECK Pocket coating thickness meters use digital measuring probes, in which the analog signals are digitised directly in the probe and transferred digitally via the probe cable to the measuring device.

This new technology is very immune to interference and makes high accuracy, reproducible measurements possible.

The probe cable is connectable from both sides (control unit and probe) and therefore very servicefriendly, because just the cable needs to be replaced in case it gets broken. The housing, with its easy to handle format and rubber reinforced sides, is hardly bigger than the measuring probe.

For such new technology, these devices offer an excellent price-performance ratio.

What’s new is the simple operation of the devices with just one key, ideal for users, who don't require any documentation of the measurement data.

With the new type of ASR technology (Automatic Statistic Result - details see video clip), it is nevertheless possible to display the statistics of the last series of measurements. To do this the probe plug is simply disconnected from the device. After that the device is switched on again and the Min., Max. and Mean statistical values and Standard Deviation of the last series of measurements are displayed automatically in sequence.

ASR-technology (Automatic Statistic Result)

The following types are available:

MEGA-CHECK Pocket FE:

measures according to the magnetic induction technique non-conductive coatings (paint, varnish, plastics, rub-ber, ceramics) and galvanized films (except niquel) on iron and magnetic steel.

MEGA-CHECK Pocket FN:

includes both the magnetic induction and eddy current techniques with a dual-function probe. The following measurements can be performed:

On iron and magnetic steel all non-conductive coatings (paint, varnish, plastics, rubber, ceramics) and galvanized films (except niquel).

On non-ferrous metals (aluminium, bronze, brass, copper, non-magnetic steel) all non-conductive coatings (paint, varnish, plastics, anodizing on aluminium).
