Type of analyser

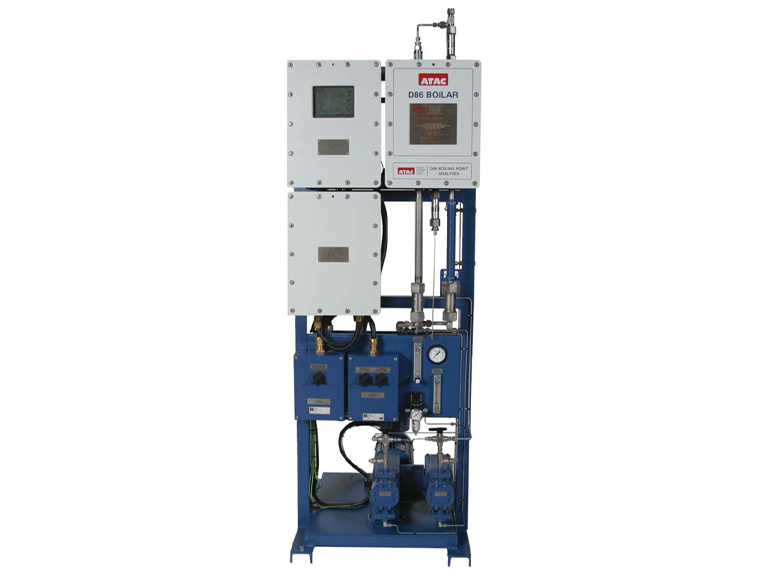

Continuous Single Point Distillation

Application

Boiling Point Calculated Cetane Index (optional, requires density input)

Analyser range

Temperature 50-400°C for 5%-95% distilled

Output scale

Minimum span 50°C within the above range

Repeatability

Better than ASTM / ISO test methods

Certification

ATEX certified to EN60079-0, 60079-1, 60079-7 and 60079-11

II 2G EEx d IIB T4 (IIB + H₂ option available)

EMC EN1326 LDV EN6101-1

Response time

Approximately 2 minutes

Local display

Colour LCD Display

Communications

4-20mA, RS232

Power supply

100 to 120 or 200 to 240Vac ± 10% 50/60Hz 1200VA maximum

Relays

NC contacts, each rated at 0.5A, for Fatal Alarm, Warning Alarm, Data Valid, Heater/Pump, Cal/Val in progress and External Alarms

Ambient temperature

5°-55°C

A weatherproof shelter with good illumination is strongly recommended. In cold climates, background heating may be necessary to avoid plugging of sample lines by heavier products.

Sample temperature

65°C maximum (must be at least 20ºC below the initial boiling point)

Sample pressure

1 barg minimum, 7 barg maximum. Sample drain must be to atmospheric pressure.

Dimensions

700mm (w) x 700mm (d) x 1800mm (h)

Utilities

Coolant - clean water at 0.5 litre/min is required at 25°C maximum and inlet pressure of 5 barg maximum, depending on application. On more volatile products, cooling water between 5°C and 10°C will be required.

Air - plant instrument air is required at 3 barg, 0.5 litre/min for high temperature analyser (diesel or heavy gas oil applications) measuring temperatures above 300°C.

Nitrogen - plant or bottle at 150-250 ml/min; 95% pure (optional).

Connections

Water: ¼” OD (inlet & outlet) Sample: OD

Nitrogen: OD Auto Cal/Validate: ¼” OD

Stream switching: two ¼” OD

Electrical: 1 x M20 * 1.5mm (power in), 2 x M20 * 1.5mm (signals & alarms)
