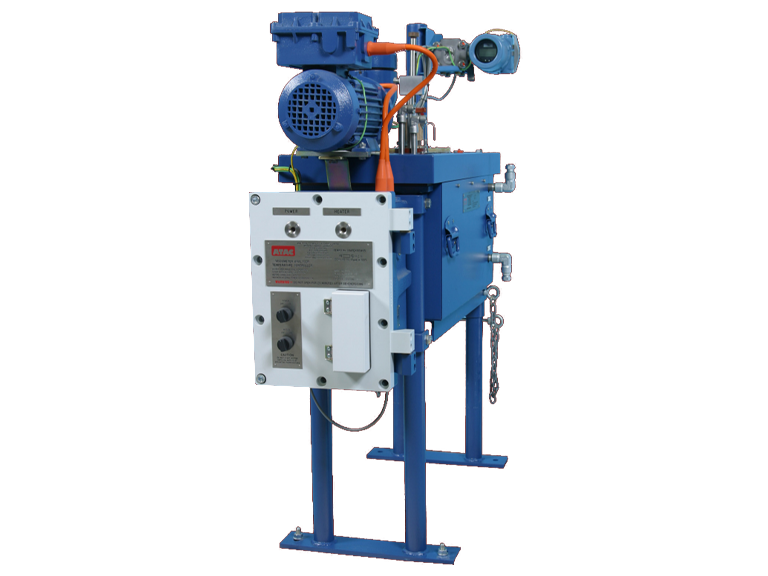

Configuration

Up to three wide bore capillary

Ranges

Minimum: 0-10CP - Maximum: 0-3500CP

Repeatability

+ 0.5% FS

Precision

±1% FS

Response time

30 seconds to 3 minutes, depending on sample temperature

Measurement temp.

Normally 40-150°C (100-300°F) but 170°C is available (see options)

Output signal

Range (depending on transmitter selected - see options): 4-20 mA fully isolated, loop powered or digital output. Out-of-service alarm contact signalling mains failure (or off) or bath temperature fuse blown.

Local display

0 - 100% linear scale on the transmitter

Temperature bath capacity

22 litres of oil

Use Shell Thermia B or equivalent oil. Normal maximum working temperature of bath is 170°C (protected by thermal fuse). Sample temperature at capillary outlet is measured by spirit-in-glass thermometer.

Cooling water

When sample is at high temperature relative to measuring temperature or when measurement temperature is low with respect to ambient temperature, a supply of cool, potable water (9-45 l/h) should be provided to carry away excess heat. The necessary coil is fitted as standard. If potable water is not available, alternative cooling coil materials can be provided.

Dimensions

Width 490 mm

Depth 1075 mm

Height 1270 mm

Weight 230 kg

Sample conditions required at inlet

Pressure: within range 0.7-21 bar g (10-305 psig) depending on viscosity of sample

Temperature: must be within +100°C (212°F) of the required measuring temperature

Flow: 60.7 ml/min (0.8 gal/h) when power supply frequency is 50 Hz and 72.8 ml/min (0.9 gal/h) at 60 Hz

Power supply

Voltage: 115V or 230V ±10% Frequency 50 or 60 Hz

Consumption: single phase 1.5 kVA or 2.0 KVA depending on specified measurement temperature

Connections

Sample:

1/4" NPT (female) inlet, 3/8" NPT (female) outlet

Cooling water

1/4" NPT (female) inlet, 1/4" NPT (female) outlet

Electrical

M25 (power), M20 (alarm)

Signal out

M20

Steam tracing

Model 1077 - steam at low pressure (1 bar max) required for samples having pour point above lowest ambient temperature. Connection is 1/4" o.d. compression. (see options)

Explosion Protection

ATEX certified for use in Zone 1 areas

II 2G EEx d e ia IIB T3-T4* (*Dependant on model) Certificate no. ITS09ATEX1654X

II 2G EEx d e ia IIB+H2 T3-T4* (*Dependant on model) Certificate no. ITS09ATEX1655X

Options

Local digital display/transmission of controlled bath temperature

Bath temperature (standard up to 110°C) up to 170°C

Environmental protection to IP65

ATEX IIB + H2 certification

Choice of pressure transmitter manufacturer;

Emerson Rosemount/Honeywell/Foxboro / Yokogawa Metric adaptors for end user connection if required

Steam tracing for Model 1077 (if required - see connections) Provision for secondary fast loop (for improved response times)
