Measuring Range

-42°C to +30°C (User Configurable)

Repeatability

+0.5°C

Cycle Time

4 to 8 Minutes Typical

Analogue Output

4 off 4-20mA fully isolated. Maximum Load Impedance 7000

Serial Output

Modbus RTU Over RS485 As Standard. All alarms, remote calibration and remote standby are available over Modbus. Full remote operation over LAN, Ethernet hardwired or via fibre optic cable are available as an option. Other protocols are available on request.

Alarm Contacts

2 sets of C/O voltage free alarm contacts rated 0.5A @ 250Vac and 1A @ 24Vdc are provided to notify common warning or fatal alarms.

Contact Inputs

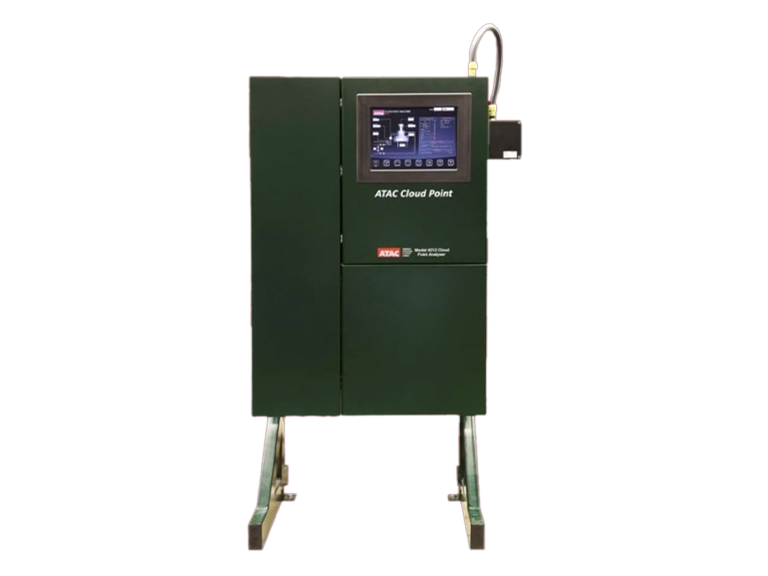

The Cloud Point can monitor 4 off customer external contacts (minimum rating 24V, 0.1A) These may be named by the customer and allocated into the warning or fatal alarm groups as required.

Sample Connections

Process & Calibration %" API Female

Drain & Vent

1/4" API Female

Signal & Power

M20

Mounting

Free standing as standard, wall mount frame option available.

Sample Pressure

0.5 to 2.5 barg

Sample Temperature

At least 14°C above the expected/last Cloud Point (User Configurable). Maximum 60°C. Sample temperature is continually monitored and sample is isolated if its temperature is too high.

Sample Flow (Normal Operation)

20 to 60 L/Hr free of dissolved water and entrained solids. Sample flow through analyser cell is continuously monitored

Sample Flow (Calibration)

Typically 1 to 2 litres per calibration cycle.

Sample Disposal

The analyser sample outlet must be connected to an atmospheric drain or sample recovery unit

Analyser Vent

The analyser vapour vent must be connected to atmosphere

Power Supply

100-240Vac 50/60Hz Maximum Load 500VA (Auto Sensing)

Instrument Air

Between 4 to 10 barg, dew point less than -20°C, flow 100 L/Min

Coolant Flow

Typically 30 L/Hr at a pressure of 5 barg maximum

Coolant Temperature

Depends upon cloud point. Typically a 50°C differential should exist between coolant temperature and lowest measurable cloud point. Coolant may be water, chilled glycol and water mix or the sample itself. Coolant temperature id constantly monitored.

Processor

Pentium M 1.6 GHz

Internal Memory

1024 MB

Hard Disk

60 GB HD

Ethernet

10/100Mbit EEx-e

Interfaces

1 x USB EEx-E, 4 x USB EEx-I, 1 x RS232 EEX-1 & 1 x RS485 EEX-e

Analogue Resolution

16 Bits

Operating Temperature

-5°C to +50°C

IP Rating

IP55 (Front Screen IP66)

Humidity

10-95% (Non Condensing)

Certification

The Cloud Point is suitable for Zone 1 (Div 1) areas, and is certified to ATEX II 2(1) G Ex d px [ia] [p] IIC T4 and also

IECEx Ex d px [ia] [p] IIC T4 Gb. Equivalent to Class 1 Div 1 Groups A, B, C & D.

HMI

Intrinsically safe TFT touch screen display, integral to control unit, with a 15.1” screen and glass front with an antireflective chemical coating. XGA resolution (1024 x 768 Pixel). Multi-language capability.
