Overview:

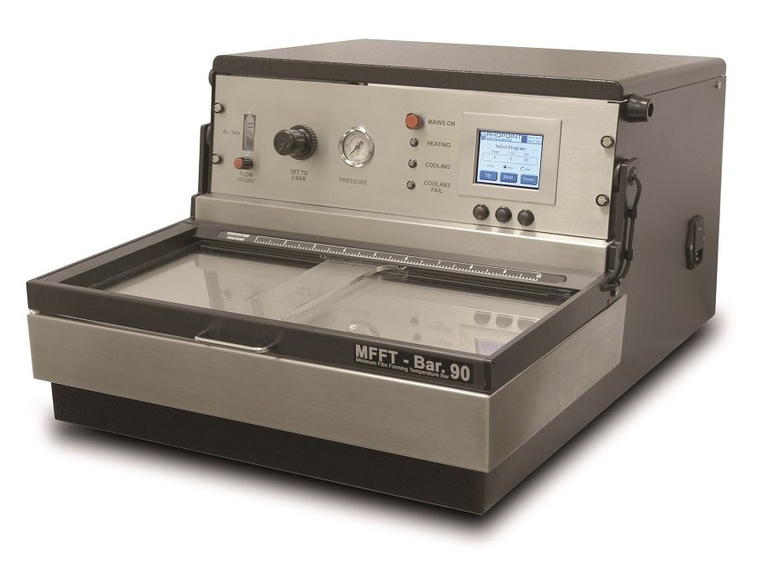

The Rhopoint MFFT is the industry leading instrument for measuring the minimum film forming temperature of water based materials. Definition - “MFFT is the lowest temperature at which a latex, emulsion or adhesive will uniformly coalesce when laid on a substrate as a thin film.” An accurate MFFT value allows the formulation of products that cure correctly under specified application conditions

The Rhopoint MFFT works by holding a very accurate temperature gradient across a nickel plated copper platen. A flow of dried air across the platen stops condensation forming and gives repeatable test conditions.

Determines the MFFT of latex, emulsions and adhesives

MFFT90 measures between -5º and 90ºC

Designed to conform to ISO 2115 and ASTM 2354

Specification:

Paints and Coatings

The minimum film-forming temperature (MFFT) of a paint or coating is the lowest temperature at which it will uniformly coalesce when laid on a substrate as a thin film. The standard test for determining this temperature involves using a MFFT-BAR, as specified by such standards as ASTM D 2354 and ISO 2115. The design of the Rhopoint instrument is based directly on these standards.

Adhesives

The MFFT of one-pack adhesives can be found in a similar way to paints and coatings. With two-pack adhesives, a strip of aluminium foil can be laid on the platen, to ease cleaning, before applying the adhesive. Two-pack adhesives do not show an MFFT, but the minimum cure temperature can be found by scraping the sample with a spatula

Features:

Determines the MFFT of latex, emulsions and adhesives

Easy to use touch screen programme control

Nickel plated copper platen with an electronically imposed temperature gradient

Optional results printer for printing date and time stamped MFFT results -5˚C to 90˚C operation
