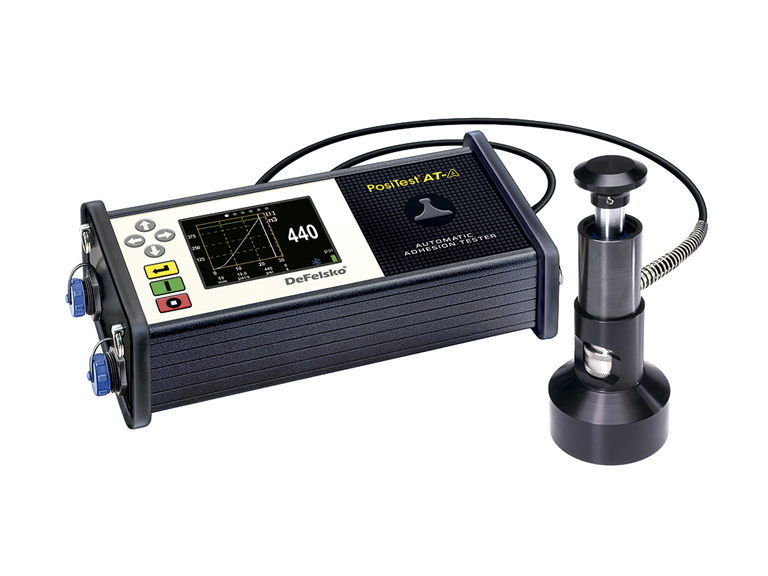

Pull-off adhesion tester. With electronically controlled hydraulic pump. Measures adhesion of coatings to metal, wood, concrete and other rigid substrates.

Electronically controlled hydraulic pump automatically applies smooth and continuous pull-off pressure. Greatly reduces user effort and the risk of influencing the pulling process.

User adjustable pull rate, pull limit and hold time.

Internal memory stores maximum pull-off pressure, rate of pull, test duration, dolly size, pass/fail, nature of fracture and user notes for 100,000 pulls in up to 1,000 batches.

Impact and scratch resistant color touch screen with keypad for operation with or without gloves.

Built-in rechargeable battery performs over 200 tests per charge. Continue testing with AC power while the battery recharges.

Environmentally sealed enclosure – weatherproof, dustproof and shockproof - meets or exceeds IP65.

Rubberized, shock absorbing grips provide a stable, skid-resistant footing.

Self-aligning aluminum dolly enables accurate measurements on smooth or uneven surfaces.

10, 14, 20 or 50mm dollies maximize capability and measurement resolution across a wide range of bond strengths. Maximum pull-off pressure by dolly size...

- 10 mm: 14000 psi (96 MPa)

- 14 mm: 7000 psi (50 MPa)

- 20 mm: 3500 psi (24 MPa)

- 50 mm: 560 psi (3.8 MPa)

User selectable measurement units: psi (pounds per square inch), MPa (Megapascal), Nmm2 (Newtons per millimeter square) or Newton (force).

User adjustable pull rate, pull limit and hold time.

Rotating display for horizontal and vertical use.

Pressure system is calibrated and certified to ± 1% accuracy using a NIST traceable load cell.

Conforms to international standards including ASTM D4541/D7234, ISO 4624/16276-1, AS/NZS 1580.408.5 and others.

Software Updates via web keep your instrument current.

Compatible with PosiSoft Desktop, PosiSoft.net and PosiTector App (Apple iOS and Android).

Option:
