Gage Selection Standard

Gage Selection advanced

Monochrome display with transflective technology enhances viewability in direct sunlight.

- Storage of 250 readings in one group – stored readings can be viewed or downloaded.

- Hi Contrast reversible color LCD

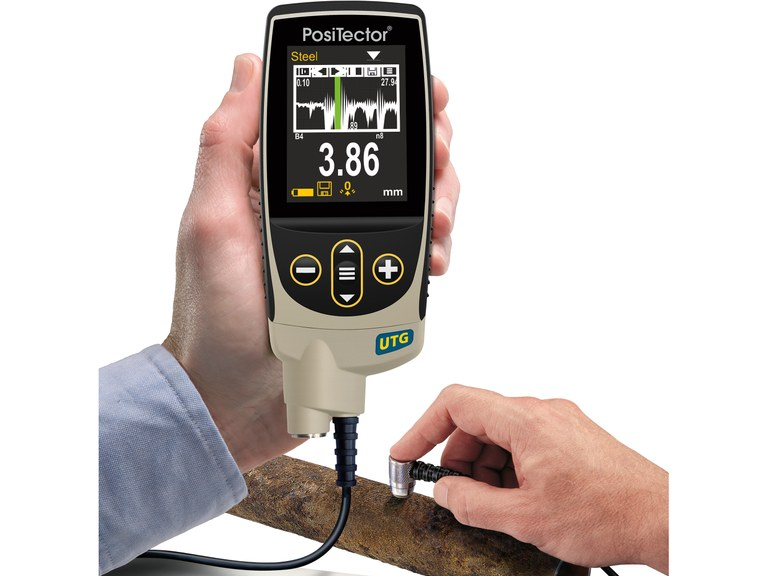

- A-Scan with adjustable Gain and screen capture for further analysis and documentation.

- B-Scan - displays a cross sectional profile of the test material

- Storage of 100,000 readings in up to 1,000 batches and sub-batches

- Store thickness, profile and environmental measurements in individual batches

- Onscreen Batch Annotation -add notes, change batch names, and more with the new built‐in QWERTY keyboard

- Wireless Technology for data transfer to a computer or optional portable printer.

Onscreen help, Real time graphing, picture prompting, and more . . .

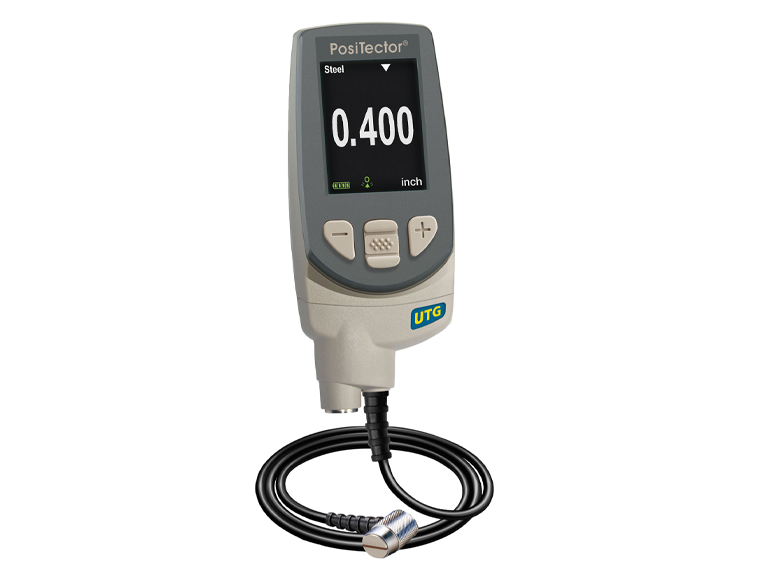

UTG C - Corrosion

Measures the wall thickness of materials such as steel, plastic and more. Ideal for measuring the effects of corrosion or erosion on tanks, pipes, or any structure where access is limited to one side

UTG M - Multiple-Echo

Features Thru‐Paint capability to quickly and accurately measure the metal thickness of a painted structure without having to remove the coating. The most accurate method to measure the remaining wall thickness of a painted structure because it automatically disregards the coating, lowering inspection time and expense. Also ideal for measuring on sandblasted materials or other applications requiring a durable wear face.

5 MHz dual element transducer with wear resistant PEEK probe tip Automatic V-Path compensation for thin materials

5MHz contact probe with wear resistant Alumina probe tip
Multiple Echo technique averages 3 or more echoes for accurate and reliable readings
Most accurate method to measure remaining wall thickness of a painted structure because it automatically disregards the coating, lowering inspection time and expense.
Toggle easily between..
–Multiple Echo mode to eliminate coating thickness, and...
–Single Echo mode to detect pits and flaws, and to increase the measurement range

Dual Element: 5 MHz

Contact: 5 MHz

Thru-Paint Capability (Multiple Echo): No

Thru-Paint Capability (Multiple Echo): Yes

Measurement Range*:

-Single Echo 1.00 to 125.00 mm

-Multiple Echo NA

Measurement Range*:

-Single Echo 2.50 to 125.00 mm

-Multiple Echo 2.50 to 60.00 mm

Resolution : 0.01 mm

Resolution : 0.01 mm

Accuracy: ±0.03 mm

Accuracy: ±0.03 mm

Referencia

Description

Quotation Request

DEF-UTGC1

Ultrasonic wall thickness gauge Positector UTG C1, Corrosion probe, standard Cabled probe Range from 1 to 125mm resol. 0.01mm acc. +/-0.03mm

DEF-UTGC3

Ultrasonic wall thickness gauge Positector UTG C3, Corrosion probe, advanced from 1 to 125mm resol. 0.01mm acc. +/-0.03mm

DEF-UTGCX1

Ultrasonic wall thickness gauge Positector UTG CX1, Extreme Probe, with stainless steel cable

DEF-UTGCX3

Ultrasonic wall thickness gauge Positector UTG CX3, Extreme Probe, with stainless steel cable

DEF-UTGCA1

Ultrasonic wall thickness gauge Positector UTG CA1, Corrosion probe, standard With built in probe from 1 to 125mm resol. 0.01mm acc. +/-0.03mm

DEF-UTGCA3

Ultrasonic wall thickness gauge Positector UTG CA3, Corrosion probe, Advanced With built in probe from 1 to 125mm resol. 0.01mm acc. +/-0.03mm

DEF-UTGCLF1

DEF-UTGCLF3

DEF-UTGM1

Ultrasonic wall thickness gauge Positector UTG M1, multi-echo probe, standard single echo 2.50 to 125mm muliple echo 2.50 to 60mm resol. 0.01mm acc. +/-0.03mm

DEF-UTGM3

Ultrasonic wall thickness gauge Positector UTG M3, multi-echo probe, advanced single echo 2.50 to 125mm muliple echo 2.50 to 60mm resol. 0.01mm acc. +/-0.03mm

DEF-UTGP1

Ultrasonic wall thickness gauge Positector UTG P1 Precision multi-echo probe, standard 15 MHz A-Scan Range Steel: 0.2 to 12mm Plastic: 0.125 to 4.5mm

DEF-UTGP3
