Model

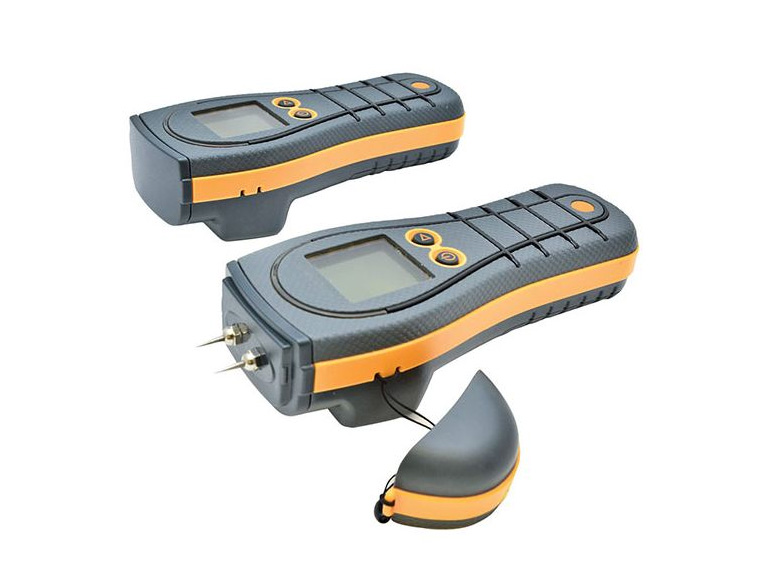

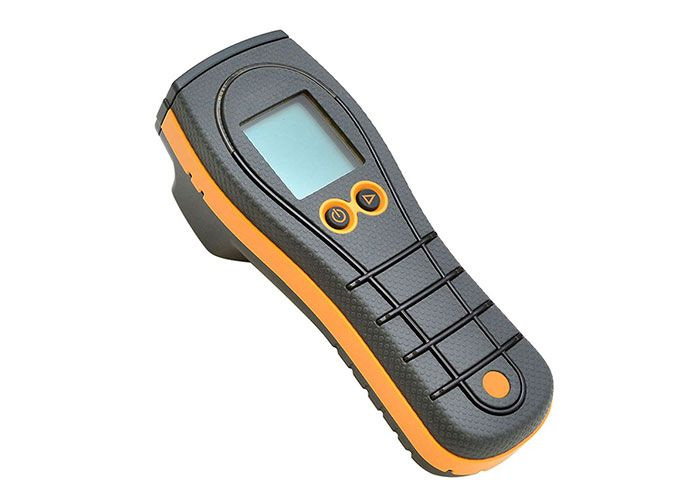

Elcometer 7000S Concrete Moisture Meter

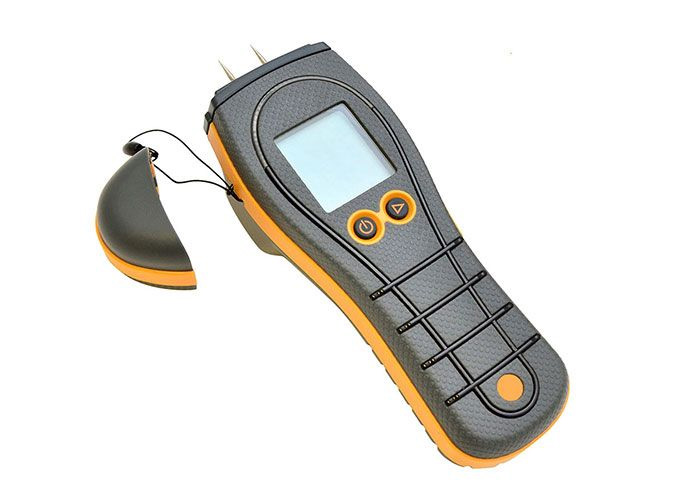

Elcometer 7000PS Digital Moisture Meter

Certificate

Part Number

G7000S

G7000PS

Measuring Range

70 to 999 relative (non-invasive)
Dry (green); 70 – 169
At risk (yellow); 170 – 199
Wet (red); 200 - 999

70 to 999 relative (non-invasive)
Dry (green); 70 - 169
At risk (yellow); 170 - 199
Wet (red); 200 - 999
7.9% to 99% WME (pin measurement)
Dry (green); 7 - 16.9
At Risk (yellow); 17 - 19.9
Wet (red); 20 - 99.9

Measurement Depth

Non-invasive up to 19mm (¾")

Non-invasive up to 19mm (¾")
Pin up to 12.7mm (½")

Display

LCD Display with separate colour indicators

LCD Display with separate colour indicators

Dimensions

175 x 48 x 50mm (7.0 x 1.9 x 2.0")

190 x 70 x 49mm (7.5 x 2.75 x 1.9")

Weight

195g (7oz)

225g (8oz)

Power Supply

9V battery (~ 20 hours continuous use)

Packing List

Elcometer 7000 Moisture Meter, HD MC probe (Model PS), Deep Wall probe 127mm (5") (Model PS), pin calibration check (Model PS), wood calibration chart (Model PS), battery, carry case and operating instructions
