Đầu dò máy đo độ dày lớp phủ Elcometer 456

Giá: Liên hệ

Còn hàng Mã SP: Elcometer 456

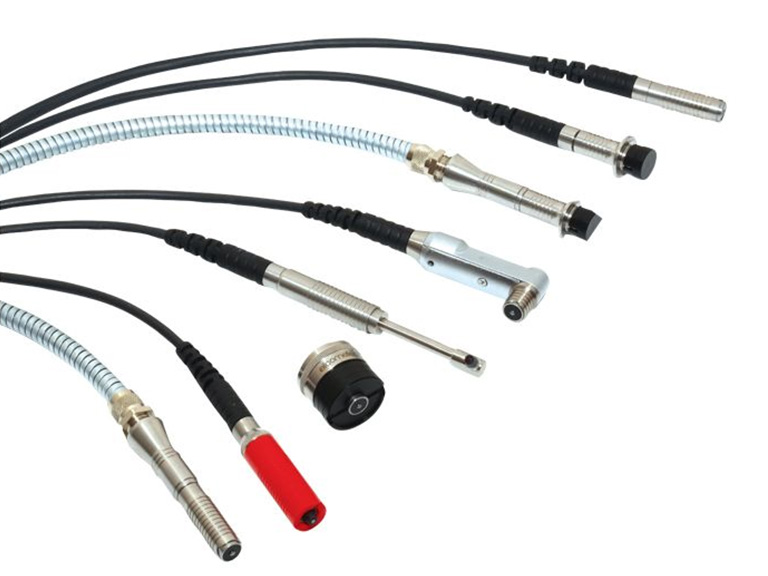

Đầu dò máy đo độ dày lớp phủ Elcometer 456

Tên tiếng anh: Elcometer 456 Coating Thickness Gauge Probe Range

Hãng: Elcometer

Xuất xứ: Anh (UK)

Tổng quan:

Tất cả các đầu dò Máy đo độ dày lớp phủ Elcometer 456 đều có thể hoán đổi cho nhau hoàn toàn và có sẵn ở một số thiết kế và phạm vi tỷ lệ để đáp ứng ứng dụng cụ thể của bạn.

Đầu dò đo độ dày lớp phủ sắt đo lớp phủ không từ tính trên nền sắt từ. Máy đo độ dày lớp phủ Elcometer 456 chấp nhận mọi đầu dò kim loại.

Đầu dò đo độ dày lớp phủ kim loại màu đo lớp phủ không dẫn điện trên nền kim loại màu và máy đo kim loại màu Elcometer 456 chấp nhận mọi đầu dò kim loại màu.

Đầu dò FNF kép đo cả ứng dụng kim loại màu và kim loại màu với khả năng phát hiện chất nền tự động. Máy đo độ dày lớp phủ Elcometer 456 FNF chấp nhận tất cả các đầu dò FNF kim loại màu, kim loại màu và kép.

Tính năng nổi bật:

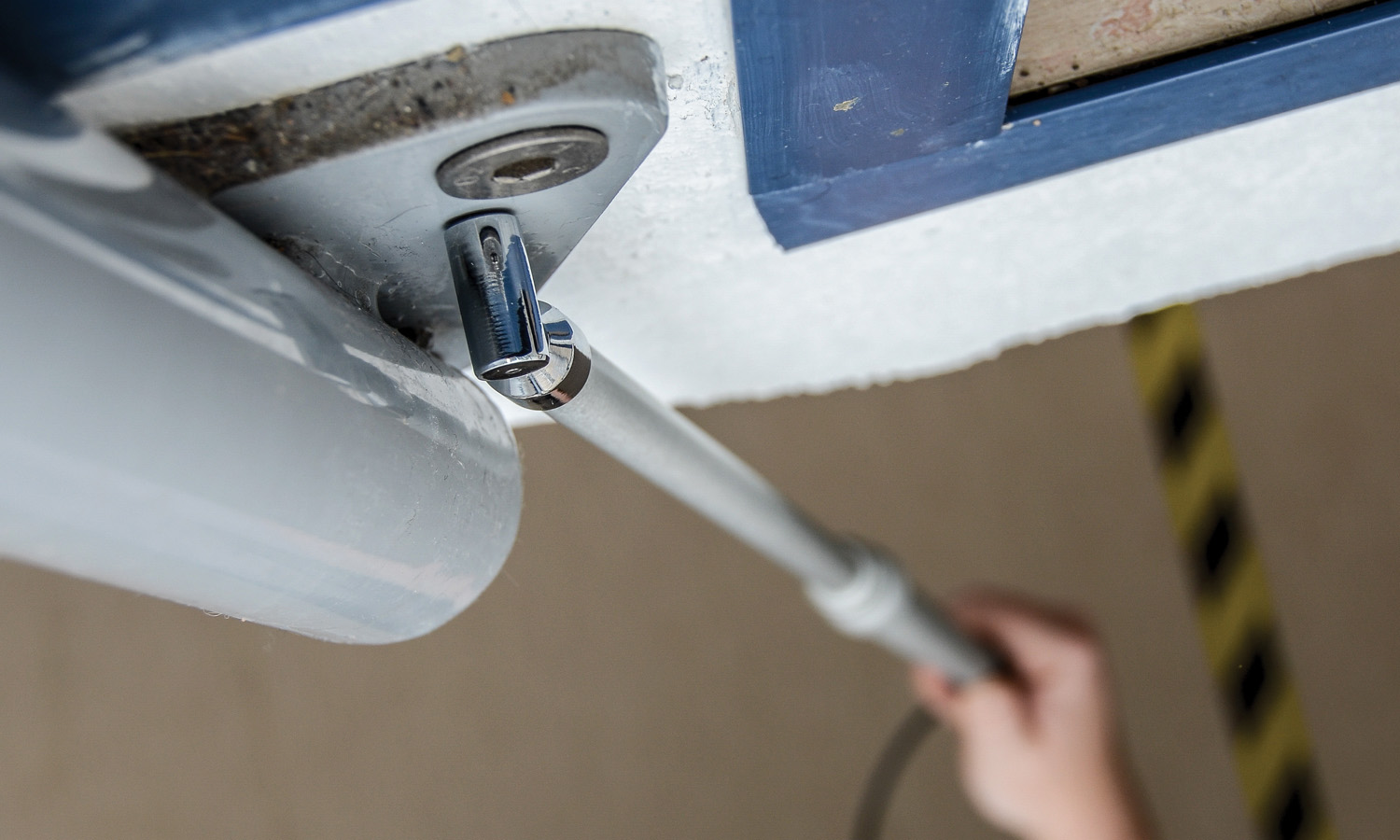

Đầu dò từ tính (F) Đầu dò sắt đo lớp phủ không từ tính trên nền sắt từ Đồng hồ đo sắt Elcometer 456 chấp nhận mọi đầu dò sắt
	Đầu dò không từ tính (N) Đầu dò kim loại màu đo lớp phủ không dẫn điện trên nền kim loại màu Đồng hồ đo kim loại màu Elcometer 456 chấp nhận mọi đầu dò kim loại màu

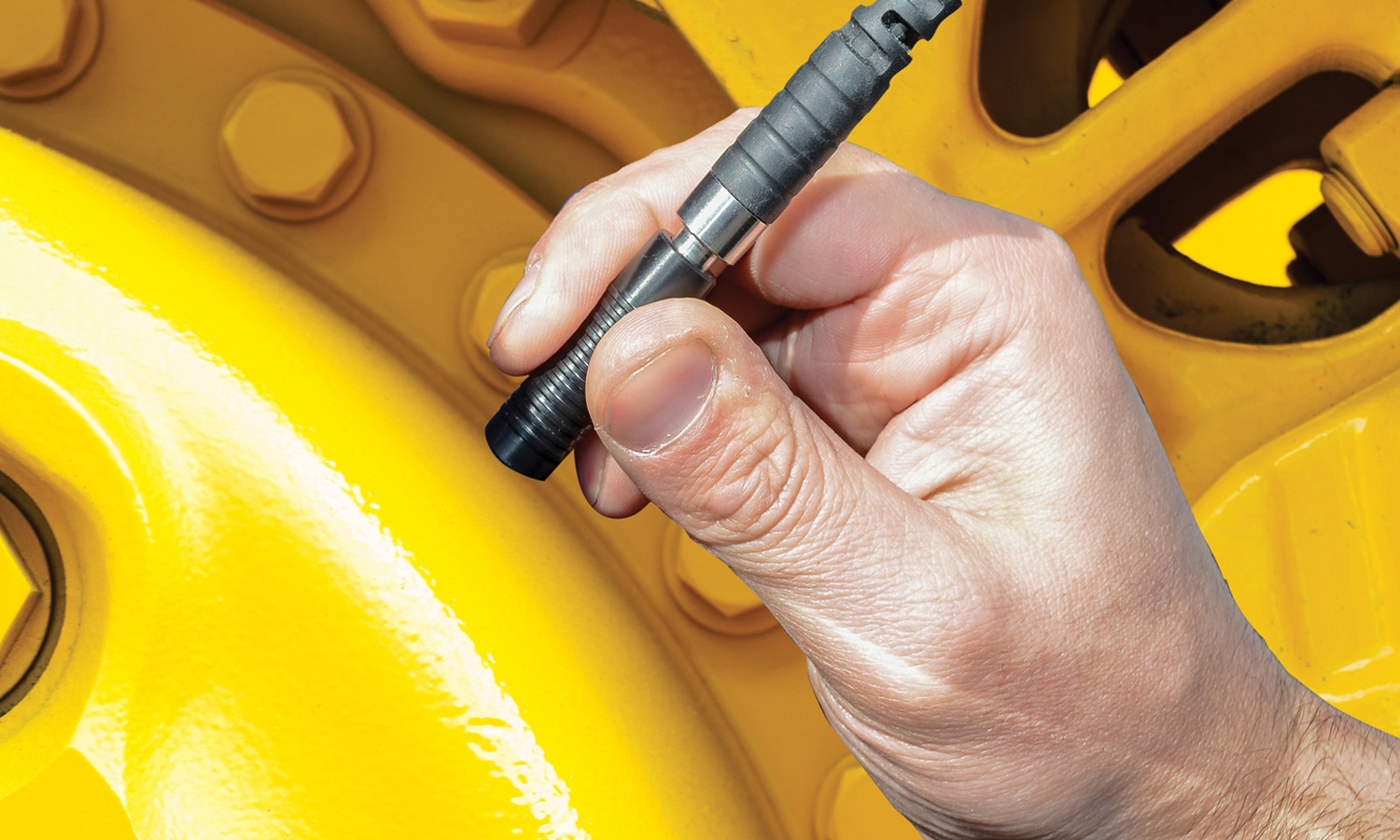

Đầu dò kép (FNF) Đầu dò FNF kép đo cả ứng dụng kim loại màu và kim loại màu với khả năng phát hiện chất nền tự động Máy đo Elcometer 456 FNF chấp nhận tất cả các đầu dò FNF kim loại màu, kim loại màu và kép
	Đầu dò nhiệt độ cao Đầu dò Elcometer có nhiệt độ hoạt động tối đa là 80°C (176°F)* Các đầu dò kim loại màu riêng biệt có nhiệt độ hoạt động tối đa là 150°C (300°F)* PINIP™ nhiệt độ cao có nhiệt độ hoạt động tối đa là 250°C (480°F)* *Nhiệt độ đã nêu là nhiệt độ bề mặt và chu kỳ hoạt động của đầu dò phải được giảm xuống để đảm bảo nhiệt độ tích tụ ở mức tối thiểu bên trong đầu dò.

Các tính năng chính:

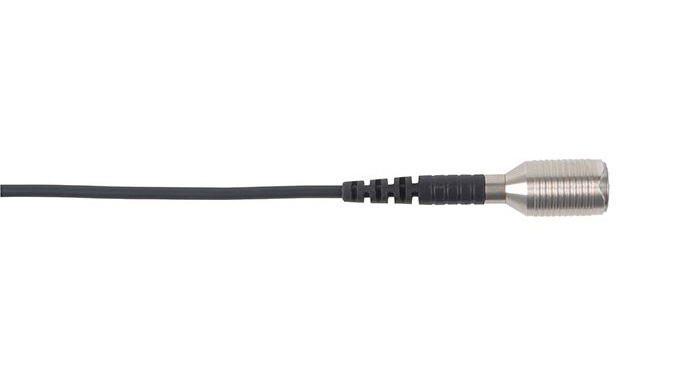

Đầu dò thẳng

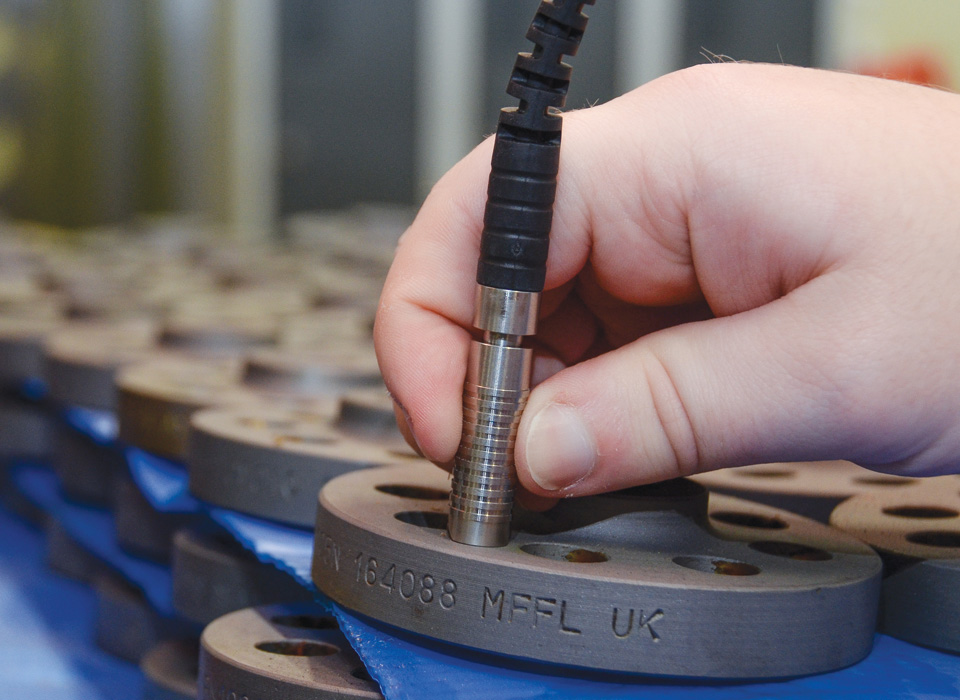

Đầu dò thẳng tiêu chuẩn

Đầu dò thẳng tiêu chuẩn

Đầu dò tiêu chuẩn đo lớp phủ trên cả bề mặt phẳng và cong.

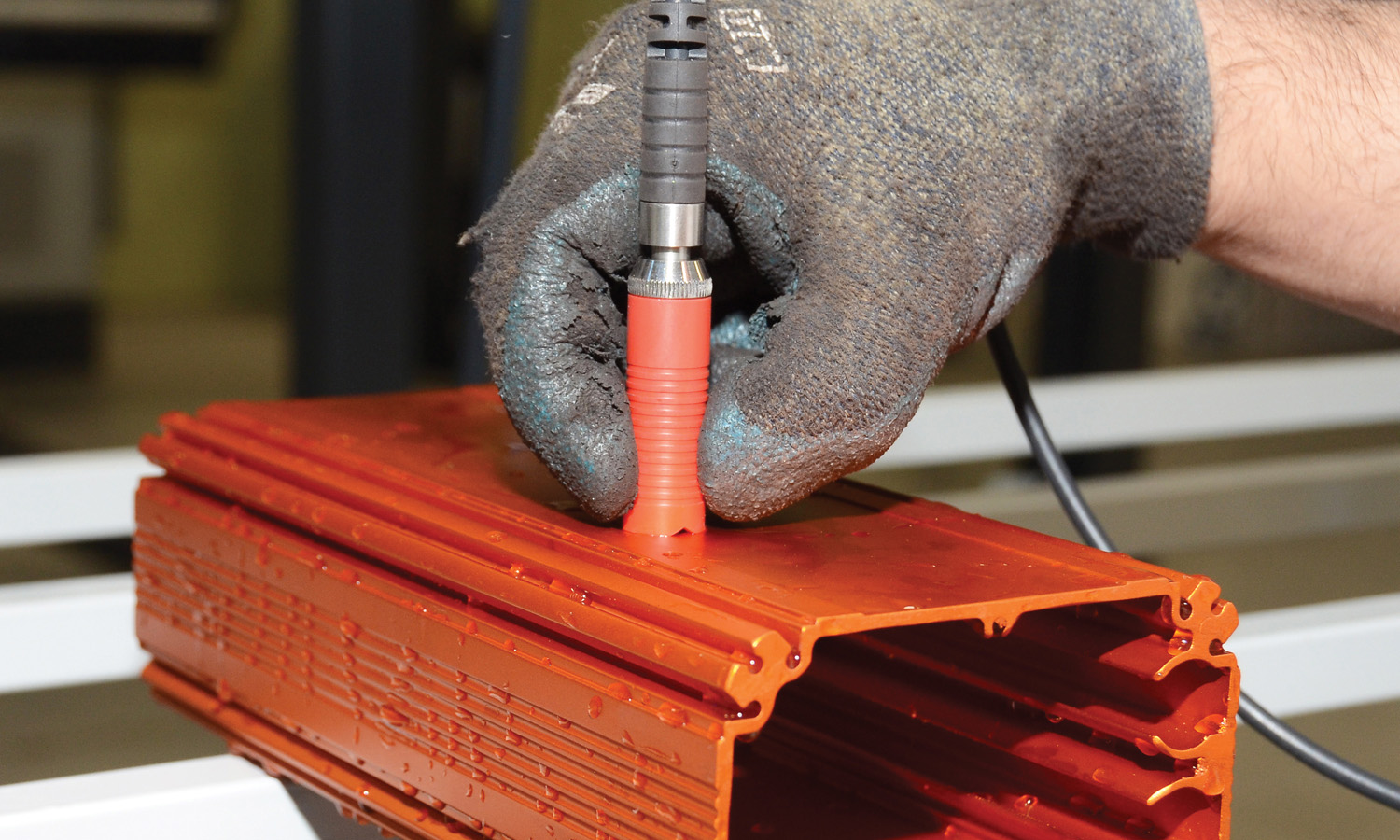

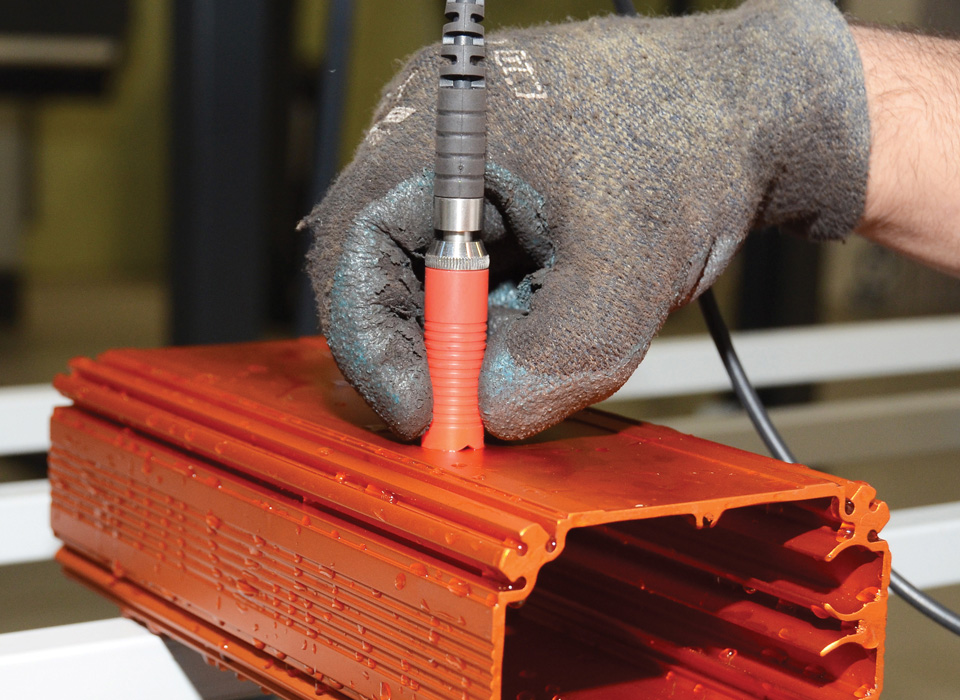

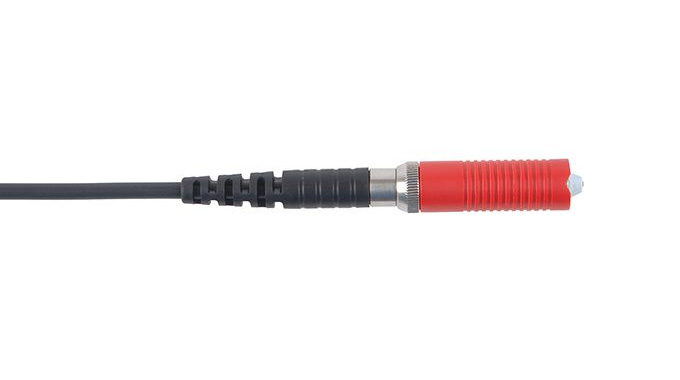

Đầu dò anodising

Đầu dò thẳng anodising

Chịu được hóa chất và có thể giặt được - lý tưởng cho môi trường anodising.

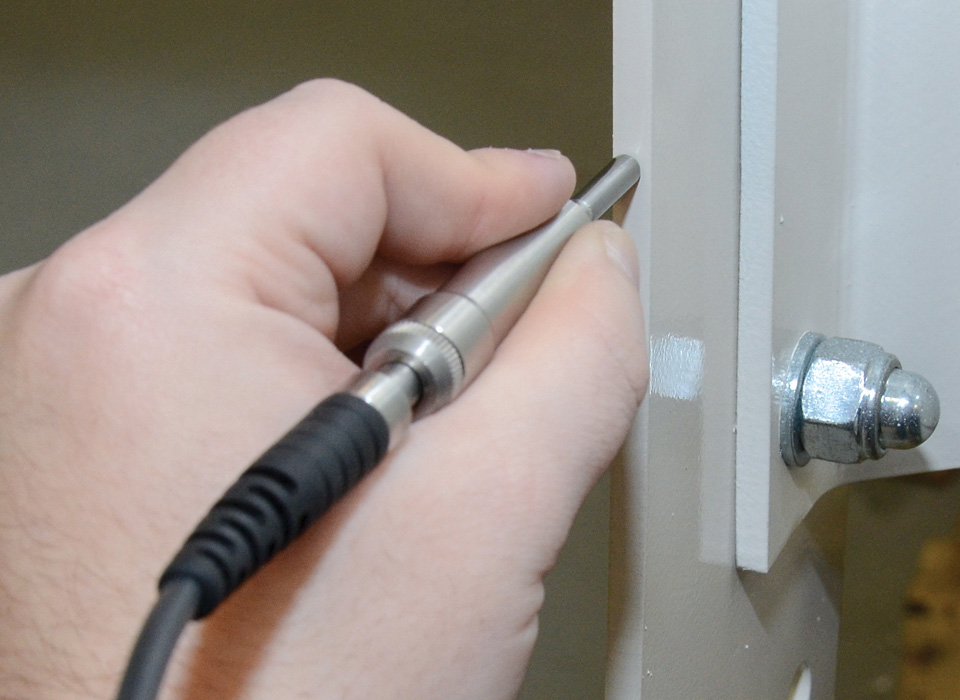

Đầu dò thẳng mini

Đầu dò thẳng mini

Đầu dò mini lý tưởng cho các khu vực và cạnh khó tiếp cận hơn.

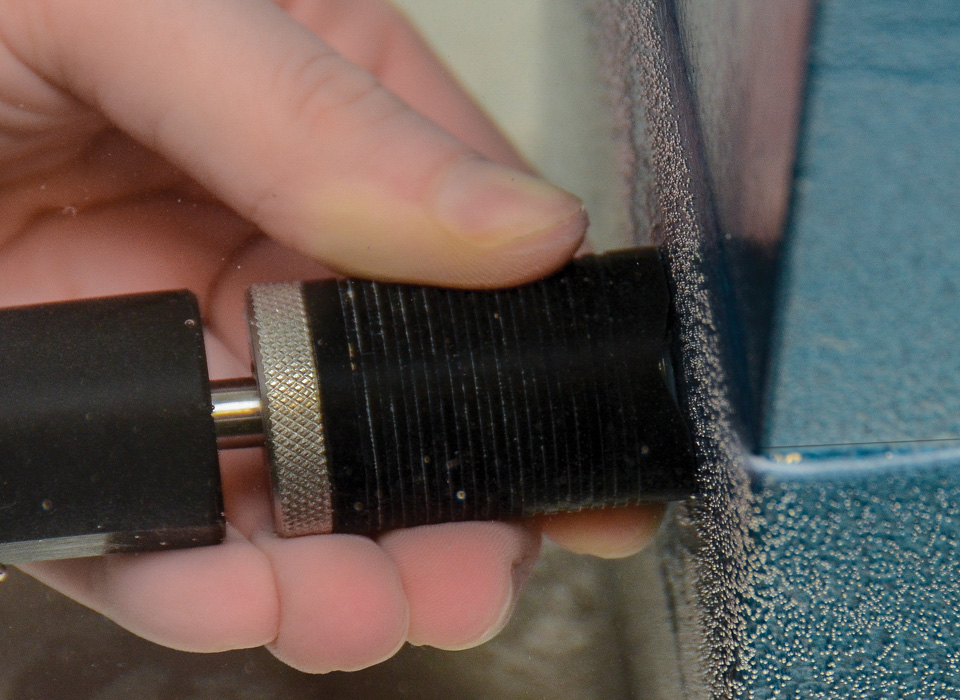

Đầu dò thẳng chống nước

Đầu dò thẳng chống nước

Được niêm phong để sử dụng dưới nước ở độ sâu, ngay cả trong găng tay lặn.

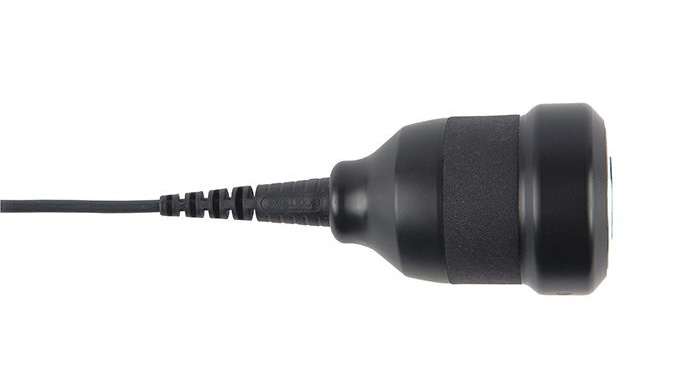

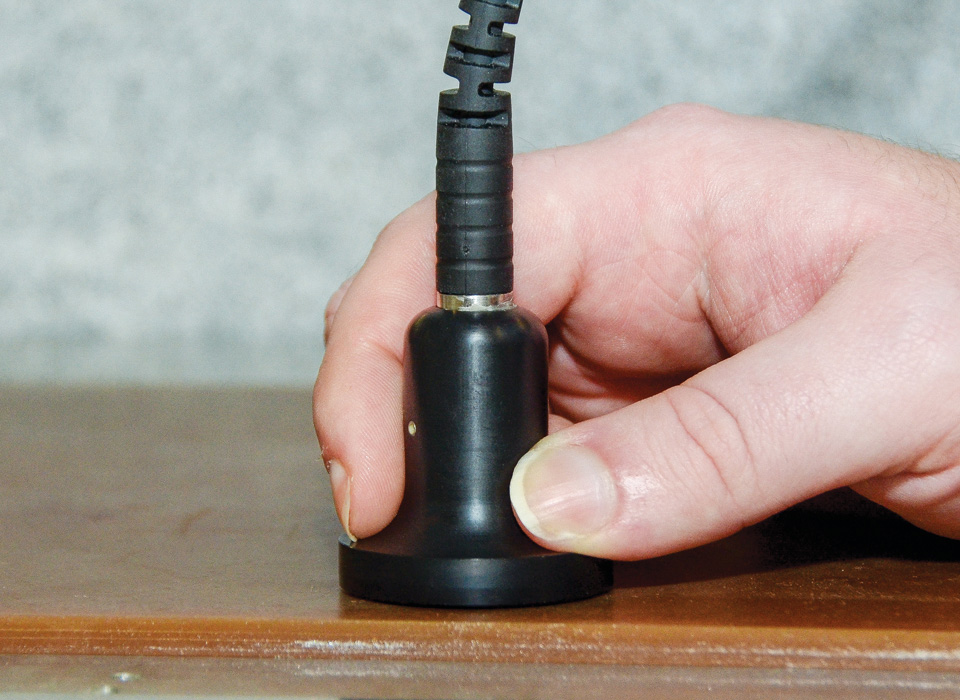

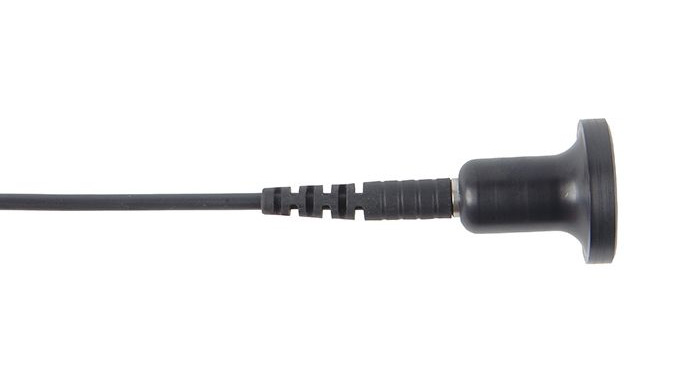

Đầu dò thẳng lớp phủ mềm

Đầu dò thẳng lớp phủ mềm

Đầu dò diện tích bề mặt lớn dành cho vật liệu mềm (được HVCA phê duyệt).

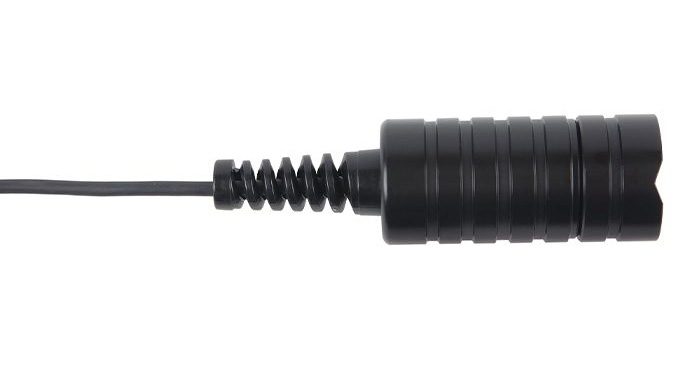

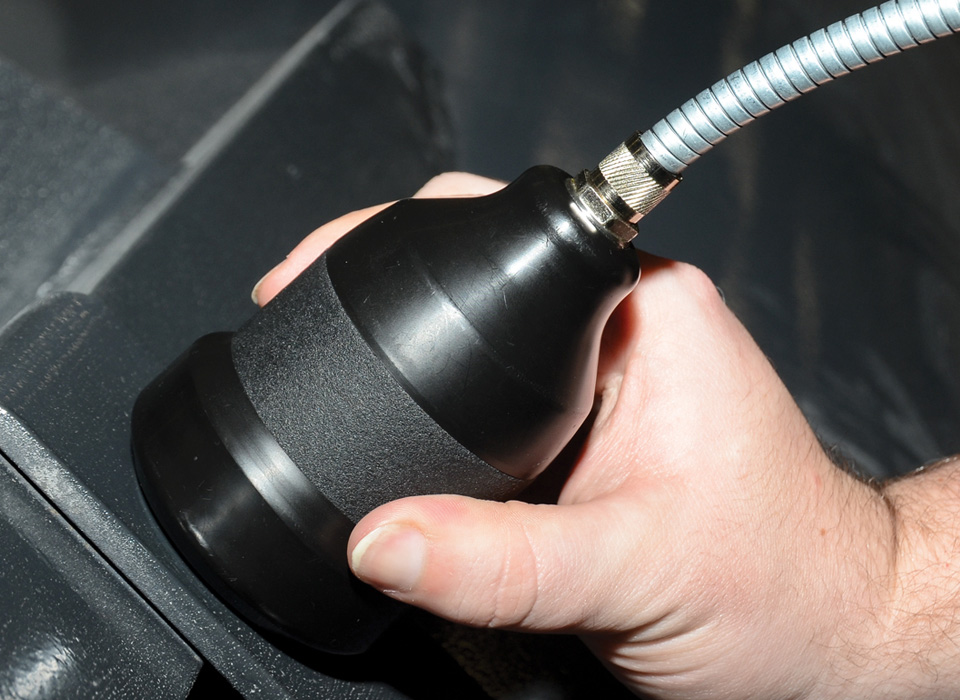

Đầu dò thẳng lớp phủ dày

Đầu dò thẳng lớp phủ dày

Lý tưởng để đo lớp phủ dày tới 31mm.

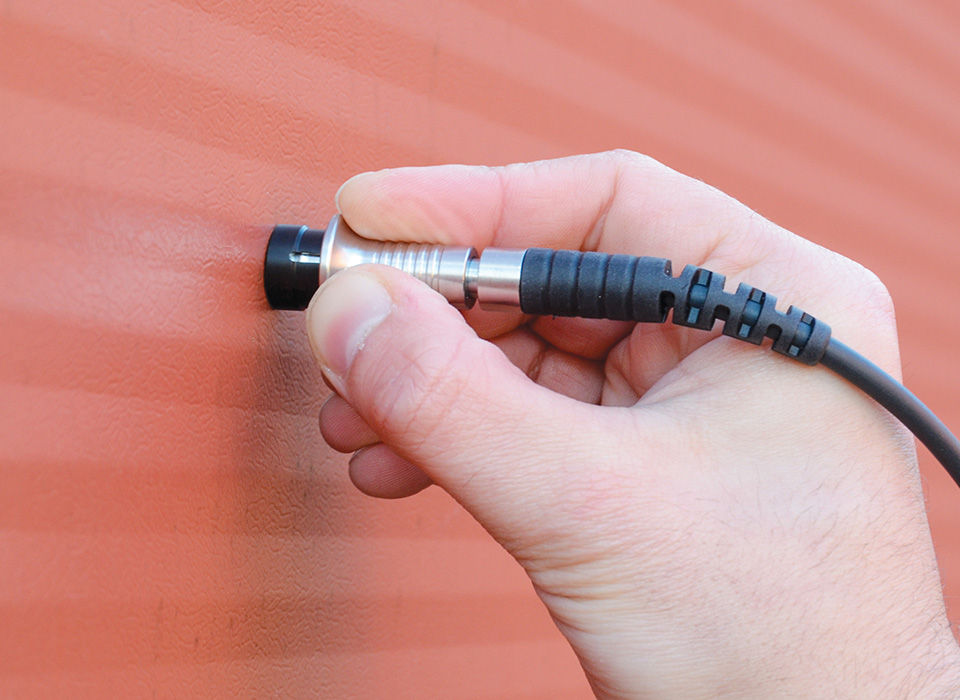

Đầu dò quét

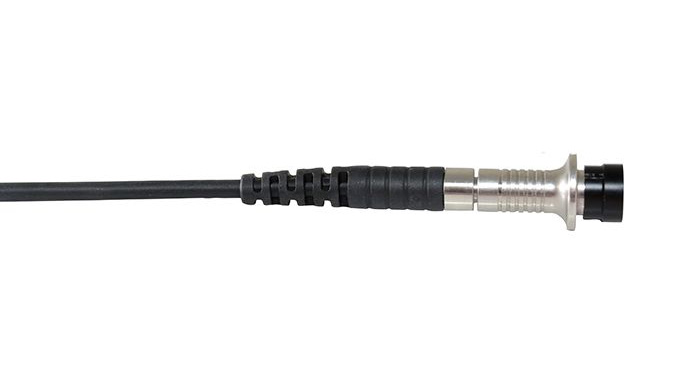

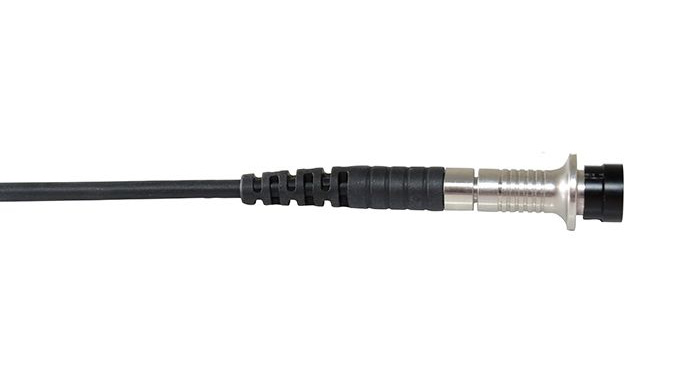

Đầu dò quét tiêu chuẩn

Đầu dò quét tiêu chuẩn

Quét nhanh các diện tích bề mặt lớn mà không làm hỏng đầu dò hoặc lớp phủ.

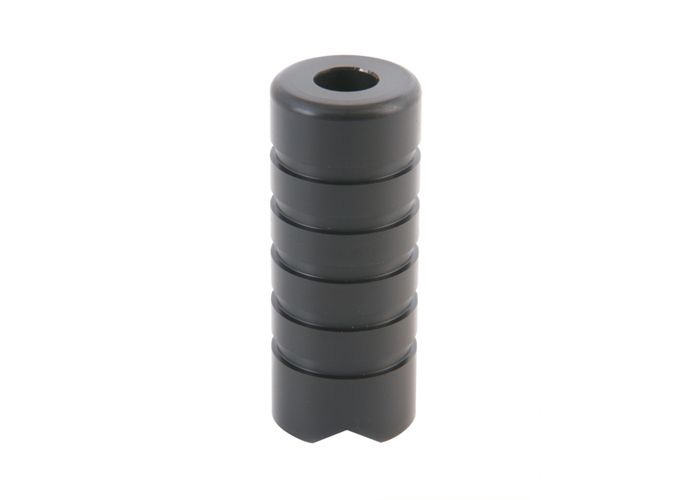

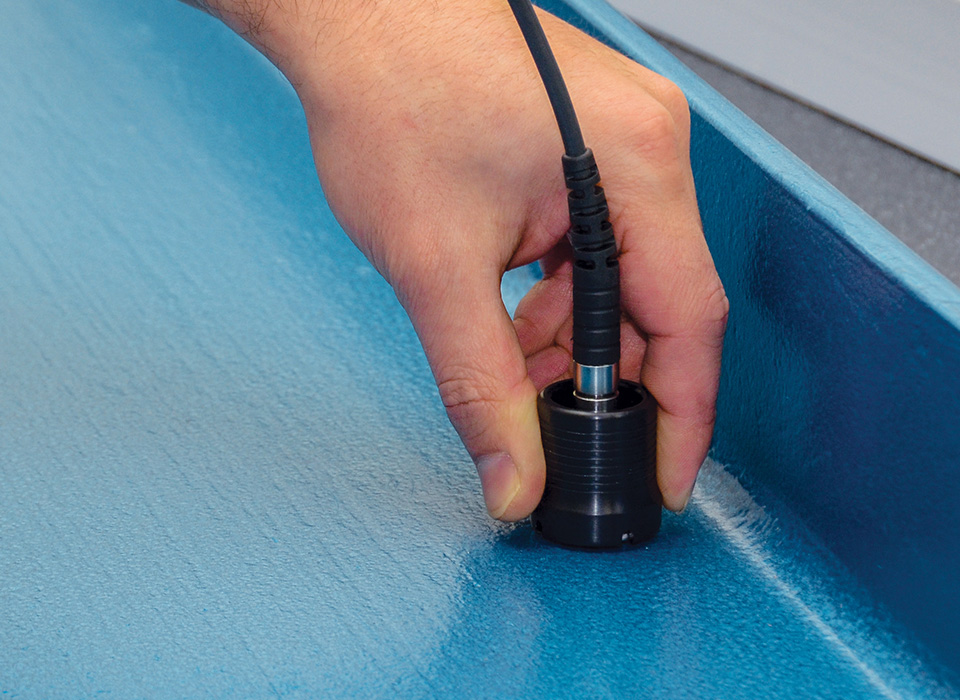

Đầu dò quét vòng bi

Đầu dò quét vòng bi*

Kẹp trên bộ điều hợp dành cho các kết cấu được phủ lớn, lớp phủ chịu mài mòn và lớp sơn lót trước khi thi công.

Đầu dò góc

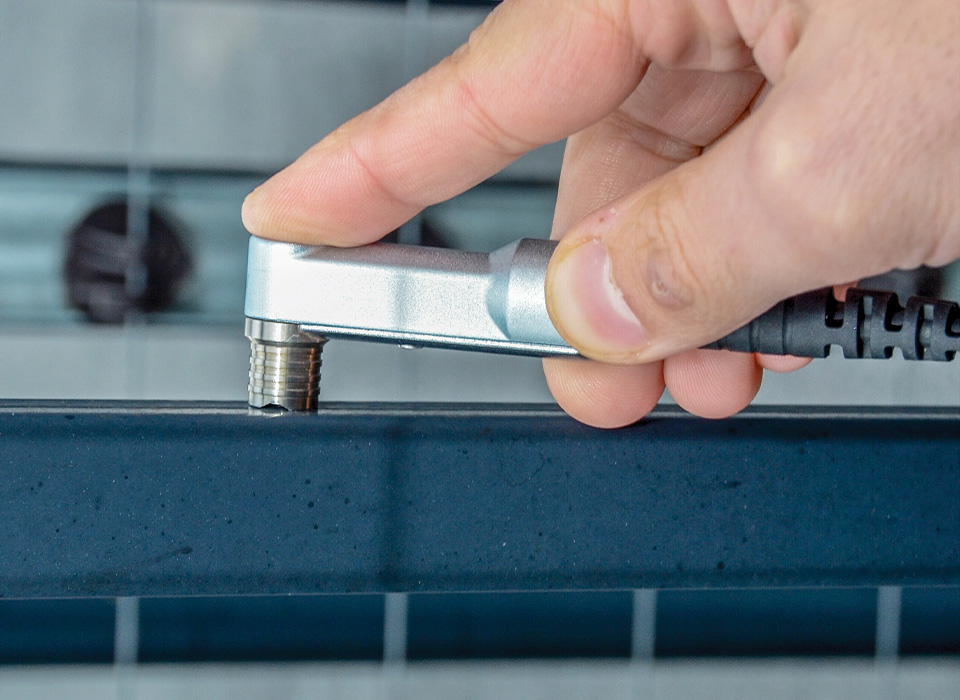

Đầu dò góc phải

Đầu dò góc phải

Đo ở những khu vực có khoảng trống hạn chế.

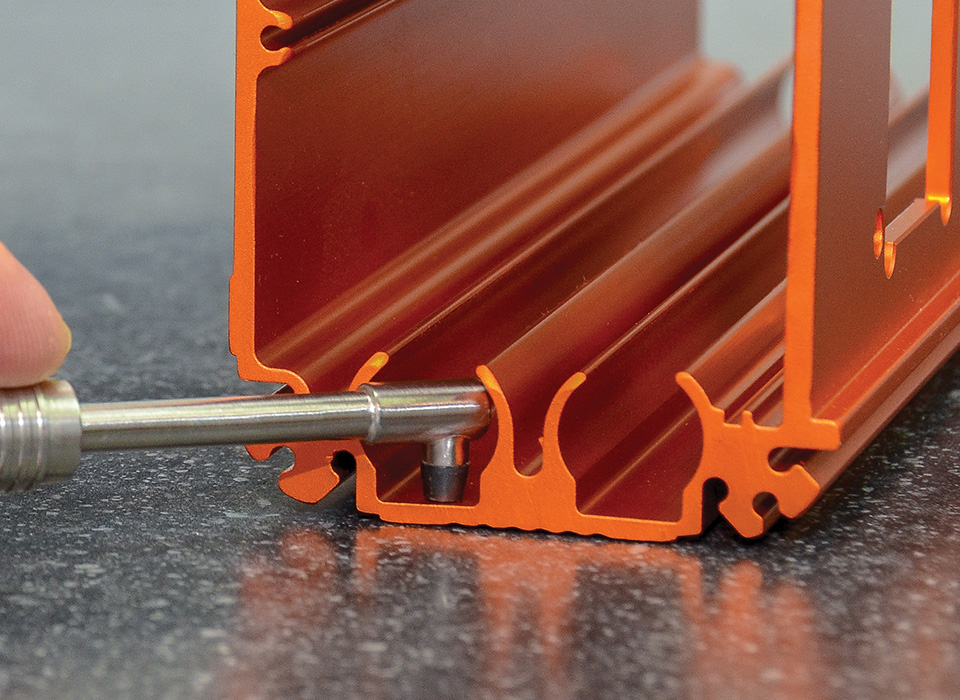

Đầu dò góc phải mini

Đầu dò góc phải mini

Để đo lớp phủ trên các cạnh, đường ống hẹp hoặc diện tích bề mặt nhỏ.

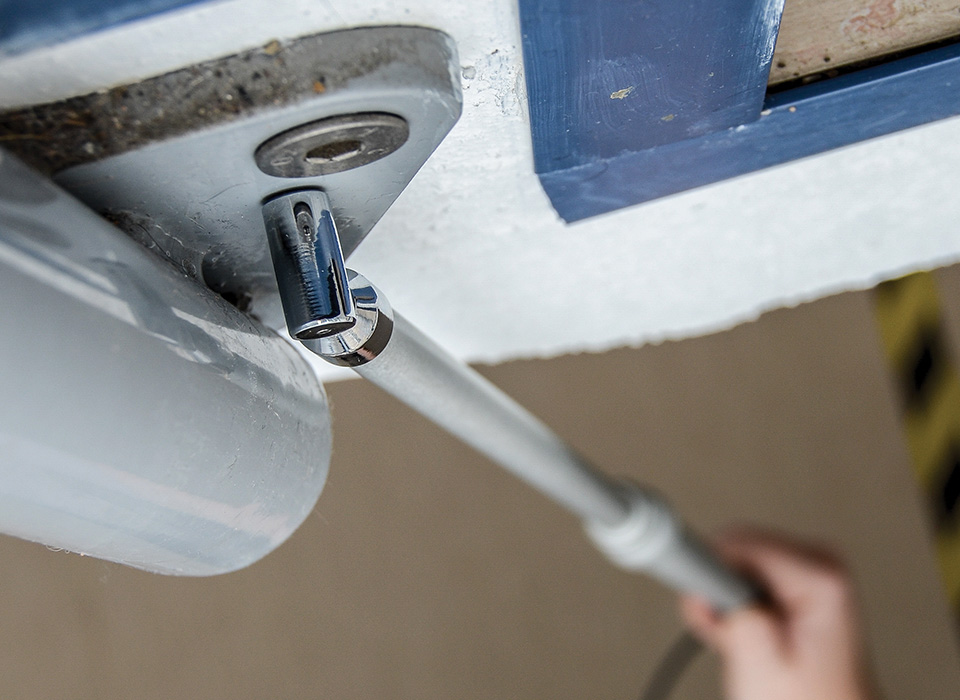

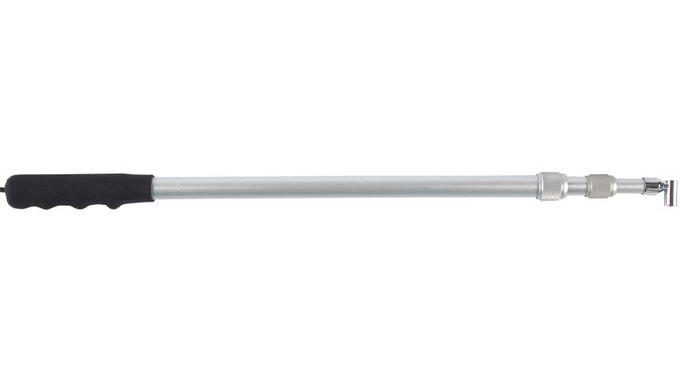

Đầu dò dạng kính thiên văn

Đầu dò dạng kính thiên văn

Mở rộng đầu dò cho các khu vực khó tiếp cận.

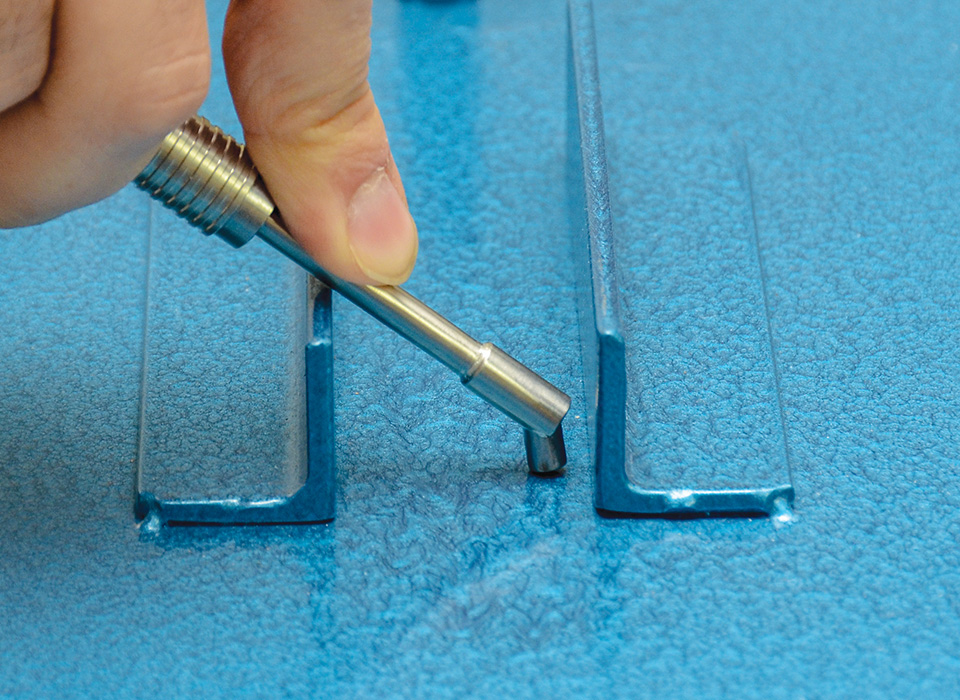

Đầu dò góc 45°

Đầu dò góc 45°

Đo các khu vực khó tiếp cận hoặc phức tạp.

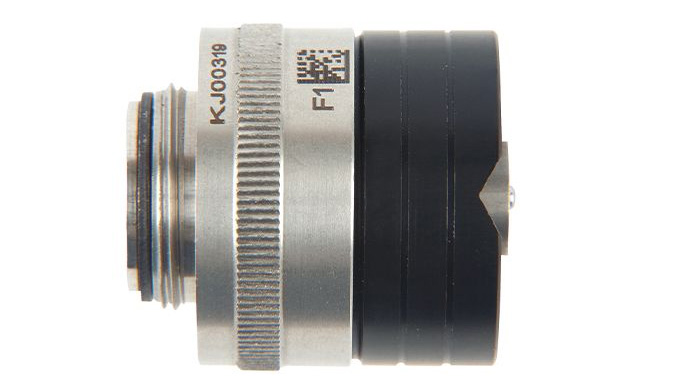

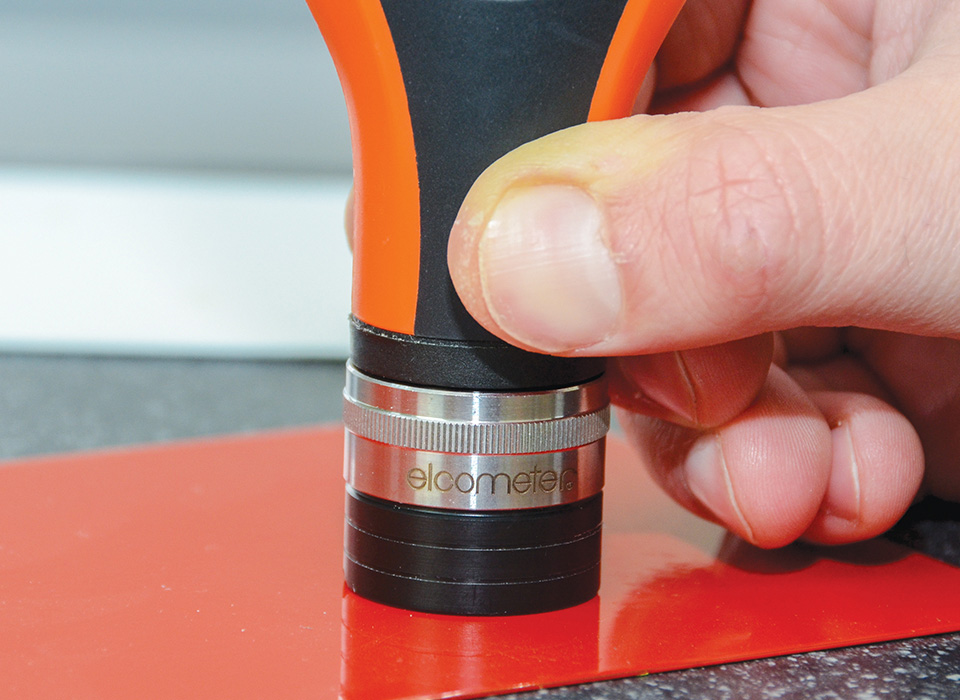

Cắm đầu dò tích hợp (PINIP™)

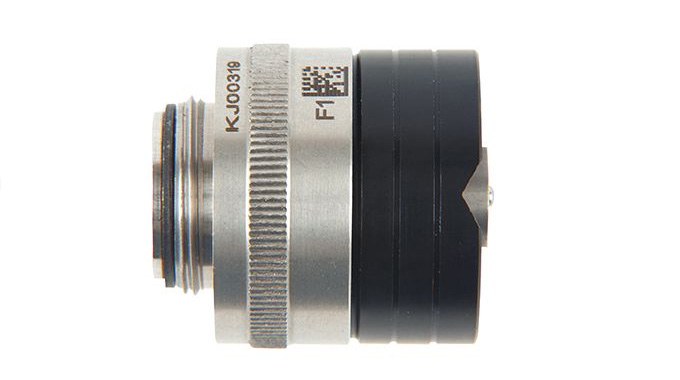

Đầu dò tích hợp PINIP™

Đầu dò tích hợp PINIP™

Chuyển đổi một thước đo riêng biệt thành một thước đo tích hợp, lý tưởng cho việc sử dụng bằng một tay.

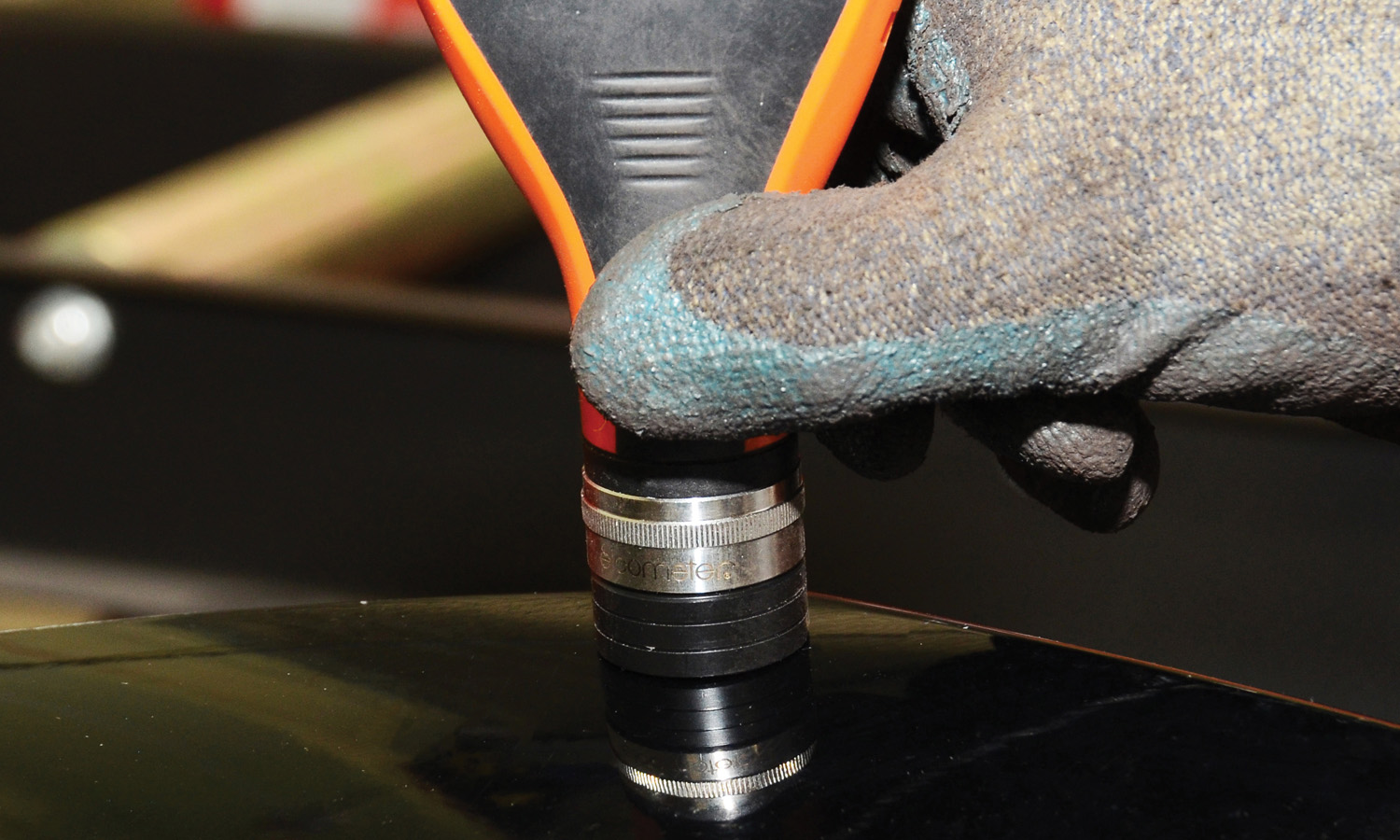

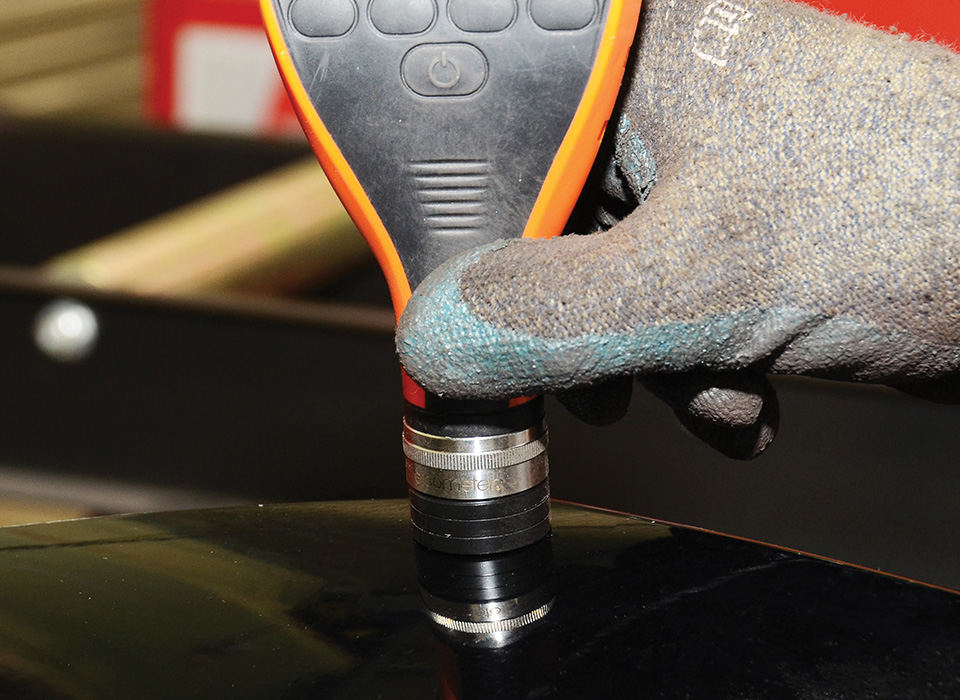

PINIP™ nhiệt độ cao

PINIP™ nhiệt độ cao

Đo lớp phủ trên nền kim loại màu lên tới 250°C (480°F).

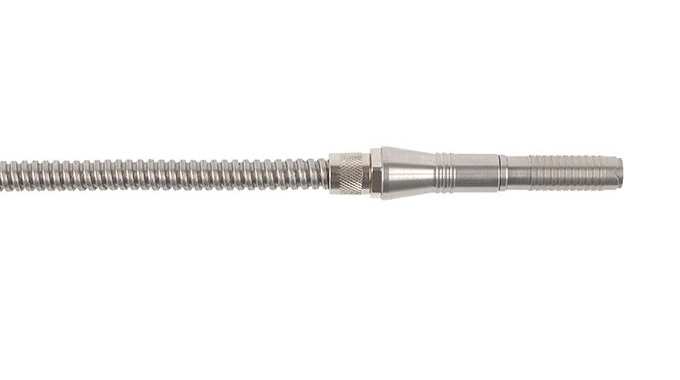

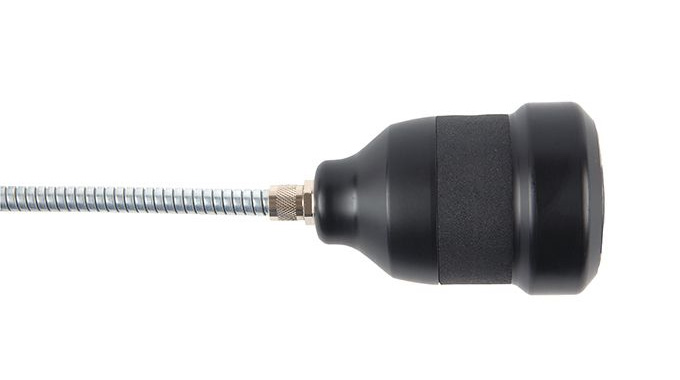

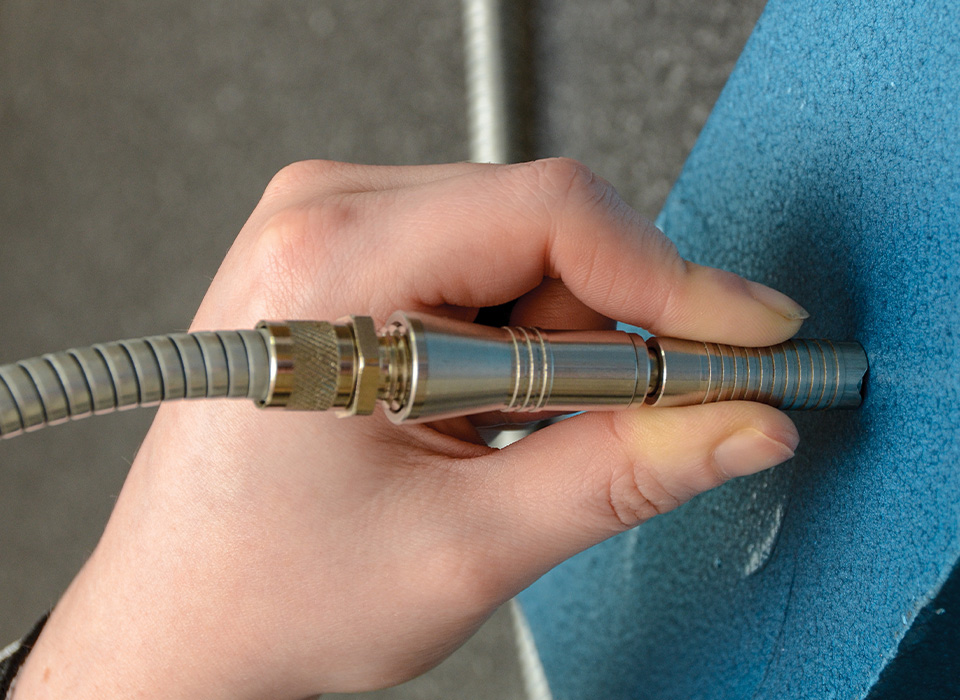

Đầu dò cáp bọc thép

Đầu dò bọc thép F/FNF

Đầu dò bọc thép F/FNF

Cáp hạng nặng được gia cố giúp giảm nguy cơ hư hỏng cáp.

*Số bằng sáng chế của Vương quốc Anh: 2571577

Part Numbers

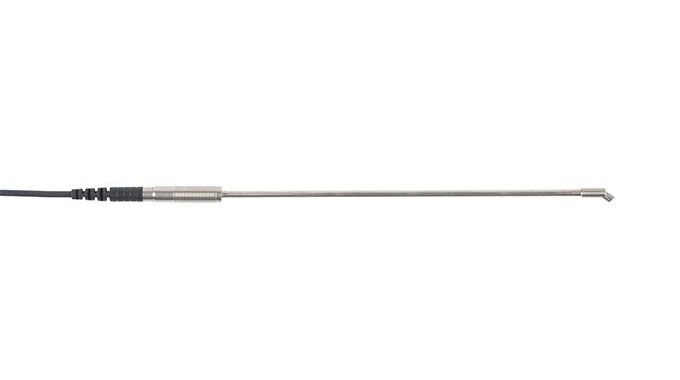

T456CFM3R45D

Elcometer 456 Coating Thickness Gauge 45° Angle Mini Probe - Scale 0.5

Substrate Probe: Ferrous (F)

Probes Range: 0-500μm, 0-20mils

Accuracy: ±1-3% or ±2.5μm, ±1-3% or ±0.1mil

Probe Length: 300mm (11.80”)

Minimum Headroom: 18mm (0.71”)

Minimum Sample Diameter: 3mm (0.12”)

Part Number : T456CFM3R45D

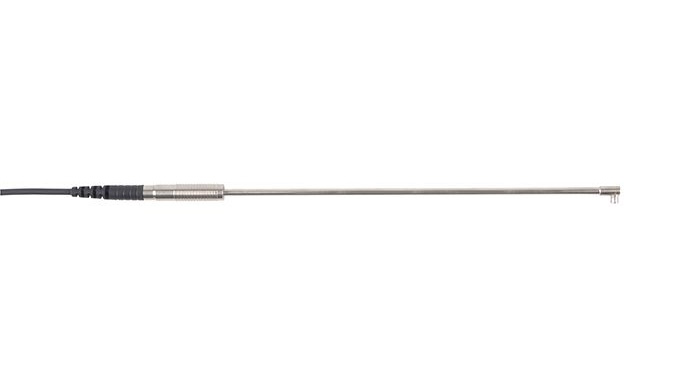

T456CFM3R90D

Elcometer 456 Coating Thickness Gauge Right Angle Mini Probe - Scale 0.5

Substrate Probe: Ferrous (F)

Probes Range: 0-500μm, 0-20mils

Accuracy: ±1-3% or ±2.5μm, ±1-3% or ±0.1mil

Probe Length: 300mm (11.80”)

Minimum Headroom: 16mm (0.63”)

Minimum Sample Diameter: 3mm (0.12”)

Part Number : T456CFM3R90D

T456CFM3R90C

Elcometer 456 Coating Thickness Gauge Right Angle Mini Probe - Scale 0.5

Substrate Probe: Ferrous (F)

Probes Range: 0-500μm, 0-20mils

Accuracy: ±1-3% or ±2.5μm, ±1-3% or ±0.1mil

Probe Length: 150mm (5.90”)

Minimum Headroom: 16mm (0.63”)

Minimum Sample Diameter: 3mm (0.12”)

Part Number : T456CFM3R90C

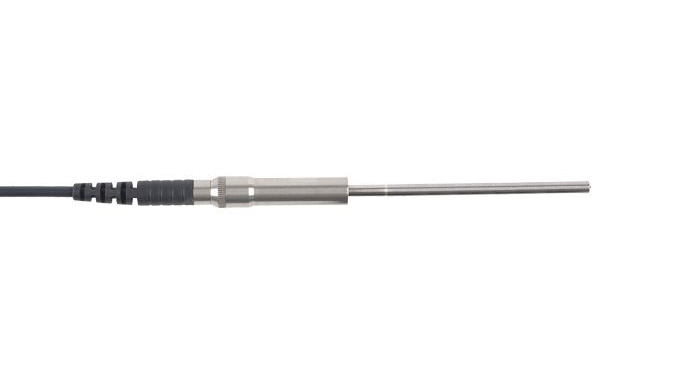

T456CFM3---C

Elcometer 456 Coating Thickness Gauge Straight Mini Probe - Scale 0.5

Substrate Probe: Ferrous (F)

Probes Range: 0-500μm, 0-20mils

Accuracy: ±1-3% or ±2.5μm, ±1-3% or ±0.1mil

Probe Length: 150mm (5.90”)

Minimum Headroom: 6mm (0.24”)

Minimum Sample Diameter: 3mm (0.12”)

Part Number : T456CFM3---C

T456CFM3R45A

Elcometer 456 Coating Thickness Gauge 45° Angle Mini Probe - Scale 0.5

Substrate Probe: Ferrous (F)

Probes Range: 0-500μm, 0-20mils

Accuracy: ±1-3% or ±2.5μm, ±1-3% or ±0.1mil

Probe Length: 45mm (1.77”)

Minimum Headroom: 16mm (0.63”)

Minimum Sample Diameter: 3mm (0.12”)

Part Number : T456CFM3R45A

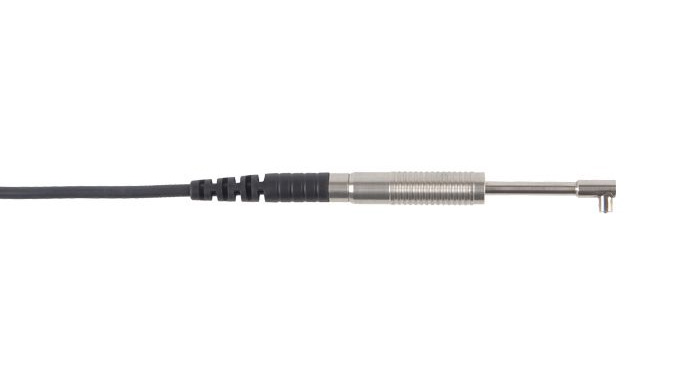

T456CFM3R90A

Elcometer 456 Coating Thickness Gauge Right Angle Mini Probe - Scale 0.5

Substrate Probe: Ferrous (F)

Probes Range: 0-500μm, 0-20mils

Accuracy: ±1-3% or ±2.5μm, ±1-3% or ±0.1mil

Probe Length: 45mm (1.77”)

Minimum Headroom: 16mm (0.63”)

Minimum Sample Diameter: 3mm (0.12”)

Part Number : T456CFM3R90A

T456CFM3---A

Elcometer 456 Coating Thickness Gauge Straight Mini Probe - Scale 0.5

Substrate Probe: Ferrous (F)

Probes Range: 0-500μm, 0-20mils

Accuracy: ±1-3% or ±2.5μm, ±1-3% or ±0.1mil

Probe Length: 45mm (1.77”)

Minimum Headroom: 6mm (0.24”)

Minimum Sample Diameter: 3mm (0.12”)

Part Number : T456CFM3---A

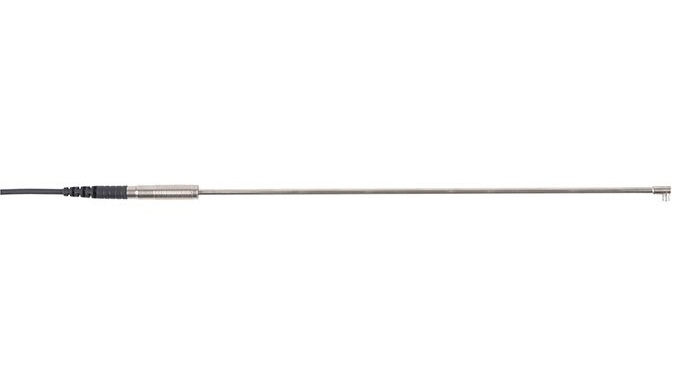

T456CNM3R90E

Elcometer 456 Coating Thickness Gauge Right Angle Mini Probe - Scale 0.5

Substrate Probe: Non-Ferrous (N)

Probes Range: 0-500μm, 0-20mils

Accuracy: ±1-3% or ±2.5μm, ±1-3% or ±0.1mil

Probe Length: 400mm (15.70”)

Minimum Headroom: 16mm (0.63”)

Minimum Sample Diameter: 4mm (0.16”)

Part Number : T456CNM3R90E

T456CNM3R90C

Elcometer 456 Coating Thickness Gauge Right Angle Mini Probe - Scale 0.5

Substrate Probe: Non-Ferrous (N)

Probes Range: 0-500μm, 0-20mils

Accuracy: ±1-3% or ±2.5μm, ±1-3% or ±0.1mil

Probe Length: 150mm (5.90”)

Minimum Headroom: 16mm (0.63”)

Minimum Sample Diameter: 4mm (0.16”)

Part Number : T456CNM3R90C

T456CNM3---C

Elcometer 456 Coating Thickness Gauge Straight Mini Probe - Scale 0.5

Substrate Probe: Non-Ferrous (N)

Probes Range: 0-500μm, 0-20mils

Accuracy: ±1-3% or ±2.5μm, ±1-3% or ±0.1mil

Probe Length: 150mm (5.90”)

Minimum Headroom: 6mm (0.24”)

Minimum Sample Diameter: 4mm (0.16”)

Part Number : T456CNM3---C

T456CNM3R90A

Elcometer 456 Coating Thickness Gauge Right Angle Mini Probe - Scale 0.5

Substrate Probe: Non-Ferrous (N)

Probes Range: 0-500μm, 0-20mils

Accuracy: ±1-3% or ±2.5μm, ±1-3% or ±0.1mil

Probe Length: 45mm (1.77”)

Minimum Headroom: 16mm (0.63”)

Minimum Sample Diameter: 4mm (0.16”)

Part Number : T456CNM3R90A

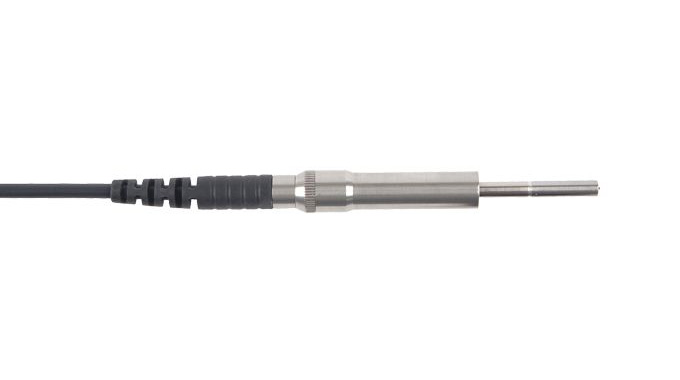

T456CNM3---A

Elcometer 456 Coating Thickness Gauge Straight Mini Probe - Scale 0.5

Substrate Probe: Non-Ferrous (N)

Probes Range: 0-500μm, 0-20mils

Accuracy: ±1-3% or ±2.5μm, ±1-3% or ±0.1mil

Probe Length: 45mm (1.77”)

Minimum Headroom: 6mm (0.24”)

Minimum Sample Diameter: 4mm (0.16”)

Part Number : T456CNM3---A

T456CNMG3R90E

Elcometer 456 Coating Thickness Gauge Right Angle Mini Probe - Scale 0.5

Substrate Probe: Non-Ferrous - Graphite (N)

Range: 0-500μm, 0-20mils

Accuracy: ±1-3% or ±2.5μm, ±1-3% or ±0.1mil

Probe Length: 400mm (15.70”)

Minimum Headroom: 16mm (0.63”)

Minimum Sample Diameter: 4mm (0.16”)

Part Number : T456CNMG3R90E

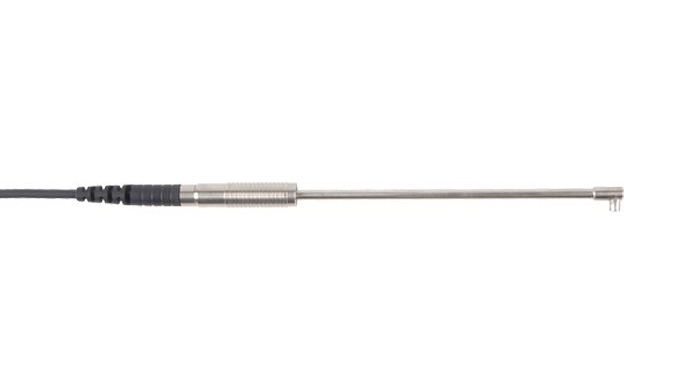

T456CNMG3R90C

Elcometer 456 Coating Thickness Gauge Right Angle Mini Probe - Scale 0.5

Substrate Probe: Non-Ferrous - Graphite (N)

Range: 0-500μm, 0-20mils

Accuracy: ±1-3% or ±2.5μm, ±1-3% or ±0.1mil

Probe Length: 150mm (5.90”)

Minimum Headroom: 16mm (0.63”)

Minimum Sample Diameter: 4mm (0.16”)

Part Number : T456CNMG3R90C

T456CNMG3R90A

Elcometer 456 Coating Thickness Gauge Right Angle Mini Probe - Scale 0.5

Substrate Probe: Non-Ferrous - Graphite (N)

Range: 0-500μm, 0-20mils

Accuracy: ±1-3% or ±2.5μm, ±1-3% or ±0.1mil

Probe Length: 45mm (1.77”)

Minimum Headroom: 16mm (0.63”)

Minimum Sample Diameter: 4mm (0.16”)

Part Number : T456CNMG3R90A

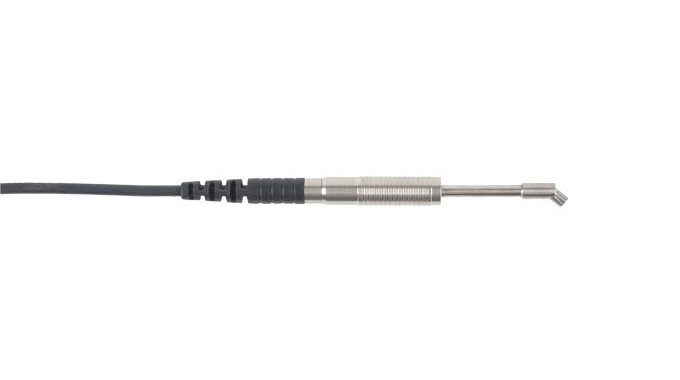

T456CFM7R45A

Elcometer 456 Coating Thickness Gauge 45° Angle Mini Probe - Scale FM7

Substrate Probe: Ferrous (F)

Probes Range: 0.60-3.8mm, 25-150mils

Accuracy: ±7.5% or ±114μm, ±7,5% or ±4,5mils

Probe Length: 45mm (1.77”)

Minimum Headroom: 20mm (0.79”)

Minimum Sample Diameter: 6.5 mm (0.26’’)

Part Number : T456CFM7R45A

T456CF1S

Elcometer 456 Coating Thickness Gauge Straight Probe - Scale 1

Substrate Probe: Ferrous (F)

Probes Range: 0-1,500μm, 0-60mils

Accuracy: ±1-3% or ±2.5μm, ±1-3% or ±0.1mil

Probe Length: 45mm (1.77”)

Minimum Headroom: 85mm (3.35”)

Minimum Sample Diameter: 4mm (0.16”)

Part Number : T456CF1S

T456CF1U

Elcometer 456 Coating Thickness Gauge Scan Probe - Scale 1

Substrate Probe: Ferrous (F)

Probes Range: 0-1,500μm, 0-60mils

Accuracy: ±1-3% or ±2.5μm, ±1-3% or ±0.1mil

Probe Length: 45mm (1.77”)

Minimum Headroom: 86mm (3.38”)

Minimum Sample Diameter: 15mm (0.59”)

Part Number : T456CF1U

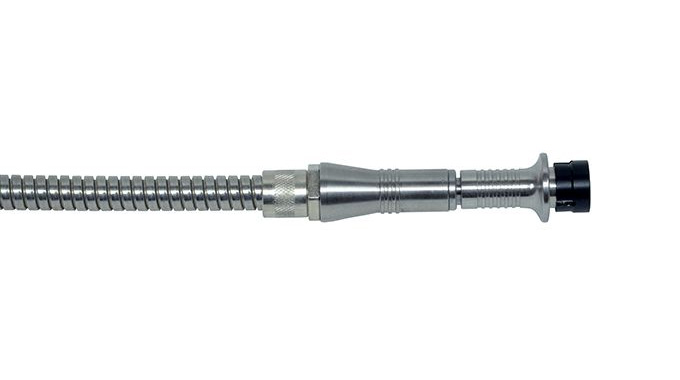

T456CF1UARM

Elcometer 456 Coating Thickness Gauge Scan Probe Armoured - Scale 1

Substrate Probe: Ferrous (F)

Probes Range: 0-1,500μm, 0-60mils

Accuracy: ±1-3% or ±2.5μm, ±1-3% or ±0.1mil

Probe Length: 45mm (1.77”)

Minimum Headroom: 140mm (5.51”)

Minimum Sample Diameter: 15mm (0.59”)

Part Number : T456CF1UARM

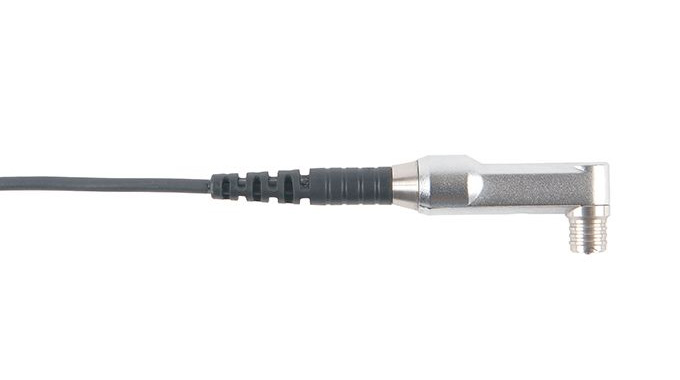

T456CF1R

Elcometer 456 Coating Thickness Gauge 90° Probe - Scale 1

Substrate Probe: Ferrous (F)

Probes Range: 0-1,500μm, 0-60mils

Accuracy: ±1-3% or ±2.5μm, ±1-3% or ±0.1mil

Probe Length: 45mm (1.77”)

Minimum Headroom: 28mm (1.10”)

Minimum Sample Diameter: 4mm (0.16”)

Part Number : T456CF1R

T456CFM5R90A

Elcometer 456 Coating Thickness Gauge 90° Mini Probe - Scale 1

Substrate Probe: Ferrous (F)

Probes Range: 0-1,500μm, 0-60mils

Accuracy: ±1-3% or ±2.5μm, ±1-3% or ±0.1mil

Probe Length: 45mm (1.77”)

Minimum Headroom: 16mm (0.63”)

Minimum Sample Diameter: 4mm (0.16”)

Part Number : T456CFM5R90A

T456CFME5R90A

Elcometer 456 Coating Thickness Gauge 90° Mini Probe sealed - Scale 1

Substrate Probe: Ferrous (F)

Probes Range: 0-1,500μm, 0-60mils

Accuracy: ±1-3% or ±2.5μm, ±1-3% or ±0.1mil

Probe Length: 45mm (1.77”)

Minimum Headroom: 16mm (0.63”)

Minimum Sample Diameter: 4mm (0.16”)

Part Number : T456CFME5R90A

T456CFME5R90A-2

Elcometer 456 Coating Thickness Gauge 90° Mini Probe sealed, 2m cable - Scale 1

Substrate Probe: Ferrous (F)

Probes Range: 0-1,500μm, 0-60mils

Accuracy: ±1-3% or ±2.5μm, ±1-3% or ±0.1mil

Probe Length: 45mm (1.77”)

Minimum Headroom: 16mm (0.63”)

Minimum Sample Diameter: 4mm (0.16”)

Part Number : T456CFME5R90A-2

T456CF1P

Elcometer 456 Coating Thickness Gauge PINIP™ Integral Probe - Scale 1

Substrate Probe: Ferrous (F)

Probes Range: 0-1,500μm, 0-60mils

Accuracy: ±1-3% or ±2.5μm, ±1-3% or ±0.1mil

Minimum Headroom: 170mm (6.69”)

Minimum Sample Diameter: 4mm (0.16”)

Part Number : T456CF1P

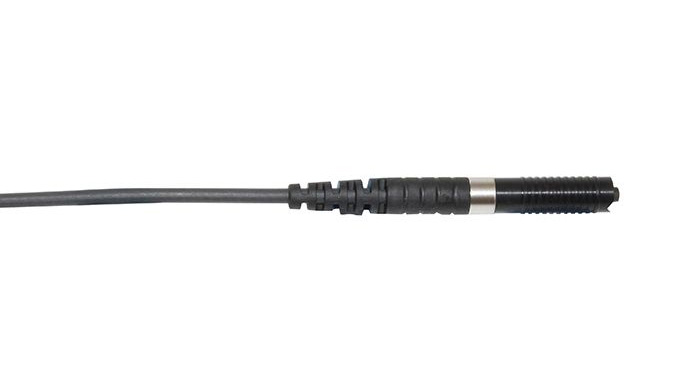

T456CN1S

Elcometer 456 Coating Thickness Gauge Straight Probe - Scale 1

Substrate Probe: Non-Ferrous (N)

Probes Range: 0-1,500μm, 0-60mils

Accuracy: ±1-3% or ±2.5μm, ±1-3% or ±0.1mil

Probe Length: 45mm (1.77”)

Minimum Headroom: 85mm (3.35”)

Minimum Sample Diameter: 4mm (0.16”)

Part Number : T456CN1S

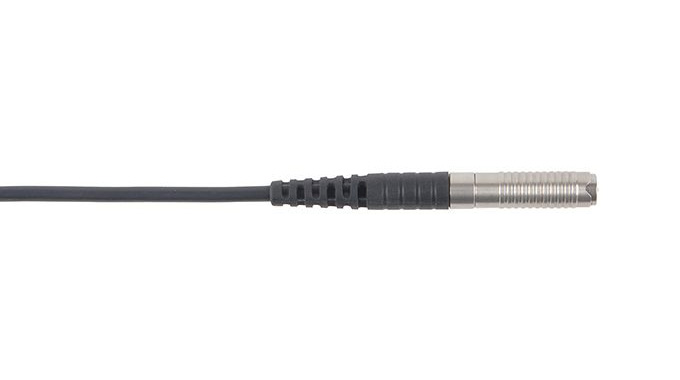

T456CF1E

Elcometer 456 Coating Thickness Gauge Straight Probe sealed - Scale 1

Substrate Probe: Ferrous (F)

Probes Range: 0-1,500μm, 0-60mils

Accuracy: ±1-3% or ±2.5μm, ±1-3% or ±0.1mil

Probe Length: 45mm (1.77”)

Minimum Headroom: 85mm (3.35”)

Minimum Sample Diameter: 4mm (0.16”)

Part Number : T456CF1E

T456CN1R

Elcometer 456 Coating Thickness Gauge 90° Probe - Scale 1

Substrate Probe: Non-Ferrous (N)

Probes Range: 0-1,500μm, 0-60mils

Accuracy: ±1-3% or ±2.5μm, ±1-3% or ±0.1mil

Probe Length: 45mm (1.77”)

Minimum Headroom: 28mm (1.10”)

Minimum Sample Diameter: 4mm (0.16”)

Part Number : T456CN1R

T456CNM5R90A

Elcometer 456 Coating Thickness Gauge Mini 90° Probe - Scale 1

Substrate Probe: Non-Ferrous (N)

Probes Range: 0-1,500μm, 0-60mils

Accuracy: ±1-3% or ±2.5μm, ±1-3% or ±0.1mil

Probe Length: 45mm (1.77”)

Minimum Headroom: 16mm (0.63”)

Minimum Sample Diameter: 4mm (0.16”)

Part Number : T456CNM5R90A

T456CNM5R90C

Elcometer 456 Coating Thickness Gauge Mini 90° Probe - Scale 1

Substrate Probe: Non-Ferrous (N)

Probes Range: 0-1,500μm, 0-60mils

Accuracy: ±1-3% or ±2.5μm, ±1-3% or ±0.1mil

Probe Length: 150mm (5.90”)

Minimum Headroom: 16mm (0.63”)

Minimum Sample Diameter: 4mm (0.16”)

Part Number : T456CNM5R90C

T456CNM5R90E

Elcometer 456 Coating Thickness Gauge Mini 90° Probe - Scale 1

Substrate Probe: Non-Ferrous (N)

Probes Range: 0-1,500μm, 0-60mils

Accuracy: ±1-3% or ±2.5μm, ±1-3% or ±0.1mil

Probe Length: 400mm (15.70”)

Minimum Headroom: 16mm (0.63”)

Minimum Sample Diameter: 4mm (0.16”)

Part Number : T456CNM5R90E

T456CN1P

Elcometer 456 Coating Thickness Gauge PINIP™ Integral Probe - Scale 1

Substrate Probe: Non-Ferrous (N)

Probes Range: 0-1,500μm, 0-60mils

Accuracy: ±1-3% or ±2.5μm, ±1-3% or ±0.1mil

Minimum Headroom: 180mm (7.09”)

Minimum Sample Diameter: 4mm (0.16”)

Part Number : T456CN1P

T456CN1AS

Elcometer 456 Coating Thickness Gauge Anodiser Probe - Scale 1

Substrate Probe: Non-Ferrous (N)

Probes Range: 0-1,500μm, 0-60mils

Accuracy: ±1-3% or ±2.5μm, ±1-3% or ±0.1mil

Probe Length: 45mm (1.77”)

Minimum Headroom: 100mm (3.94”)

Minimum Sample Diameter: 4mm (0.16”)

Part Number : T456CN1AS

T456CFNF1S

Elcometer 456 Coating Thickness Gauge Straight Probe - Scale 1

Substrate Probe: Ferrous & Non-Ferrous (FNF)

Probes Range: 0-1,500μm, 0-60mils

Accuracy: ±1-3% or ±2.5μm, ±1-3% or ±0.1mil

Probe Length: 45mm (1.77”)

Minimum Headroom: 88mm (3.46”)

Minimum Sample Diameter: F: 4mm (0.16”), N: 6mm (0.24”)

Part Number : T456CFNF1S

T456CFNF1U

Elcometer 456 Coating Thickness Gauge Scan Probe - Scale 1

Substrate Probe: Ferrous & Non-Ferrous (FNF)

Probes Range: 0-1,500μm, 0-60mils

Accuracy: ±1-3% or ±2.5μm, ±1-3% or ±0.1mil

Probe Length: 45mm (1.77”)

Minimum Headroom: 89mm (3.50”)

Minimum Sample Diameter: 15mm (0.59”)

Part Number : T456CFNF1U

T456CFNF1R

Elcometer 456 Coating Thickness Gauge Right Angle Probe - Scale 1

Substrate Probe: Ferrous & Non-Ferrous (FNF)

Probes Range: 0-1,500μm, 0-60mils

Accuracy: ±1-3% or ±2.5μm, ±1-3% or ±0.1mil

Probe Length: 45mm (1.77”)

Minimum Headroom: 38mm (1.50”)

Minimum Sample Diameter: F: 4mm (0.16”), N: 6mm (0.24”)

Part Number : T456CFNF1R

T456CFNF1P

Elcometer 456 Coating Thickness Gauge PINIP™ Integral Probe - Scale 1

Substrate Probe: Ferrous & Non-Ferrous (FNF)

Probes Range: 0-1,500μm, 0-60mils

Accuracy: ±1-3% or ±2.5μm, ±1-3% or ±0.1mil

Minimum Headroom: 180mm (7.09”)

Minimum Sample Diameter: F: 4mm (0.16”), N: 6mm (0.24”)

Part Number : T456CFNF1P

T456CFNF1ARM

Elcometer 456 Coating Thickness Gauge Straight Probe Armoured Cable - Scale 1

Substrate Probe: Ferrous & Non-Ferrous (FNF)

Probes Range: 0-1,500μm, 0-60mils

Accuracy: ±1-3% or ±2.5μm, ±1-3% or ±0.1mil

Probe Length: 45mm (1.77”)

Minimum Headroom: 185mm (7.28")

Minimum Sample Diameter: F: 4mm (0.16”), N: 6mm (0.24”)

Part Number : T456CFNF1ARM

T456CF2S

Elcometer 456 Coating Thickness Gauge Straight Probe - Scale 2

Substrate Probe: Ferrous (F)

Probes Range: 0-5mm, 0-200mils

Accuracy: ±1-3% or ±20μm, ±1-3% or ±1.0mil

Probe Length: 45mm (1.77”)

Minimum Headroom: 89mm (3.50”)

Minimum Sample Diameter: 8mm (0.32”)

Part Number : T456CF2S

T456CF2ARM

Elcometer 456 Coating Thickness Gauge Straight Probe Armoured Cable - Scale 2

Substrate Probe: Ferrous (F)

Probes Range: 0-5mm, 0-200mils

Accuracy: ±1-3% or ±20μm, ±1-3% or ±1.0mil

Probe Length: 45mm (1.77”)

Minimum Headroom: 138mm (5.43”)

Minimum Sample Diameter: 8mm (0.32”)

Part Number : T456CF2ARM

T456CF2U

Elcometer 456 Coating Thickness Gauge Scan Probe - Scale 2

Substrate Probe: Ferrous (F)

Probes Range: 0-5mm, 0-200mils

Accuracy: ±1-3% or ±20μm, ±1-3% or ±1.0mil

Probe Length: 45mm (1.77”)

Minimum Headroom: 90mm (3.54”)

Minimum Sample Diameter: 15mm (0.59”)

Part Number : T456CF2U

T456CF2R

Elcometer 456 Coating Thickness Gauge 90° Probe - Scale 2

Substrate Probe: Ferrous (F)

Probes Range: 0-5mm, 0-200mils

Accuracy: ±1-3% or ±20μm, ±1-3% or ±1.0mil

Probe Length: 45mm (1.77”)

Minimum Headroom: 32mm (1.26”)

Minimum Sample Diameter: 8mm (0.32”)

Part Number : T456CF2R

T456CF2T

Elcometer 456 Coating Thickness Gauge Telescopic Probe - Scale 2

Substrate Probe: Ferrous (F)

Probes Range: 0-5mm, 0-200mils

Accuracy: ±1-3% or ±20μm, ±1-3% or ±1.0mil

Probe Length: 56-122cm (22-48”)

Minimum Headroom: 36mm (1.42”)

Minimum Sample Diameter: 8mm (0.32”)

Part Number : T456CF2T

T456CF2B

Elcometer 456 Coating Thickness Gauge Soft Coating Probe - Scale 2

Substrate Probe: Ferrous (F)

Probes Range: 0-5mm, 0-200mils

Accuracy: ±1-3% or ±20μm, ±1-3% or ±1.0mil

Probe Length: 45mm (1.77”)

Minimum Headroom: 89mm (3.50”)

Minimum Sample Diameter: 8mm (0.32”)

Part Number : T456CF2B

T456CF2SW

Elcometer 456 Coating Thickness Gauge Waterproof Probe 1m (3’) cable - Scale 2

Substrate Probe: Ferrous (F)

Probes Range: 0-5mm, 0-200mils

Accuracy: ±1-3% or ±20μm, ±1-3% or ±1.0mil

Probe Length: 45mm (1.77”)

Minimum Headroom: 138mm (5.43”)

Minimum Sample Diameter: 8mm (0.32”)

Part Number : T456CF2SW

T456CF2SW-5

Elcometer 456 Coating Thickness Gauge Waterproof Probe 5m (15") cable - Scale 2

Substrate Probe: Ferrous (F)

Probes Range: 0-5mm, 0-200mils

Accuracy: ±1-3% or ±20μm, ±1-3% or ±1.0mil

Probe Length: 45mm (1.77”)

Minimum Headroom: 138mm (5.43”)

Minimum Sample Diameter: 8mm (0.32”)

Part Number : T456CF2SW-5

T456CF2SW-15

Elcometer 456 Coating Thickness Gauge Waterproof Probe 15m (45") cable - Scale 2

Substrate Probe: Ferrous (F)

Probes Range: 0-5mm, 0-200mils

Accuracy: ±1-3% or ±20μm, ±1-3% or ±1.0mil

Probe Length: 45mm (1.77”)

Minimum Headroom: 138mm (5.43”)

Minimum Sample Diameter: 8mm (0.32”)

Part Number : T456CF2SW-15

T456CF2SW-30

Elcometer 456 Coating Thickness Gauge Waterproof Probe 30m (98") cable - Scale 2

Substrate Probe: Ferrous (F)

Probes Range: 0-5mm, 0-200mils

Accuracy: ±1-3% or ±20μm, ±1-3% or ±1.0mil

Probe Length: 45mm (1.77”)

Minimum Headroom: 138mm (5.43”)

Minimum Sample Diameter: 8mm (0.32”)

Part Number : T456CF2SW-30

T456CF2SW-50

Elcometer 456 Coating Thickness Gauge Waterproof Probe 50m (164") cable - Scale 2

Substrate Probe: Ferrous (F)

Probes Range: 0-5mm, 0-200mils

Accuracy: ±1-3% or ±20μm, ±1-3% or ±1.0mil

Probe Length: 45mm (1.77”)

Minimum Headroom: 138mm (5.43”)

Minimum Sample Diameter: 8mm (0.32”)

Part Number : T456CF2SW-50

T456CF2SW-75

Elcometer 456 Coating Thickness Gauge Waterproof Probe 75m (250") cable - Scale 2

Substrate Probe: Ferrous (F)

Probes Range: 0-5mm, 0-200mils

Accuracy: ±1-3% or ±20μm, ±1-3% or ±1.0mil

Probe Length: 45mm (1.77”)

Minimum Headroom: 138mm (5.43”)

Minimum Sample Diameter: 8mm (0.32”)

Part Number : T456CF2SW-75

T456CF2P

Elcometer 456 Coating Thickness Gauge PINIP™ Integral Probe - Scale 2

Substrate Probe: Ferrous (F)

Probes Range: 0-5mm, 0-200mils

Accuracy: ±1-3% or ±20μm, ±1-3% or ±1.0mil

Minimum Headroom: 174mm (6.85”)

Minimum Sample Diameter: 8mm (0.32”)

Part Number : T456CF2P

T456CF2PHT

Elcometer 456 Coating Thickness Gauge Hi-Temperature PINIP™ - Scale 2

Substrate Probe: Ferrous (F)

Probes Range: 0-5mm, 0-200mils

Accuracy: ±1-3% or ±20μm, ±1-3% or ±1.0mil

Minimum Headroom: 174mm (6.85”)

Minimum Sample Diameter: 8mm (0.32”)

Part Number : T456CF2PHT

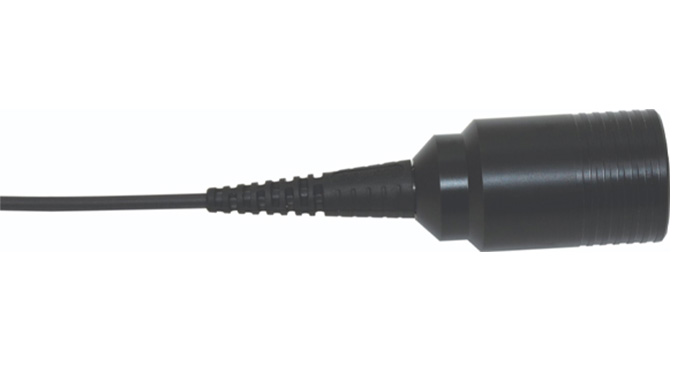

T456CN2S

Elcometer 456 Coating Thickness Gauge Straight Probe - Scale 2

Substrate Probe: Non-Ferrous (N)

Probes Range: 0-5mm, 0-200mils

Accuracy: ±1-3% or ±20μm, ±1-3% or ±1.0mil

Probe Length: 45mm (1.77”)

Minimum Headroom: 88mm (3.46”)

Minimum Sample Diameter: 14mm (0.55”)

Part Number : T456CN2S

T456CN2P

Elcometer 456 Coating Thickness Gauge PINIP™ Integral Probe - Scale 2

Substrate Probe: Non-Ferrous (N)

Probes Range: 0-5mm, 0-200mils

Accuracy: ±1-3% or ±20μm, ±1-3% or ±1.0mil

Minimum Headroom: 185mm (7.28")

Minimum Sample Diameter: 14mm (0.55”)

Part Number : T456CN2P

T456CF3S

Elcometer 456 Coating Thickness Gauge Straight Probe - Scale 3

Substrate Probe: Ferrous (F)

Probes Range: 0-13mm, 0-500mils

Accuracy: ±1-3% or ±50μm, ±1-3% or ±2.0mils

Probe Length: 45mm (1.77”)

Minimum Headroom: 102mm (4.02”)

Minimum Sample Diameter: 14mm (0.55”)

Part Number : T456CF3S

T456CF3P

Elcometer 456 Coating Thickness Gauge PINIP™ Integral Probe - Scale 3

Substrate Probe: Ferrous (F)

Probes Range: 0-13mm, 0-500mils

Accuracy: ±1-3% or ±50μm, ±1-3% or ±2.0mils

Minimum Headroom: 184mm (7.24”)

Minimum Sample Diameter: 14mm (0.55”)

Part Number : T456CF3P

T456CN3S

Elcometer 456 Coating Thickness Gauge Straight Probe - Scale 3

Substrate Probe: Non-Ferrous (N)

Probes Range: 0-13mm, 0-500mils

Accuracy: ±1-3% or ±50μm, ±1-3% or ±2.0mils

Probe Length: 45mm (1.77”)

Minimum Headroom: 170mm (6.69”)

Minimum Sample Diameter: 35mm (1.38”)

Part Number : T456CN3S

T456CF6S

Elcometer 456 Coating Thickness Gauge Straight Probe - Scale 6

Substrate Probe: Ferrous (F)

Probes Range: 0-13mm, 0-500mils, F: 0-25mm, N: 0-30mm, F: 0-980mils, N: 0-1,200mils

Accuracy: ±1-3% or ±100μm, ±1-3% or ±4.0mils

Probe Length: 45mm (1.77”)

Minimum Headroom: 150mm (5.90”)

Minimum Sample Diameter: 51 x 51mm2 (2.17 x 2.17 inch2)

Part Number : T456CF6S

T456CF6ARM

Elcometer 456 Coating Thickness Gauge Straight Probe armoured cable - Scale 6

Substrate Probe: Ferrous (F)

Probes Range: 0-13mm, 0-500mils, F: 0-25mm, N: 0-30mm, F: 0-980mils, N: 0-1,200mils

Accuracy: ±1-3% or ±100μm, ±1-3% or ±4.0mils

Probe Length: 45mm (1.77”)

Minimum Headroom: 190mm (7.48”)

Minimum Sample Diameter: 51 x 51mm2 (2.17 x 2.17 inch2)

Part Number : T456CF6ARM

T456CN6S

Elcometer 456 Coating Thickness Gauge Straight Probe - Scale 6

Substrate Probe: Non-Ferrous (N)

Probes Range: 0-13mm, 0-500mils, F: 0-25mm, N: 0-30mm, F: 0-980mils, N: 0-1,200mils

Accuracy: ±1-3% or ±100μm, ±1-3% or ±4.0mils

Probe Length: 45mm (1.77”)

Minimum Headroom: 160mm (6.30”)

Minimum Sample Diameter: 58mm (2.29”)

Part Number : T456CN6S

T456CN6ARM

Elcometer 456 Coating Thickness Gauge Straight Probe armoured cable - Scale 6

Substrate Probe: Non-Ferrous (N)

Probes Range: 0-13mm, 0-500mils, F: 0-25mm, N: 0-30mm, F: 0-980mils, N: 0-1,200mils

Accuracy: ±1-3% or ±100μm, ±1-3% or ±4.0mils

Probe Length: 45mm (1.77”)

Minimum Headroom: 200mm (7.87")

Minimum Sample Diameter: 58mm (2.29”)

Part Number : T456CN6ARM

T456CF7ARM

Elcometer 456 Coating Thickness Gauge Straight Probe armoured cable - Scale 7

Substrate Probe: Ferrous (F)

Probes Range: 0-31mm, 0-1220mils

Accuracy: ±1-3% or ±100μm, ±1-3% or ±4.0mils

Probe Length: 45mm (1.77”)

Minimum Headroom: 200mm (7.87")

Minimum Sample Diameter: 55 x 55mm2 (2.17 x 2.17 inch2)

Part Number : T456CF7ARM

Accessories

Jumbo Hand Grip F and N Probes

Part Number : T9997766-

Jumbo Hand Grip Dual FNF Probes

Part Number : T99913225

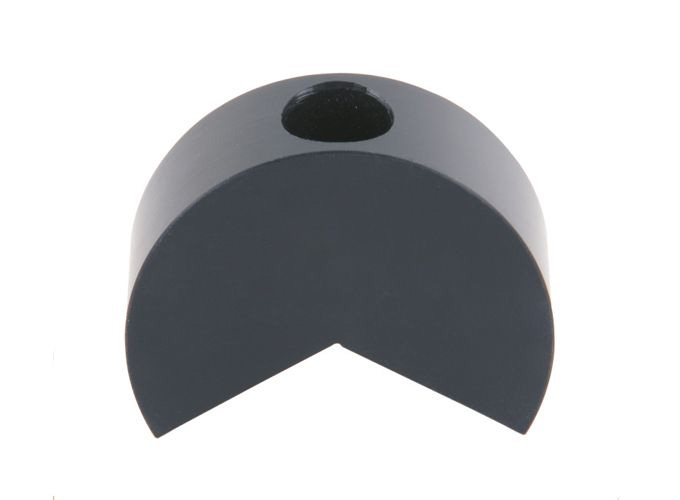

V-Probe Adaptor F and N Probes

Part Number : T9997381-

V-Probe Adaptor Dual FNF Probes

Part Number : T99913133

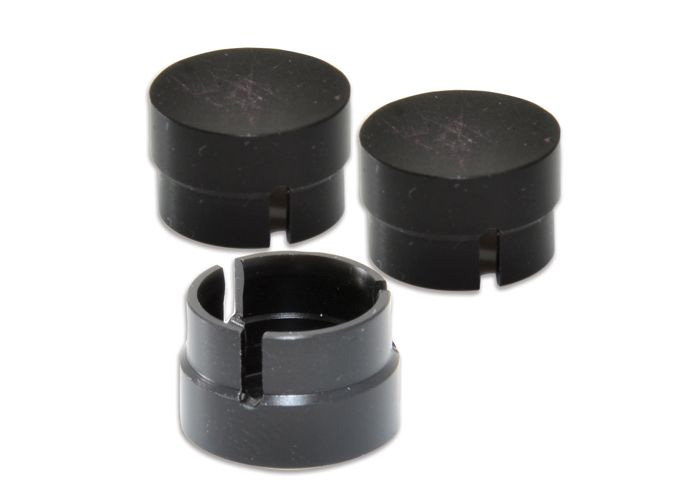

Replacement Ultra/Scan Probe End Caps (3 per pack) F & Dual FNF Probes

Part Number : T456C23956

Xem thêm chi tiết sản phẩm ▼

Scale 0.5: Range : 0-500μm (0-20mils)
Accuracy^a	(±1-3% or ±0.1mil)
Range	0-500μm (0-20mils)
Resolution	0.1μm: 0-100μm (0.01mil: 0-5mils) 1μm: 100-500μm (0.1mil: 5-20mils)
Certificate
Description	Part Number	Minimum Headroom	Minimum Sample Diameter^b	Minimum Convex Surface Diameter	Minimum Concave Surface Radius
Ferrous (F)
Straight Mini Probe Probe Length: 45mm (1.77”)^c	T456CFM3---A	6mm (0.24”)	3mm (0.12”)	1.9mm (0.07")	6.5mm (0.26")
Right Angle Mini Probe Probe Length: 45mm (1.77”)^c	T456CFM3R90A	16mm (0.63”)	3mm (0.12”)	1.9mm (0.07")	6.5mm (0.26")
45° Angle Mini Probe Probe Length: 45mm (1.77”)^c	T456CFM3R45A	16mm (0.63”)	3mm (0.12”)	1.9mm (0.07")	6.5mm (0.26")
Straight Mini Probe Probe Length: 150mm (5.90”)^c	T456CFM3---C	6mm (0.24”)	3mm (0.12”)	1.9mm (0.07")	6.5mm (0.26")
Right Angle Mini Probe Probe Length: 150mm (5.90”)^c	T456CFM3R90C	16mm (0.63”)	3mm (0.12”)	1.9mm (0.07")	6.5mm (0.26")
45° Angle Mini Probe Probe Length: 300mm (11.80”)^c	T456CFM3R45D	18mm (0.71”)	3mm (0.12”)	1.9mm (0.07")	6.5mm (0.26")
Right Angle Mini Probe Probe Length: 300mm (11.80”)^c	T456CFM3R90D	16mm (0.63”)	3mm (0.12”)	1.9mm (0.07")	6.5mm (0.26")

Non-Ferrous (N)
Straight Mini Probe Probe Length: 45mm (1.77”)^c	T456CNM3---A	6mm (0.24”)	4mm (0.16”)	6mm (0.24")	8.5mm (0.33")
Right Angle Mini Probe Probe Length: 45mm (1.77”)^c	T456CNM3R90A	16mm (0.63”)	4mm (0.16”)	6mm (0.24")	8.5mm (0.33")
Straight Mini Probe Probe Length: 150mm (5.90”)^c	T456CNM3---C	6mm (0.24”)	4mm (0.16”)	6mm (0.24")	8.5mm (0.33")
Right Angle Mini Probe Probe Length: 150mm (5.90”)^c	T456CNM3R90C	16mm (0.63”)	4mm (0.16”)	6mm (0.24")	8.5mm (0.33")
Right Angle Mini Probe Probe Length: 400mm (15.70”)^c	T456CNM3R90E	16mm (0.63”)	4mm (0.16”)	6mm (0.24")	8.5mm (0.33")

Non-Ferrous - Graphite (N)
Right Angle Mini Probe Probe Length: 45mm (1.77”)^c	T456CNMG3R90A	16mm (0.63”)	4mm (0.16”)	6mm (0.24")	8.5mm (0.33")
Right Angle Mini Probe Probe Length: 150mm (5.90”)^c	T456CNMG3R90C	16mm (0.63”)	4mm (0.16”)	6mm (0.24")	8.5mm (0.33")
Right Angle Mini Probe Probe Length: 400mm (15.70”)^c	T456CNMG3R90E	16mm (0.63”)	4mm (0.16”)	6mm (0.24")	8.5mm (0.33")

Scale 1: Range : 0-1500μm (0-60mils)
Accuracy^ae	±1-3% or ±2.5μm (±1-3% or ±0.1mil)
Range^d	0-1500μm (0-60mils)
Resolution	0.1μm: 0-100μm (0.01mil: 0-5mils) 1μm: 100-1500μm (0.1mil: 5-60mils)
Certificate
Description	Part Number	Minimum Headroom	Minimum Sample Diameter^b	Minimum Convex Surface Diameter	Minimum Concave Surface Radius
Ferrous (F)
Straight Probe Probe Length: 45mm (1.77”)^c	T456CF1S	85mm (3.35”)	4mm (0.16”)	4mm (0.16")	25mm (0.98")
Straight Probe - sealed Probe Length: 45mm (1.77”)^c	T456CF1E	85mm (3.35”)	4mm (0.16”)	4mm (0.16")	25mm (0.98")
Scan Probe Probe Length: 45mm (1.77”)^c	T456CF1U	86mm (3.38”)	15mm (0.59”)	Flat Surface	Flat Surface
Scan Probe - armoured Probe Length: 45mm (1.77”)^c	T456CF1UARM	140mm (5.51”)	15mm (0.59”)	Flat Surface	Flat Surface
90° Probe Probe Length: 45mm (1.77”)^c	T456CF1R	28mm (1.10”)	4mm (0.16”)	4mm (0.16")	25mm (0.98")
90° Mini Probe Probe Length: 45mm (1.77”)^c	T456CFM5R90A	16mm (0.63”)	4mm (0.16”)	3mm (0.12")	6.5mm (0.26")
90° Mini Probe - sealed Probe Length: 45mm (1.77”)^c	T456CFME5R90A	16mm (0.63”)	4mm (0.16”)	3mm (0.12")	6.5mm (0.26")
90° Mini Probe - sealed, 2m cable Probe Length: 45mm (1.77”)^c	T456CFME5R90A-2	16mm (0.63”)	4mm (0.16”)	3mm (0.12")	6.5mm (0.26")
PINIP™ Integral Probe	T456CF1P	170mm (6.69”)	4mm (0.16”)	4mm (0.16")	60mm (2.36")

Non-Ferrous (N)
Straight Probe Probe Length: 45mm (1.77”)^c	T456CN1S	85mm (3.35”)	4mm (0.16”)	10mm (0.39")	10mm (0.39")
90° Probe Probe Length: 45mm (1.77”)^c	T456CN1R	28mm (1.10”)	4mm (0.16”)	10mm (0.39")	14mm (0.55")
Mini 90° Probe Probe Length: 45mm (1.77”)^c	T456CNM5R90A	16mm (0.63”)	4mm (0.16”)	10mm (0.39")	8.5mm (0.33")
Mini 90°Probe Probe Length: 150mm (5.90”)^c	T456CNM5R90C	16mm (0.63”)	4mm (0.16”)	10mm (0.39")	8.5mm (0.33")
Mini 90° Probe Probe Length: 400mm (15.7”)^c	T456CNM5R90E	16mm (0.63”)	4mm (0.16”)	10mm (0.39")	8.5mm (0.33")
Anodiser Probe Probe Length: 45mm (1.77”)^c	T456CN1AS	100mm (3.94”)	4mm (0.16”)	10mm (0.39")	14mm (0.55")
PINIP™ Integral Probe	T456CN1P	180mm (7.09”)	4mm (0.16”)	10mm (0.39")	50mm (1.97")

Ferrous & Non-Ferrous (FNF)
Straight Probe Probe Length: 45mm (1.77”)^c	T456CFNF1S	88mm (3.46”)	F: 4mm (0.16”), N: 6mm (0.24”)	F: 4mm (0.16") N: 26mm (1.02")	12.5mm (0.49")
Straight Probe - armoured cable Probe Length: 45mm (1.77”)^c	T456CFNF1ARM	185mm (7.28")	F: 4mm (0.16”), N: 6mm (0.24”)	F: 4mm (0.16") N: 26mm (1.02")	12.5mm (0.49")
Scan Probe Probe Length: 45mm (1.77”)^c	T456CFNF1U	89mm (3.50”)	15mm (0.59”)	Flat Surface	Flat Surface
Right Angle Probe Probe Length: 45mm (1.77”)^c	T456CFNF1R	38mm (1.50”)	F: 4mm (0.16”), N: 6mm (0.24”)	F: 4mm (0.16") N: 26mm (1.02")	12.5mm (0.49")
PINIP™ Integral Probe	T456CFNF1P	180mm (7.09”)	F: 4mm (0.16”), N: 6mm (0.24”)	F: 4mm (0.16") N: 26mm (1.02")	65mm (2.56")

Scale 2: Range : 0-5mm (0-200mils)
Accuracy^ae	±1-3% or ±20μm (±1-3% or ±1.0mil)
Range^d	0-5mm (0-200mils)
Resolution	1μm: 0-1mm (0.1mil: 0-50mils) 10μm: 1-5mm (1.0mil: 50-200mils)
Certificate
Description	Part Number	Minimum Headroom	Minimum Sample Diameter^b	Minimum Convex Surface Diameter	Minimum Concave Surface Radius
Ferrous (F)
Straight Probe Probe Length: 45mm (1.77”)^c	T456CF2S	89mm (3.50”)	8mm (0.32”)	4mm (0.16")	25mm (0.98")
Scan Probe Probe Length: 45mm (1.77”)^c	T456CF2U	90mm (3.54”)	15mm (0.59”)	Flat Surface	Flat Surface
90° Probe Probe Length: 45mm (1.77”)^c	T456CF2R	32mm (1.26”)	8mm (0.32”)	4mm (0.16")	25mm (0.98")
Straight Probe - armoured cable Probe Length: 45mm (1.77”)^c	T456CF2ARM	138mm (5.43”)	8mm (0.32”)	4mm (0.16")	25mm (0.98")
Telescopic Probe Probe Length: 56-122cm (22-48”)^c	T456CF2T	36mm (1.42”)	8mm (0.32”)	4mm (0.16")	25mm (0.98")
Soft Coating Probe Probe Length: 45mm (1.77”)^c	T456CF2B	89mm (3.50”)	8mm (0.32”)	Flat Surface	Flat Surface
Waterproof Probe - 1m (3’) cable Probe Length: 45mm (1.77”)^c	T456CF2SW	138mm (5.43”)	8mm (0.32”)	4mm (0.16")	40mm (1.98")
Waterproof Probe - 5m (15’) cable Probe Length: 45mm (1.77”)^c	T456CF2SW-5	138mm (5.43”)	8mm (0.32”)	4mm (0.16")	40mm (1.98")
Waterproof Probe - 15m (45’) cable Probe Length: 45mm (1.77”)^c	T456CF2SW-15	138mm (5.43”)	8mm (0.32”)	4mm (0.16")	40mm (1.98")
Waterproof Probe - 30m (98’) cable Probe Length: 45mm (1.77”)^c	T456CF2SW-30	138mm (5.43”)	8mm (0.32”)	4mm (0.16")	40mm (1.98")
Waterproof Probe - 50m (164’) cable Probe Length: 45mm (1.77”)^c	T456CF2SW-50	138mm (5.43”)	8mm (0.32”)	4mm (0.16")	40mm (1.98")
Waterproof Probe - 75m (250’) cable Probe Length: 45mm (1.77”)^c	T456CF2SW-75	138mm (5.43”)	8mm (0.32”)	4mm (0.16")	40mm (1.98")
PINIP™ Integral Probe	T456CF2P	174mm (6.85”)	8mm (0.32”)	4mm (0.16")	60mm (2.36")
Hi-Temperature PINIP™	T456CF2PHT	174mm (6.85”)	8mm (0.32”)	4mm (0.16")	60mm (2.36")

Non-Ferrous (N)
Straight Probe Probe Length: 45mm (1.77”)^c	T456CN2S	88mm (3.46”)	14mm (0.55”)	100mm (3.97")	150mm (5.90")
PINIP™ Integral Probe	T456CN2P	185mm (7.28")	14mm (0.55”)	100mm (3.97")	150mm (5.90")

Scale 3: Range : 0-13mm (0-500mils)
Accuracy^a	±1-3% or ±50μm (±1-3% or ±2.0mils)
Range^d	0-13mm (0-500mils)
Resolution	1μm: 0-2mm (0.1mil: 0-100mils) 10μm: 2-13mm (1.0mil: 100-500mils)
Certificate
Description	Part Number	Minimum Headroom	Minimum Sample Diameter^b	Minimum Convex Surface Diameter	Minimum Concave Surface Radius
Ferrous (F)
Straight Probe Probe Length: 45mm (1.77”)^c	T456CF3S	102mm (4.02”)	14mm (0.55”)	15mm (0.59")	40mm (1.98")
PINIP™ Integral Probe	T456CF3P	184mm (7.24”)	14mm (0.55”)	15mm (0.59")	45mm (1.77")

Non-Ferrous (N)
Straight Probe Probe Length: 45mm (1.77”)^c	T456CN3S	170mm (6.69”)	35mm (1.38”)	Flat Surface	Flat Surface

Scale FM7: Range: 0.60-3.8mm (25-150mils)
Accuracy^a	±7.5% or ±114μm (±7.5% or ±4.5mils)
Range^d	0.60-3.8mm (25-150mils)
Resolution	1μm: 0-1mm (0.1mil: 0-139.3mils) 10μm: 1-3.8mm (1.0mil: 39.4-150mils)
Certificate
Description	Part Number	Minimum Headroom	Minimum Sample Diameter^b	Minimum Convex Surface Diameter	Minimum Concave Surface Radius
Ferrous (F)
45° Angle Mini Probe Probe Length: 45mm (1.77”)^c	T456CFM7R45A	20mm (0.79”)	6.5 mm (0.26’’)	-	-

Scale 6: Range : F: 0-25mm (F: 0-980mils) N: 0-30mm (N: 0-1200mils)
Accuracy^a	±1-3% or ±100μm (±1-3% or ±4.0mils)
Range^d	F: 0-25mm (F: 0-980mils) N: 0-30mm (N: 0-1200mils)
Resolution	10μm: 0-2mm (1mil: 0-100mils) 100μm: 2-30mm (10mils: 100-1200mils)
Certificate
Description	Part Number	Minimum Headroom	Minimum Sample Diameter^b	Minimum Convex Surface Diameter	Minimum Concave Surface Radius
Ferrous (F)
Straight Probe Probe Length: 45mm (1.77”)^c	T456CF6S	150mm (5.90”)	51 x 51mm2 (2.17 x 2.17 inch2)	35mm (1.40")	170mm (6.70")
Straight Probe - armoured cable Probe Length: 45mm (1.77”)^c	T456CF6ARM	190mm (7.48”)	51 x 51mm2 (2.17 x 2.17 inch2)	35mm (1.40")	170mm (6.70")

Non-Ferrous (N)
Straight Probe Probe Length: 45mm (1.77”)^c	T456CN6S	160mm (6.30”)	58mm (2.29”)	Flat Surface	Flat Surface
Straight Probe - armoured cable Probe Length: 45mm (1.77”)^c	T456CN6ARM	200mm (7.87")	58mm (2.29”)	Flat Surface	Flat Surface

Scale 7: Range : 0-31mm (0-1220mils)
Accuracy^a	±1-3% or ±100μm (±1-3% or ±4.0mils)
Range^d	0-31mm (0-1220mils)
Resolution	10μm: 0-2mm (1.0mil: 0-100mils) 100μm: 2-31mm (10mils: 100-1220mils)
Certificate
Description	Part Number	Minimum Headroom	Minimum Sample Diameter^b	Minimum Convex Surface Diameter	Minimum Concave Surface Radius
Ferrous (F)
Straight Probe armoured cable Probe Length: 45mm (1.77”)^c	T456CF7ARM	200mm (7.87")	55 x 55mm² (2.17 x 2.17 inch²)	40mm (1.58")	170mm (6.70")

a. Whichever is the greater
b. FNF (F): FNF probe in F Mode / FNF (N): FNF probe in N
c. Probe length is measured from X to Y
d. Excluding Scan Probe end cap
e. Scan Probe accuracy is ±3% or ±0.02mm (0.8mil) with cap fitted, ±1-3% or ±0.02mm (0.8mil) without cap, when calibrated using a sample of the uncoated substrate
: Test Certificate supplied as standard.
Elcometer 456 Probes are covered by a one-year warranty

Xem thêm Thông số kỹ thuật ▼

CÔNG TY THIẾT BỊ CÔNG NGHỆ NĂNG LỰC - SÀI GÒN
Địa Chỉ: Số 01, Đường Võ Thành Trang, P.11, Tân Bình, Hồ Chí Minh
Địa chỉ văn phòng: Tòa Nhà An Phú, 117-119 Lý Chính Thắng, Phường 7, Quận 3, Hồ Chí Minh
Điện thoại: 02.866.848.638
Hotline : 0976 299 749 (Mr Tuấn, Giám Đốc Kinh Doanh)
Email: [email protected]

Khách hàng cần tư vấn thêm vui lòng liên hệ :

Mr. Tuấn : 0976.299.749 ( Giám Đốc Kinh Doanh )

Email: [email protected]

Mr. Khanh : 0935.001.617 (Trưởng Phòng Kinh Doanh )

Email: [email protected]

Phòng chăm sóc, hỗ trợ tiếp nhận kỹ thuật, báo giá

Mr. Hoàng Anh: 0812.999.909

Email: [email protected]

Mr. Phúc: 0366.519.915

Email: [email protected]

If you need further advice, please contact us (for foreign customers only)

Mr. Vinh: 0908.744.225 (SRM/ Supply Relationship Manager)

Email: [email protected]

Xin Lưu Ý: Quý Khách vui lòng đính kèm số điện thoại hoặc email vào trong phần nội dung câu hỏi để nhân viên tư vấn có thể phản hồi lại sớm nhất có thể.
Hoặc liên hệ trực tiếp thông qua website nangluc.vn để được hỗ trợ nhanh nhất có thể. (Vì form câu hỏi ở dưới hiện tại không hiệu lực. Mong quý khách thông cảm)
Xin Trân Trọng Cảm Ơn!
