Đồng hồ đo độ dày lớp phủ trên nền Sắt (Thép) - POSITESTF / POSITESTG | NeurTek Instruments

Đồng hồ đo độ dày lớp phủ trên nền Sắt (Thép) - POSITESTF / POSITESTG | NeurTek Instruments

Overview:

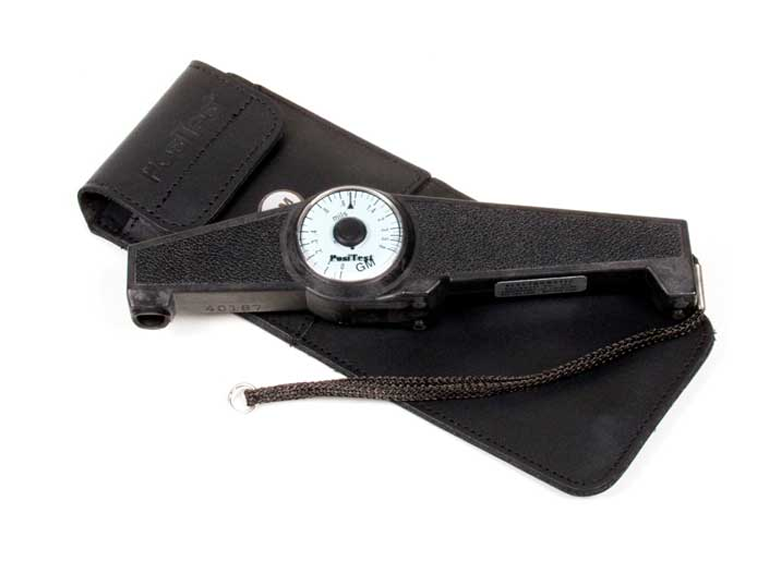

Rugged mechanical dial-type mil gage. Measures coating thickness on ferrous (steel) substrates.

PosiTest magnetick pull-off thickness gage for the non-destructive measurement of non-magnetic coatings (paint, enamel, galvanizing, metalizing, plating, etc.) on steel.

Features:

Certificate of Calibration showing traceability to PTB included with every gage

Matching Calibration Standards and Procedures available for every model

Highly wear resistant Carbide Probe for longest life and continuous accuracy

Remove center of dial cover for easy calibration adjustment

Conforms to national and international standards

Extra rugged housing, not affected by mechanical shock, water, acid or solvents

Unique overall design, fully supported, positive positioning, no pivoting tendencies during measurement

Can be used fully supported or with only the front probe area contacting the surface

Functions on a permanent rare-earth cobalt magnet

No batteries/electronics

2 year warranty

Easy To Use

Positive visual and audible indicators to designate when thickness reading is established

“V” grooves in probe housing and Gage base allow correct positioning on cylindrical objects

Compact, lightweight, precisely balanced, independent of gravity – can be used in any position

GO/NO-GO button can be pre-set for rapid measurement

Probe contact and dial rotation all in a one-finger operation

Furnished with wrist strap and instructions in a high quality

leather case with belt loops for your convenience
