Thiết bị tủ kiểm tra chất lượng, độ bền sản phẫm Mode TO-DT-20 hãng Test One

Thiết bị tủ kiểm tra chất lượng, độ bền sản phẫm Mode TO-DT-20 hãng Testone

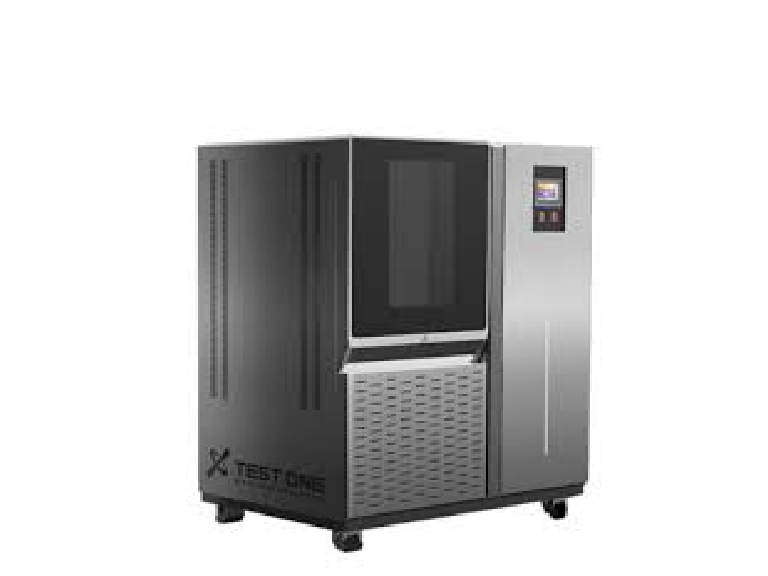

Model: TO-DT-20

[Specification]

1 MAIN FRAME

- Base Plate : SS400 Base

- Base Frame : Steel Welded structure

- Vibration Pad

- Grip Adapter (Material : SUS)

- Load Cell Housing & Pin (Material : SUS)

- Precision Ball Screw & Nut

- Support Slide LM Guide

- Control Box Mini Box & Sub Plate, etc.

- Proximity Sensor & Mount Plate

- Electric Wiring & Duct, Other Electrical Materials

- Sample Clamping Grip & Jig (Material : SUS)

- Dimension : Approx. 850 (W) x 900 (D) x 1800(H) mm

- Total Weight : Approx. 350 kg

- Main Power : 220 V 3P or 380 V 3 P 60 Hz





2 LOAD UNIT PART

- Max Load Capacity : 20 kgf

- Test Speed Range : 1~10 Cycle/min

Accuracy : ±0.1%

- Load Cell 1 SET

Max Load Capacity : 20 kgf

Linearity : ±0.05% R.O

Repeatability : ±0.02% R.O

Resolution : 1/100,000

Operating Temperature Range : -40 ~ 130 °C

Accuracy : ±0.5%



Over Load : 150% (Overload protection of axial-direction )

- Test Stroke : 650 mm

- Stroke Resolution : 0.001 mm

- Driving System

AC Servo Motro 100 W

AC Servo Driver

Precision Ball Screw & Nut

Support Slide LM Guide

Coupling

Limit Sensor & Blacket





3 DATA MEASURING & CONTROL SYSTEM

Dynamic Strain Amplifier(Load)

- Rated Output : Voltage ±10 V (Load Resistance more than 200 Ω)

- Current : 4 ~ 20 mA (Load Resistance less than 300 Ω)

- Zero Adjustment Range : 10%, 10 revolutions

- Sensitivity Adjustment Range: 1500 Multiplier

- S/N Ratio: 51 dB

- Response Frequency: DC t~ 20 kHz (-3dB)

- Low Pass Filter : 10 Hz, 100 Hz, 1 kHz, Pass

Motion Controller

32-bit PCI bus, plug & play

- Pulse output rate up to 2.4 MHz

- Pulse output options: OUT/DIR, CW/CCW

- 2 axes linear interpolation

- Programmable acceleration and deceleration time

- Trapezoidal and S-curve velocity profiles

- Easy interface to any stepping motors, AC or DC servo,

- Linear or rotary motors

- 28-bit up/down counter for incremental encoder



AD Board

- Supports a 32-bit 5 V PCI bus

- 16-bit A/D resolution

- Up to 100 kS/s sampling rate (PCI-9114DG)

- Up to 250 kS/s sampling rate (PCI-9114A-DG and

- 32-CH single-ended or 16-CH differential analog inputs

- Bipolar or unipolar analog input ranges

- Onboard 1 k-sample A/D FIFO

- Programmable gains:

- 16-CH isolated digital inputs and 16-CH isolated digital outputs

- 2500 VRMS optical isolation for digital inputs and outputs





Control PC

- CPU : G2030(Intel, 3.0 GHz)

- RAM : DDR 4 GB

- CPU Board : IMBA-#REF!(IEI)

- HDD : 1 TB(WD, 7200RPM)

- CD-ROM : DVD-Multi(Samsung)

- OS : WINDOWS 7 Pro(DSP, 32-bit)

▶ Accessories

1) 22” LED monitor

2) Key board

3) Mouse

DAQ Software

Maker: Testone co., ltd.



Settings: DAQ module settings, Sampling rate, measurement channel and sensor types,

storage methods

Display: bar, line, number

Multi Axis display, cursor & zooming

Save and load the setting file

Save as excel the measure data and Save the graphs

Data Comparison and Analysis

Motor operating program

4 TEST CHAMBER

- Internal Dimensions : Approx. 450 (W) x 450 (D) x 600 (H) mm

- External Dimensions : Approx. 700 (W) x 700 (D) x 900 (H) mm

- Temperature Range : -40°C∼120°C

- Humidity Range : 30% ~ 98%

- Temperature & Humidity Accuracy : ± 1.0 °C / ± 3.0 %

- Temperature & Humidity Controller : Touch Screen Type Controller

(Model: TEMI 2500) SD Card data memory

RS232C PC Interface

- Temperature & Humidity Sensors : Pt 100Ω 0.1 Grade / Electric sensor

- Temperature & Humidity Control System : S.C.R

- Temperature slope (Down) : 90°C to -40°C / 50min

- Heater : SUS304 Fin-type sheathed heater

- Heater Capacity: Dry Heater : 4.0 kW / Wet Heater : 4.5 kW

- Refrigeration System: Mechanical dual-stage refrigeration system

- Refrigeration Capacity: AC 380V 3.75 kW × 2 (High temp., Low temp.)

- Outdoor Unit Installation: Installation outside of Chamber

- Blower: SUS304 Sirocco fan (∅175×80) 2EA

- Interior Material: SUS304 Stainless steel plate

- Exterior Material: Steel plate (Powder coating)

- Insulation : Ceramic wool & Glass wool 150mm

- Door : Front open type door (Viewing window)

Viewing window (Hot-wire glass)

- Safety devices : NFB / E.O.C.R / Over heat breaker

- Power : AC380V / 3P / 40A

4 ENGINEERING

- M/C Design

- Electrical & Control Construction

- Setup & Operating

- Setting & Try & Manuals
