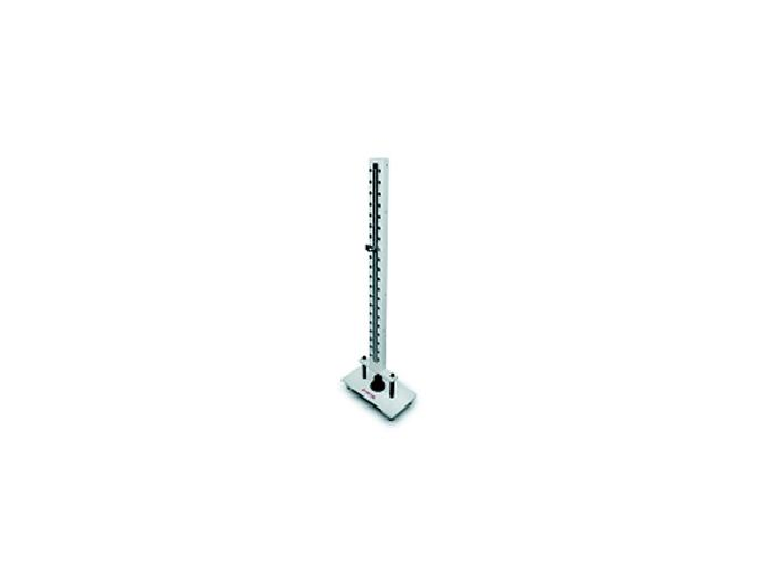

IMPACT TESTER MODEL TO-300DU Test one

IMPACT TESTER MODEL TO-300DU Test one

Application Field

Coating products such as paint, film, etc., a plastic jet

Standard

ASTM D 1794

Product Description

◇ This tester is mainly used to evaluate the bond strength for film of paint such as mobile phone case, a plastic jet, a film, etc. by applying a shock. A coated specimen is placed horizontally, and a radius shaped punch becomes close. After selecting a certain height, a weight that has a constant load falls off.



◇ Option

Drop Height 1000mm

Model   TO-300DU

Falling Height                     50 ～ 500mm

Falling Interval                   50mm

Falling Weight                    300g, 500, 1000g

Punching Hammer              R12.7, 6.3, 4.7, 3.2, 1.6mm

Concave of dies                  Plate, 6.3, 3.2, 1.6mm

Dimensions                         400W×300D×760Hmm

Weight (Approx)                 45kg
