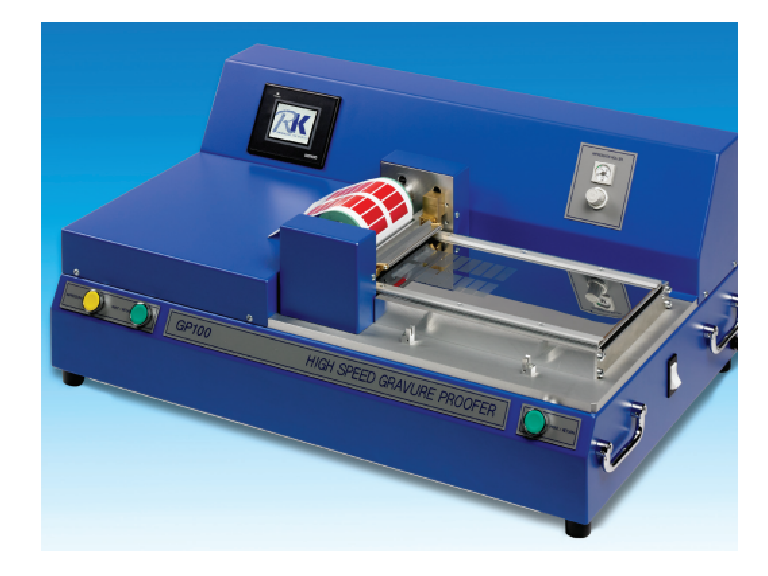

Thiết bị máy in tốc độ cao kiểm tra model GP 100 HIGH SPEED GRAVURE PROOFER hãng RK Paint coat instruments

PRINTING PLATES

The GP100 uses the same electronically engraved printing

plates as used on our well known Printing Proofer and are

manufactured in exactly the same way as production cylinders.

A choice of one or more of the standard plates available will

normally be satisfactory but special plates including those with a

logo and/or company details can be supplied. Maximum engraved

area: 160 x 95mm.

A.Solid Area Plate

(KPP.10) 100 lines/inch (40 lines/cm) Density: 100%

(KPP.11) 150 lines/inch (60 lines/cm) Density: 100%

(KPP.12) 200 lines/inch (80 lines/cm) Density: 60%

B.Single 3Wedge Plate

(KPP.13) 150 lines/inch (60 lines/cm)

Densities: 100-80-60%

C.1 + 4Wedge Plate

(KPP.14) 150 lines/inch (60 lines/cm)

Densities: Half area 90% and adjacent step wedges

100-90-80-70%

D.Double 8Wedge Plate

(KPP.15) 150 lines/inch (60 lines/cm)

Densities: 100-95-90-85-80-75-70-60%

(KPP.15a) 300 lines/inch (118 lines/cm)

Densities: 100-95-90-85-80-75-70-60%

(KPP.15ab) 150 & 300 lines/inch

Equivalent flexo anilox volumes 19 - 4cm³/m²

when printed by gravure

Densities: 100-95-90-85-80-75-70-65-60%

E.Gravure Utility Plate

(KPP.18) 175 lines/inch (70 lines/cm)

Column 1: Solid area, density 100%

Column 2: Densities 100-90-80-70-60-50-40-30-20-10%

Column 3: Vignette 100-0%

GRAVURE

Ink is transferred from an electronically engraved printing plate directly onto the substrate, which is attached to the rubber impression roller. Doctor blade and roller adjustments are made pneumatically allowing repeatable settings for future tests.

CLEANING

The essential job of cleaning various machine components following each proofing run has been simplified by careful design. The illustration (below) shows the doctor blade being removed for cleaning. It can be seen that the printing plate and impression roll are easily accessible for cleaning.
