Brand: Affri

Origination: USA

Application: For hard steel, nit riding, cementation, roller, steel for tools, soft and hard materials

Overview:

METALTEST

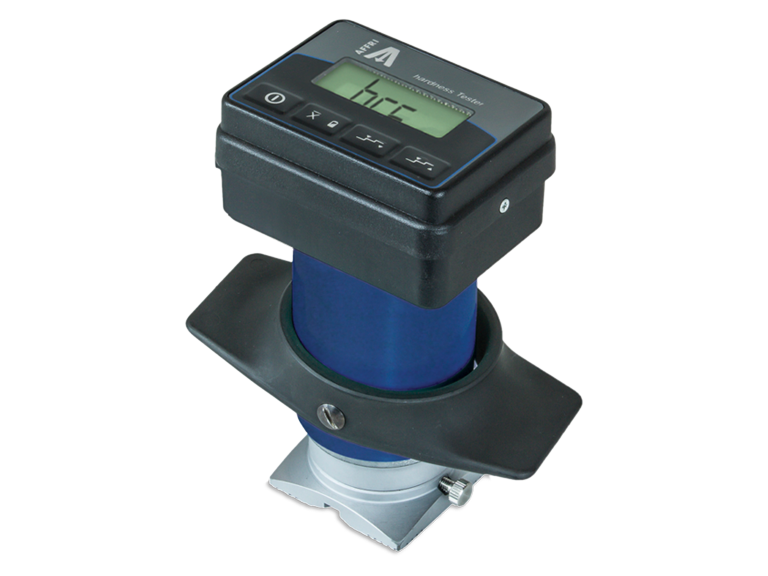

METALTEST is a wireless hardness tester with commands and LCD incorporated on the top. It is very handy and easy to use: just place the hardness tester on the surface to be examined and press the handgrip right down; release the pressure and the piece hardness immediately appears on the display.

METALTEST portable hardness tester is designed for hardness tests on particularly bulky items, materials in warehouse and pieces which cannot be tested on a bench hardness tester.

Easy to use in every position even inverted positon, no cables, excellent accuracy and reproducible results from measure of penetration depth under constant force.

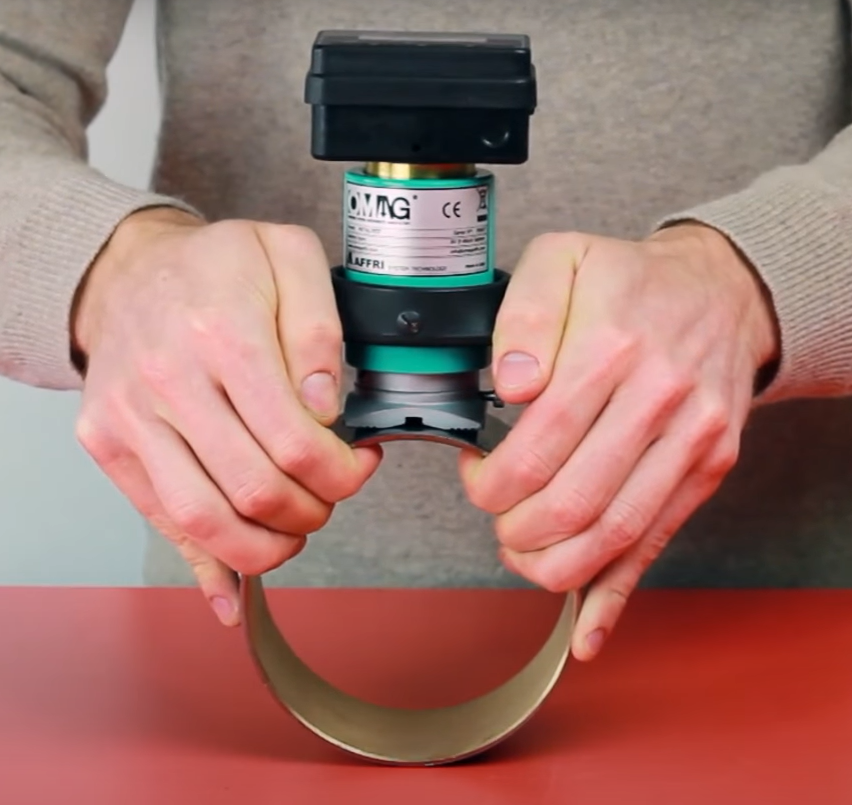

Small penetration assure excellent results on thin surfaces as chromium coating, thin parts like shave blade profiles and pipes with a wall thickness of 0.08 mm.

It does not spoil the surface because it produces micro-indentations.

METALTEST has infinite range of measure from very soft materials as aluminium to very hard like carbide tungsten: from HB=5 to HV1=1865

Features:

Portable Hardness Testers METALTEST

Perfect and effective Measurements

Perfect accuracy in any test condition even at the first measure, no need of a second test

For every kind of metal both very hard and soft

Suitable for flat, round and irregular pieces

No need for adjustment if used inclined or inverted

Not affected by thickness of sample

For thin surfaces: down to 0.08 mm thickness and large parts

10 different scales on the display

Memory storage of 100 result values (each scale)

Average of the stored results

Repeatability ± 0.5 HR on test block

Fields of Application

Hardness Test	Hardness Scale Range	Application Range
HRA – Rockwell A	20 – 92	For hard steel, nit riding, cementation, roller, steel for tools, soft and hard materials
HK – Knoop	25 – 97	For soft steel, non-ferrous metals
HRC – Rockwell C	0 – 80	For hard steel, nit riding, cementation, roller, steel for tools
HRB – Rockwell B	26 – 100	For soft steel, non-ferrous metals
HR30T – Rockwell 30T	16 – 83	For soft steel, non-ferrous metals
HB5 – Brinell 5	5 – 205	For aluminum, soft aluminum alloy cast iron, bronze, brass
HB30 – Brinell 30	66 – 884	For heat treated steel, annealed steel, drawn products, deep-drawn strip
HV – Vickers	13 – 1865	For all material
R – Tensile Module N/mm2	226 – 2898	For heat treated steel, annealed steel, drawn products, deep-drawn strip
HR15N-Rockwell HR15N	69 – 93	For hard steel, nit riding, cementation, roller, steel for tools



Standard:

Portable Hardness Testers METALTEST

ASTM E110

DIN 50157

Technical Characteristics:

Fixing Accessories For Round Cylinders

It works on the Rockwell principle, with pre-load and load

Very compact with microprocessor incorporated

Water proof LDC

The hardness value shown on the display is fixed and memorized until the next test

Automatic zeroing and memory of last result

It runs off one 9 V battery, which last for 2000 tests

Easy to use: just place the hardness tester on the surface to be examined and press the handgrip right down; release the pressure and the hardness immediately appears on the display

Diamond cone penetrator

It is supplied with a calibrated reference specimen

Dimensions: 16x16x12 cm

Weight: 1.2 Kg

Standard Accessories

Diamond Indenter

HRC test block

Adjustable base for test on flat and round pieces up to ø 200mm

Tables and instructions sheet for use

Certificates traceable to primary lab

Base for long screws

Triangular base for irregular surfaces + round over ø 200mm

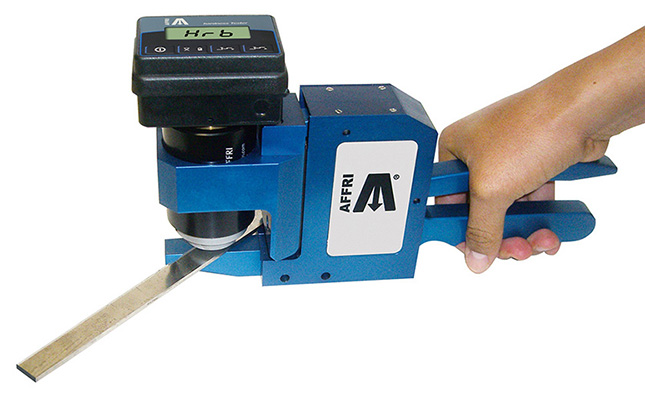

Clamping handle for fast measure on metal sheets

Order:

METALTEST

Test Load: 5.6 Kgf (54.92N)

Standard Configurations

• Main unit
• Diamond Indenter
• HRC test block
• Adjustable base for test on flat and round pieces up to ø 200mm
• Tables and instructions sheet for use
• Certificates traceable to primary lab

Optional Accessories

Adjustable Support 0-70 mm D 25mm

Bench Support for METALTEST & MKII (H 110 D 75 mm)

BASE ART 10 65x65mm over 200mm ø

Clamping Handle for metaltester 0-35 MM

Triangular base for irregular surfaces + round over ø200 mm

Magnetic triangular base

Base for long screws from ø10 to ø110 mm

Base for long screws ø85 / ø240

Open clamping conical base for support necessary for item 079.0.0.001 ; 073.0.0.000 ; 077.0.0.000

Ring nut "Bram" for bench support or handly support

Extension kit METALTESTER, MKII

Base for inside ø150/300 mm

Flat anvil (stem Ø10)

V anvil (stem Ø10) for support or pincer

Double spot anvil (stem Ø10)

Conversion table

Spare Parts

Indenter (M3)for portable H.T.

Key for Indenter RS METALTESTER

Spare battery (9v)
