Brand: Affri

Origination: USA

Application: METALTESTER MK II is used for hardness testing on almost all metals: chromed surfaces, nitride surfaces, aluminum, brass, copper, and bronze, metal wire and hard and soft steel. Hard and soft plastics. Ceramic and glass materials.

Overview:

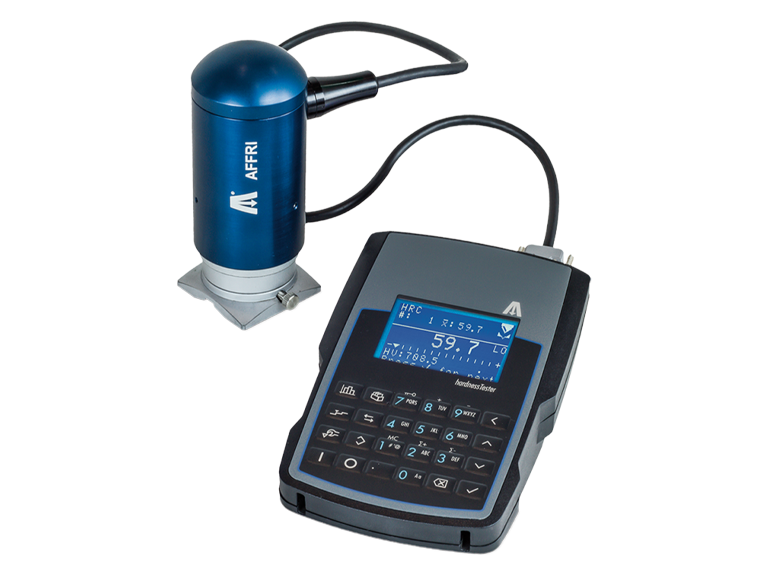

METAL TESTER MK II

METAL TESTER MK II is a digital portable hardness tester for Rockwell, Superficial Rockwell, Brinell and Vickers methods in laboratory or on location with HR direct digital read-out and conversion to other scales through included tables. In compliance with ASTM E110 and ISO 50157 hardness standards. MKII is a small and light portable hardness tester where load forces are applied through a dynamometric load cell and it is operative up to 360° degrees of positioning, even upside down. It is equipped with a LCD operating console with a user friendly interface and extremely easy test settings. Clear view of results, real time statistics, graphs and large archive storage. Hardness tests in laboratory or in loco on tubes, profiles, valves and every bulky or small pieces starting from a thickness of 0.06 mm: small penetration assures excellent results on thin surfaces such as chromium coating or on parts as thin as shave blade profiles.

With the METALTESTER MKII portable durometer it is possible to perform quick and precise Rockwell, Brinell and Vickers hardness measurements as well as determine ultimate strength anywhere, inside or outside your production department. A diamond indenter ensures precise hardness readings on all surfaces. A variety of accessories to facilitate testing on small or uneven shaped items, or on finished items. Tester’s limited weight and the compact size make it an extremely efficient durometer to test any surface, any large or unwieldy item or any already assembled product. The narrow and elongated head is ideal to reach surfaces such as the inner parts of castings or of finished housings. It is extremely easy to use: simply choose the desired hardness scale, put the test probe on the surface and apply a light pressure to start the entire test cycle. At the end of the test, the instrument beeps a sound signal and the result immediately appears on the wide graphic display. At this point the hardness tester is once again ready for a new measurement. Data simultaneously shown on the LCD graphic display: detected values in various simultaneous scales, average of the values with automatic updating, battery level, findings according to the tolerance limits expressed both numerically and graphically, programmable test preload and load timer, sound signal to indicate the end of the cycle.

It is also possible to display the temperature and the date, to set data memory up to 3500 values and various files with alphanumerical codes, to display statistics and Gauss diagram. Data output, to connect a printer or a computer, with an RS232C connection or USB connection upon request.

Operating Console

Smart digital console with LCD screen, large hard disk for data and statistics storage and data outputs that connect to a printer or computer, with an RS232C connection or USB connection upon request. Hardness testing data are simultaneously shown on the LCD graphic display: detected values in various simultaneous scales, average of the values with automatic updating, battery level, findings according to the tolerance limits expressed both numerically and graphically, programmable test preload and load timer, statistics and Gauss diagram, sound signal to indicate the end of the cycle. It is also possible to display the temperature and the date.

Standard:

Portable Hardness Testers METAL TESTER MK II

ASTM E110

DIN 50157

Fields of Application

Hardness Test	Hardness Scale Range	Application Range
HRA – Rockwell A	20 – 92	For hard steel, nit riding, cementation, roller, steel for tools, soft and hard materials
HK – Knoop	25 – 97	For soft steel, non-ferrous metals
HRC – Rockwell C	0 – 80	For hard steel, nit riding, cementation, roller, steel for tools
HRB – Rockwell B	26 – 100	For soft steel, non-ferrous metals
HR30T – Rockwell 30T	16 – 83	For soft steel, non-ferrous metals
HB5 – Brinell 5	5 – 205	For aluminum, soft aluminum alloy cast iron, bronze, brass
HB30 – Brinell 30	66 – 884	For heat treated steel, annealed steel, drawn products, deep-drawn strip
HV – Vickers	13 – 1865	For all material
R – Tensile Module N/mm2	226 – 2898	For heat treated steel, annealed steel, drawn products, deep-drawn strip
HR15N-Rockwell HR15N	69 – 93	For hard steel, nit riding, cementation, roller, steel for tools

Standard Accessories

Recharger for battery (220 V)

Indenter (M3) for portable hardness tester

Adjustable caliper base for portable

V+ flat face base for round max ø 200mm

Carrying case

Test block with certificate

User manual

Optional Accessories

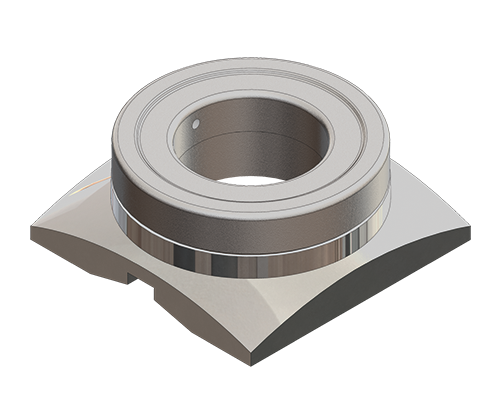

Oversized base for round items over ø 200mm Base obtained from a solid piece with a 120O V notch to test on round surfaces diameter over 200mm
Base for extruders (ø 10 up to ø 110) Base obtained from a solid piece with a 120O V notch to test on extruders or items with helical surfaces (i.e. drills, trapezoid screws) with diameters ranging from 10 mm to 110mm

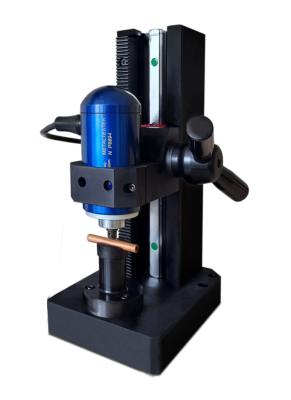

Sliding Support Very useful accessory in a laboratory, where it is necessary to test small sized items. It comes with an anvil and various accessories.

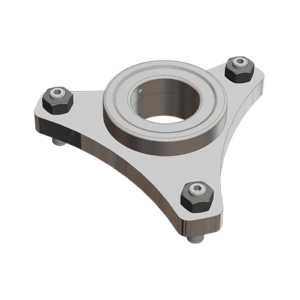

Oversized base for round items with a diameter greater than 200mm Base obtained from a solid piece with three equidistant points to test round items with a diameter from a minimum 200 mm to a maximum of 2000 mm

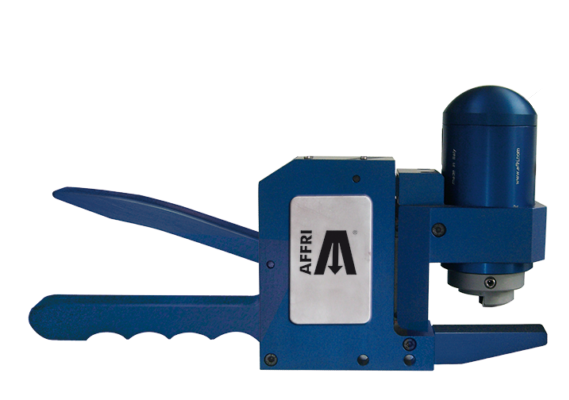

Clamping Vise Very useful instrument especially for hard-to-test items with odd shapes (i.e. tests on spring wires). It comes with anvil and various accessories.

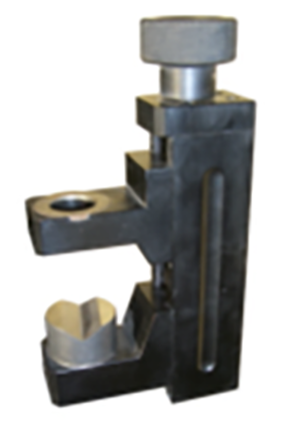

Vise Support Useful accessory to test pipes or round items with a diameter up to 70 mm. It comes with one fixed anvil with a 120O V notch

Order:

METALTESTER MK II

Test Load: 2 kgf (19.614 N)

Standard Configurations

Main unit

Recharger for battery (220 V)

Indenter (M3) for portable hardness tester

Adjustable caliper base for portable

V+ flat face base for round max ø 200mm

Carrying case

Test block with certificate

User manual

---

METALTESTER MK II

Test Load: 5.6 kgf (54.92 N)

Standard Configurations

Main unit

Recharger for battery (220 V)

Indenter (M3) for portable hardness tester

Adjustable caliper base for portable

V+ flat face base for round max ø 200mm

Carrying case

Test block with certificate

User manual

---

Optional Accessories

Adjustable Support 0-70 mm D 25mm

Bench Support for METALTEST & MKII (H 110 D 75 mm)

BASE ART 10 65x65mm over 200mm ø

Clamping Handle for metaltester 0-35 MM

Flat support 17mm

Round Support  for tube > ø10 mm

Round Support  for tube > ø13 mm

Round Support  for tube > ø17 mm

Round Support  for tube > ø12 mm

Round Support  for tube > ø8 mm

Support for anvils

Motorized support for MKII metaltester - EDA300

Printer 20 columns

Triangular base for irregular surfaces + round over ø200 mm

Magnetic triangular base

Base for long screws from ø10 to ø110 mm

Base for long screws ø85 / ø240

Open clamping conical base for support necessary for item 079.0.0.001 ; 073.0.0.000 ; 077.0.0.000

Round base

Extension kit METALTESTER, MKII

Base for inside ø150/300 mm

Flat anvil (stem Ø10)

V anvil (stem Ø10) for support or pincer

Double spot anvil (stem Ø10)

Belt for METALTESTER MKII

Interface USB for PC data connection

Statistic STAT Software

---

Spare Parts

Indenter (M3)for portable H.T.

Key for Indenter RS METALTESTER

Ring nut "Bram" for bench support or handly support

Conversion table

Recharge Battery
