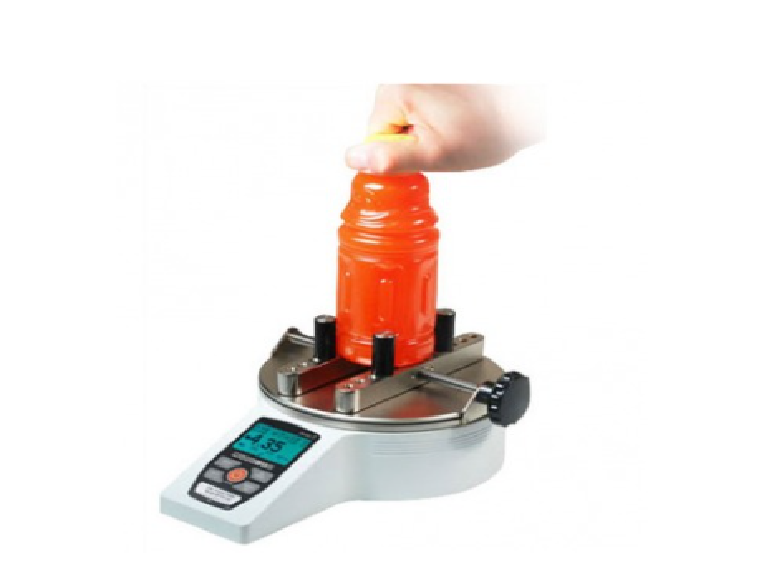

Máy đo lực vặn nắp chai TT01 Mark 10 | NIDEC SHIMPO

Specfications

Accuracy

±0.3% of full scale

Sampling rate

7,000 Hz

Power

AC or rechargeable battery. Multi-step low battery indicator is displayed, tester shuts off automatically when power is too low.

Battery Life

Backlight on: up to 7 hours of continuous use

Backlight off: up to 24 hours of continuous use

Measurement units

ozFin, lbFin, lbFft, Nm, Ncm

Outputs

USB / RS-232: Configurable up to 115,200 baud.

Mitutoyo: Serial BCD suitable for all Mitutoyo SPC-compatible devices.

Analog: ±1 VCD, ±0.25% of full scale at capacity.

General purpose: Three open drain outputs, one input.

Set points: Three open drain lines.

Configurable Settings

Digital filters, outputs, automatic output/data storage/zero, automatic shutoff, default settings, key tones, backlight, audio alarms, passwords, calibration

Safe overload

150% of full scale (display shows “OVER” at 110% and above)

Weight

8.4 lb (3.8 kg)

Included items

Universal voltage AC adapter, battery, quick-start guide, USB cable, resource CD (USB driver, MESURTM Lite software, MESURTMgauge DEMO software, and user’s guide), and NIST-traceable certificate of calibration with data.

Warranty

3 years (see individual statement for further details)

Model

ozFin

lbFin

lbFft

Ncm

Nm

CAP-TT01-12

192

0.1

12

0.005

1

0.0005

135

0.1

1.35

0.001

CAP-TT01-25

400

0.1

25

0.005

2

0.0005

290

0.1

2.9

0.001

CAP-TT01-50

320

0.2

50

0.02

4

0.002

570

0.5

5.7

0.005

CAP-TT01-100

800

0.5

100

0.05

8

0.005

1150

0.5

11.5

0.005

Cap dia.

in mm

Phenolic/ Urea

Cap On Glass

Phenolic/Urea

Cap on Plastic

PP/PE Cap

on Glass

PP/PE Cap

on Plastic

Close Torque

Open Torque

Close Torque

Open Torque

Close Torque

Open Torque

Close Torque

Open Torque

15

90.39

45.19

67.79

33.90

135.58

79.09

90.39

45.19

18

101.69

56.49

79.09

45.19

146.88

90.39

101.69

56.49

20

112.99

56.49

90.39

45.19

169.48

101.69

112.99

56.49

22

124.28

67.79

101.69

56.49

192.07

112.99

124.28

67.79

24

135.58

67.79

112.99

56.49

203.37

124.28

135.58

67.79

28

158.18

79.09

135.58

67.79

237.27

135.58

158.18

79.09

33

203.37

101.69

169.48

79.08

271.16

158.18

192.07

90.39

38

225.97

112.99

192.07

79.09

327.66

192.07

214.67

101.69

43

248.57

124.28

203.37

101.69

372.85

225.97

248.57

124.28

48

271.16

158.18

225.97

112.99

293.76

248.57

271.16

135.58

58

316.36

158.18

271.16

135.58

497.13

293.76

327.66

158.18

70

395.45

203.37

316.36

158.18

587.52

361.55

395.45

192.07

89

508.43

248.57

406.75

208.37

734.40

451.94

508.43

248.57

100

564.92

282.46

451.93

225.97

847.39

429.34

564.92

282.46
