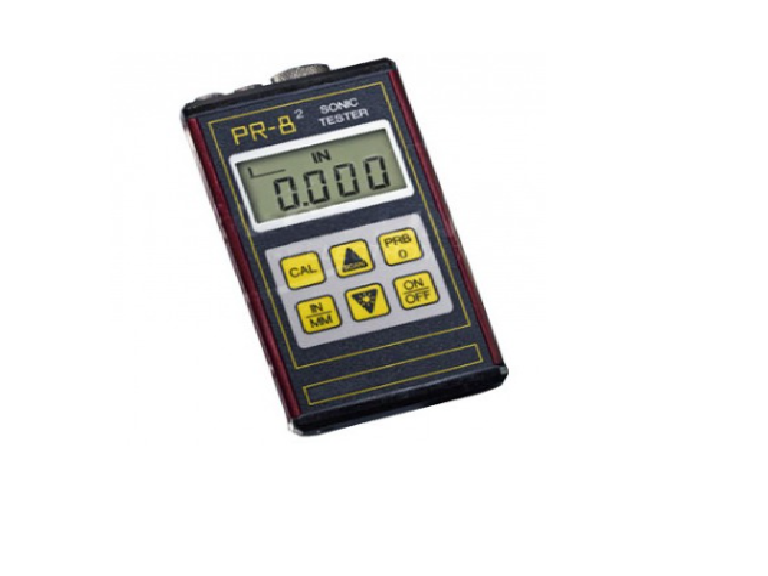

Thiết bị máy đo độ dày PR-82 Sonic Tester

Transducer and Probe Information

For Engine Blocks (Cylinders & Decks)

One probe is usually good for use on both Cast Aluminum and Cast Iron Engine Blocks. The 2 inch radius allows the probe to measure the concave surface inside cylinders. The radius is gentle enough that the same probe can also be used to measure on the flat surfaces "decks" on the block. This one probe will work for over 90% of Cast Aluminum or Cast Iron Blocks.

T-104-2120

> 0.500"/5MHz with 2 inch radius

> this is the standard probe supplied with PR-82

++ In instances where the above probe does not work, or if the block is made from a very old Aluminum Cast Aluminum, an alternate probe should be specified p/n T-104-4120 (0.500"-10MHz), also supplied with a 2" radius.

For Heads (Ports)

Probe selection depends upon type of material; cast iron or cast aluminum. This probe has a 0.55" radius and is supplied with either a 1 inch wand or 9 inch wand, depending upon user preference.

Cast Iron

> 0.250"/5MHz with 0.55" Radius

with 1 inch wand T-162-2110

with 9 inch wand T-132-2110

Cast Aluminum

> 0.250/10MHz with 0.55" Radius

with 1 inch wand T-162-4110

with 9 inch wand T-132-4110

For Chassis Tubing

This would be used by chassis builders as well as sanctioning bodies (i.e. NHRA, ARCA, etc.). One probe is normally suitable for any application, assuming they do not want "thru-paint" capability.

T-101-4000

> 3/16"-10MHz flat bottom (no radius)

For "thru-paint" capability, when measuring chassis tubing for use with the PR8V

T-102-2700

>0.250/5MHz Hi-Damp for use in MMX Mode

Specifications

Range:

Standard Range: 0.040 to 6.00 in / 1.00 to 150.00 mm

Range Cast Steel & AL: 0.040 to 1.50 in / 1.00 to 38.00 mm

Resolution:

0.001 inches (0.01mm)

Velocity Range:

0.0492 to 0.3936 in./ms

1250 to 9999 meters/sec

Units:

English & Metric (inch or mm)

Transducer Types:

Dual Element (1 to 10 MHz)

Power Source:

Two 1.5V alkaline or 1.2V NiCad AA cells.

Battery Life:

Typically operates for 200 hours on alkaline and 130 hours on NiCad.

Auto Power off:

if idle 5 min

Display:

Multi-function 4.5 digit liquid crystal display with 0.500 inch numerals, backlit for use in poor light conditions

Keyboard:

Sealed membrane that is resistant to both water and petroleum products.

Case:

Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed).

Operating Temperature:

-20 to 120F (-20 to 50C)

Weigth, net:

10 ounces (285 grams)

Dimensions:

2.5 W x 4.5 H x 1.24 D inches (6.35x11.43x3.15 cm)

Warranty:

5 year limited

Certification:

CE Approved, Factory calibration traceable to national standards
