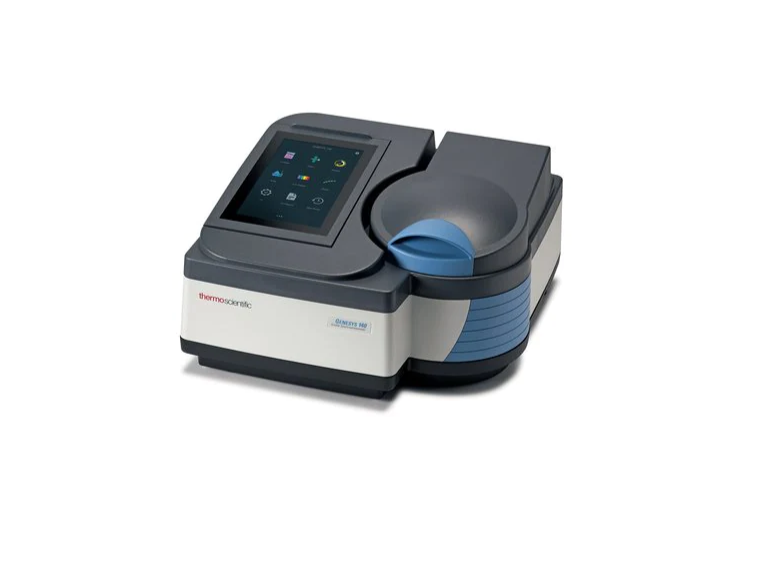

Thiết bị máy quang phổ GENESYS UV-Vispectrophotometer model 140, model 150

GENESYS 140 Visible Spectrophotometer

Baseline Flatness

±0.005 A

Compartments

Accommodates (optional):

8-position cell changer

4-position cell changer (long path cells)

Peltier thermostatted cell holder (20-60 °C)

Sipper accessory

Fiber optic probe coupler

Connections

Single USB-A

Duplex USB-A

Export data to network or PC via USB, Ethernet, or Wi-Fi USB adaptor, available

Print via USB, Ethernet or Wi-Fi USB adaptor available

Description

GENESYS 140 Visible Spectrophotometer

Detector Type

Dual Silicon Photodiodes

Display

7 in. High Definition Color Touchscreen, Tiltable, 800 x 1280 pixels

Dimensions (L x W x H)

35.5 x 38.5 x 19.5 cm

Light Source

Tungsten Halogen

Spectral Bandwidth

5 nm

Wavelength Range

325 to 1100 nm

Drift

(At 500 nm after 1 hour warmup) <0.0010 A/hr.

Electrical Requirements

External AC to DC converter. Voltage and Frequency (Hz) selected automatically, 100/240 V, 50/60 Hz

Keypad

Touchscreen

Lamp Life

>1000 hrs

Noise

(RMS at 500 nm 60 consecutive measurements)

≤0.00020A at 0A at 260 and 500 nm

≤0.00030A at 1A at 260 and 500 nm

≤0.00040A at 2A at 260 and 500 nm

Optical Design

Double Beam

Photometric Accuracy

±0.002A at 0.5A, ±0.004A at 1.0 A±0.008 A at 2.0A

Photometric Display

Photometric Range

-3A to +5A

–3A to +3.5A

Photometric Repeatability

±0.001 A at 1 A measured at 1.0 A at 546 nm

Printer Included

Snap-on printer available

Scan Speed

Automatic – up to 1800 nm/min.

Stray Light

<0.05%T at 340 nm and 400 nm

Warranty

2 years standard with 1 year extension upon registration of the instrument with Thermo Fisher Scientific within 6 months of purchase

Wavelength Accuracy

±0.5 nm

Wavelength Data Interval

0.2 nm, 0.5 nm, 1 nm, 2 nm, 5 nm

Wavelength Repeatability

< ±0.2 nm

Weight (Metric)

7.5 kg

Unit Size

Each

GENESYS 150 UV-Visible Spectrophotometer

Baseline Flatness

±0.002 A

Compartments

Accommodates (optional):

8-position cell changer

4-position cell changer (long path cells)

Peltier thermostatted cell holder (20-60 °C)

Sipper accessory

Fiber optic probe coupler

Connections

Single USB-A

Duplex USB-A

Export data to network or PC via USB, Ethernet, or Wi-Fi USB adaptor, available

Print via USB, Ethernet or Wi-Fi USB adaptor available

Description

GENESYS 150 UV-Visible Spectrophotometer

Detector Type

Dual Silicon Photodiodes

Display

7 in. High Definition Color Touchscreen, Tiltable, 800 x 1280 pixels

Dimensions (L x W x H)

35.5 x 38.5 x 19.5 cm

Spectral Bandwidth

2 nm

Wavelength Range

190 to 1100 nm

Drift

(At 500 nm after 1 hour warmup) <0.0005 A/hr.

Electrical Requirements

External AC to DC converter. Voltage and Frequency (Hz) selected automatically, 100/240 V, 50/60 Hz

Keypad

Touchscreen

Lamp Life

> 5 years typical, 3 years guaranteed

Noise

(RMS at 500 nm 60 consecutive measurements)

≤0.00020A at 0A at 260 and 500 nm

≤0.00030A at 1A at 260 and 500 nm

≤0.00040A at 2A at 260 and 500 nm

Optical Design

Double Beam

Photometric Accuracy

±0.002A at 0.5A, ±0.004A at 1.0 A±0.008 A at 2.0A

Photometric Display

Photometric Range

-3A to +5A

–2A to +3.5A

Photometric Repeatability

±0.001 A at 1 A measured at 1.0 A at 546 nm

Printer Included

Snap-on printer available

Scan Speed

Slow, medium and fast - up to 1600 nm/min.

Stray Light

< 1.0%T 198 nm (KCl) , <0.05%T at 220 nm (NaI), <0.03%T at 340 nm (NaNO2)

Warranty

2 years standard with 1 year extension upon registration of the instrument with Thermo Fisher Scientific within 6 months of purchase

Wavelength Accuracy

±0.5 nm

Wavelength Data Interval

0.2 nm, 0.5 nm, 1 nm, 2 nm, 5 nm

Wavelength Repeatability

< ±0.2 nm

Weight (Metric)

7.5 kg

Unit Size

Each

GENESYS 150 Visible Spectrophotometer with EU Power Cable

Baseline Flatness

±0.002 A

Compartments

Accommodates (optional):

8-position cell changer

4-position cell changer (long path cells)

Peltier thermostatted cell holder (20-60 °C)

Sipper accessory

Fiber optic probe coupler

Connections

Single USB-A

Duplex USB-A

Export data to network or PC via USB, Ethernet, or Wi-Fi USB adaptor, available

Print via USB, Ethernet or Wi-Fi USB adaptor available

Description

GENESYS 150 Visible Spectrophotometer with EU Power Cable

Detector Type

Dual Silicon Photodiodes

Display

7 in. High Definition Color Touchscreen, Tiltable, 800 x 1280 pixels

Dimensions (L x W x H)

35.5 x 38.5 x 19.5 cm

Spectral Bandwidth

2 nm

Wavelength Range

325 to 1100 nm

Drift

(At 500 nm after 1 hour warmup) <0.0010 A/hr.

Electrical Requirements

External AC to DC converter. Voltage and Frequency (Hz) selected automatically, 100/240 V, 50/60 Hz

Keypad

Touchscreen

Lamp Life

> 5 years typical, 3 years guaranteed

Noise

(RMS at 500 nm 60 consecutive measurements)

≤0.00020A at 0A at 260 and 500 nm

≤0.00030A at 1A at 260 and 500 nm

≤0.00040A at 2A at 260 and 500 nm

Optical Design

Double Beam

Photometric Accuracy

±0.002A at 0.5A, ±0.004A at 1.0 A±0.008 A at 2.0 A

Photometric Display

Photometric Range

-3A to +5A

–2A to +3.5A

Photometric Repeatability

±0.001 A at 1 A measured at 1.0 A at 546 nm

Printer Included

Snap-on printer available

Scan Speed

Slow, medium and fast - up to 1600 nm/min.

Stray Light

< 1.0%T 198 nm (KCl) , <0.05%T at 220 nm (NaI), <0.03%T at 340 nm (NaNO2)<0.05%T at 340 nm and 400 nm

Warranty

2 years standard with 1 year extension upon registration of the instrument with Thermo Fisher Scientific within 6 months of purchase

Wavelength Accuracy

±0.5 nm

Wavelength Data Interval

0.2 nm, 0.5 nm, 1 nm, 2 nm, 5 nm

Wavelength Repeatability

< ±0.2 nm

Weight (Metric)

7.5 kg

Unit Size

Each

GENESYS 150 UV-Visible Spectrophotometer with EU Power Cable

Baseline Flatness

±0.002 A

Compartments

Accommodates (optional):

8-position cell changer

4-position cell changer (long path cells)

Peltier thermostatted cell holder (20-60 °C)

Sipper accessory

Fiber optic probe coupler

Connections

Single USB-A

Duplex USB-A

Export data to network or PC via USB, Ethernet, or Wi-Fi USB adaptor, available

Print via USB, Ethernet or Wi-Fi USB adaptor available

Description

GENESYS 140 Visible Spectrophotometer with EU Power Cable

Detector Type

Dual Silicon Photodiodes

Display

7 in. High Definition Color Touchscreen, Tiltable, 800 x 1280 pixels

Dimensions (L x W x H)

35.5 x 38.5 x 19.5 cm

Spectral Bandwidth

2 nm

Wavelength Range

190 to 1100 nm

Drift

(At 500 nm after 1 hour warmup) <0.0010 A/hr.

Electrical Requirements

External AC to DC converter. Voltage and Frequency (Hz) selected automatically, 100/240 V, 50/60 Hz

Keypad

Touchscreen

Lamp Life

Noise

(RMS at 500 nm 60 consecutive measurements)

≤0.00020A at 0A at 260 and 500 nm

≤0.00030A at 1A at 260 and 500 nm

≤0.00040A at 2A at 260 and 500 nm

Optical Design

Double Beam

Photometric Accuracy

±0.002A at 0.5A, ±0.004A at 1.0 A±0.008 A at 546 nm

Photometric Display

Photometric Range

-3A to +5A

–2A to +3.5A

Photometric Repeatability

±0.001 A at 1 A measured at 1.0 A at 546 nm

Printer Included

Snap-on printer available

Scan Speed

aUtomatic- up to 1800 nm/min.

Stray Light

<0.05%T at 340 nm and 400 nm

Warranty

2 years standard with 1 year extension upon registration of the instrument with Thermo Fisher Scientific within 6 months of purchase

Wavelength Accuracy

±0.5 nm

Wavelength Data Interval

0.2 nm, 0.5 nm, 1 nm, 2 nm, 5 nm

Wavelength Repeatability

< ±0.2 nm

Weight (Metric)

7.5 kg

Unit Size

Each
