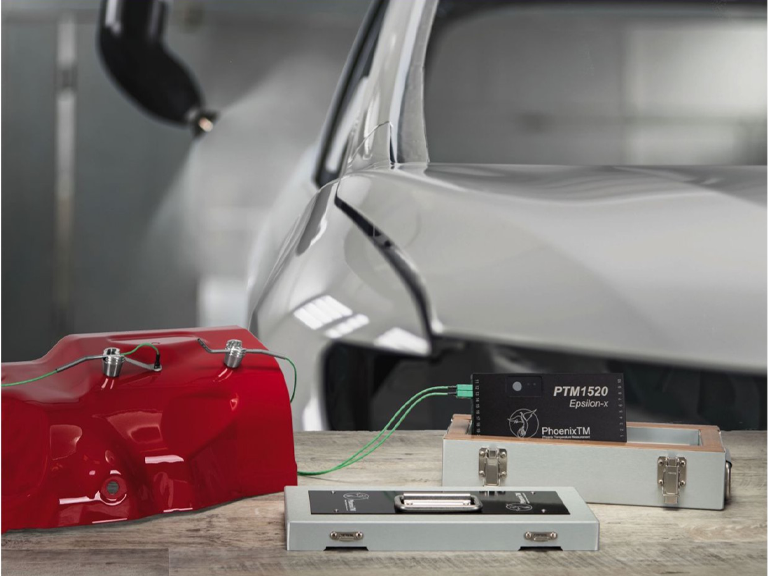

Thiết bị kiểm tra nhiệt độ trong lò sấy sơn ô tô, xe hơi, ngành công nghiệp xe hơi, ô tô model FIS04 ATEX / cMETus Intrinsically Safe Finishing System hãng PhoenixTM

• Many coating lines whether applying solvent / water-based paint or powder coating require products being coated to pass through zones / areas that are classified as explosive hazard. These areas may include the spray booth, flash off zone and even the paint curing oven itself. In such areas potentially explosive gases / volatile organic compounds (VOC) may be present from solvents such as Acetone, Toluene and Xylene, used in and released from the coatings or as cleaning agents. In powder coating applications dust clouds can create similar explosive environments.

• For any coating application, classified with an explosive risk, it is required by regulatory bodies that certified equipment should be used, proven to be safe in such environment. The PhoenixTM intrinsically safe finishing system offers such a system. Employing the Intrinsically safe 10 or 20 channel PTM1500 Epsilon-x data logger the system is ATEX approved (EU) for Zone 2 & 22. In the USA the system is also approved for use in hazardous locations (Zone 2, 22 Division 2) by an accredited NRTL (cMETus).

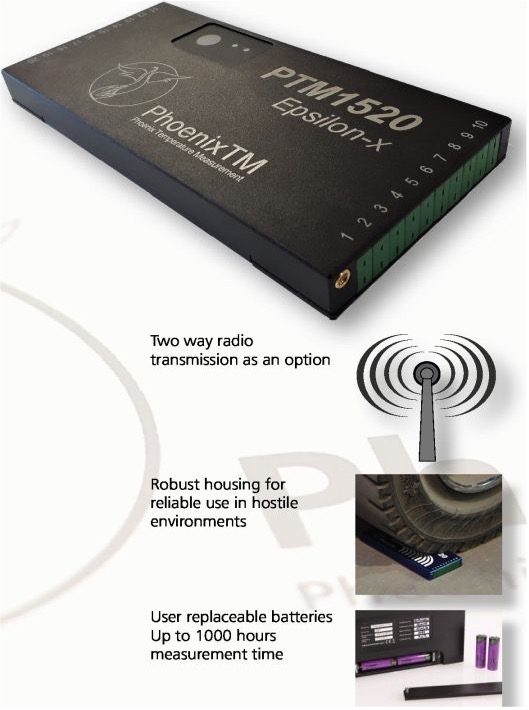

The robust intrinsically safe 10 or 20 channel data logger has been designed specifically to temperature profile paint processes to optimize the operation of the process, identify process issues and verify the cure quality. Cold junction compensation with feed back error detection and noise reduction ensures accurate and reliable data. Optional two way RF telemetry is available, allowing real time data analysis and for the data logger to be reset and downloaded remotely. The data logger is supplied with a factory calibration certificate traceable to national standard. Optional certification to UKAS(UK) or DKD(Germany) can be supplied if required.

Approved for use in hazardous locations (Zone 2, 22 Division 2) by an accredited NRTL (cMETus)

Potentially explosive environments

To perform a temperature profi le on a solvent, water-based or powder coating line requires that the profi ling system be passed through zones / areas that are classifi ed as potentially hazardous. These areas may include the spray booth, fl ash off zone and even the curing oven itself. In such areas potentially explosive gases / volatile organic compounds (VOC) may be present from solvents such as Acetone, Toluene and Xylene, used in and released from the coatings or as cleaning agents. When powder coating fine particles can form potentially explosive dust clouds.

PhoenixTM can provide a solution:

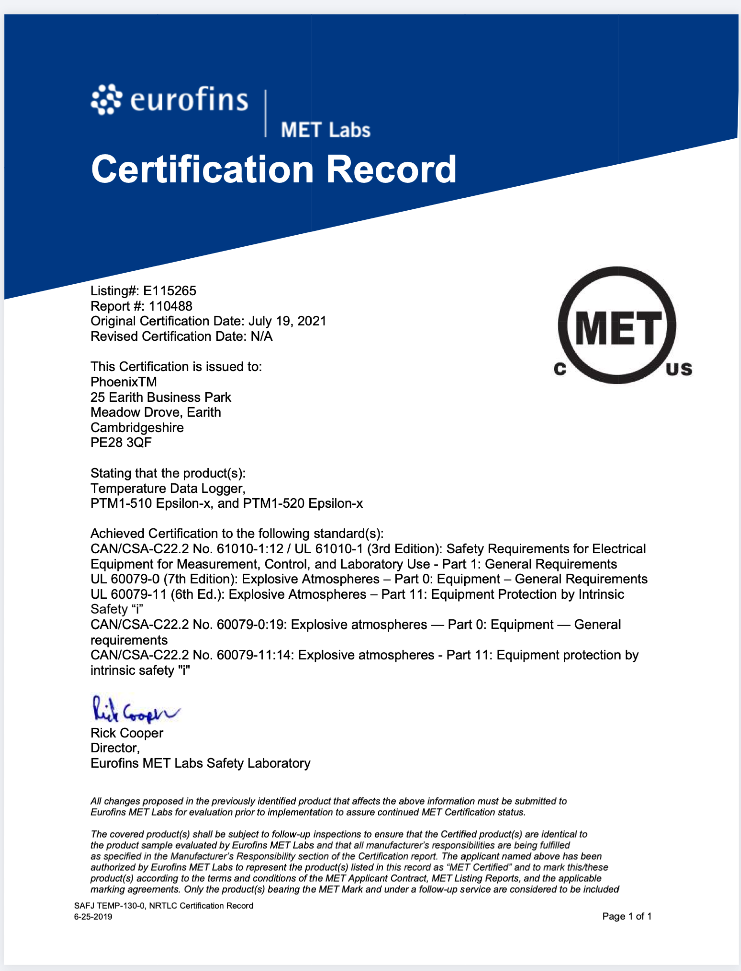

The logger is provided with a MET certifi cate against NEC and CSA standards for intrinsically safe operation in gaseous environments defi ned as Zone 2, Division 2 and dust environments defi ned as Zone 22, Division 2 respectively.

MET Certifi cation Mark

MET Certifi cate No E115265

Type 3R

Standard TS04 range performance:

* for a 20 channel data logger

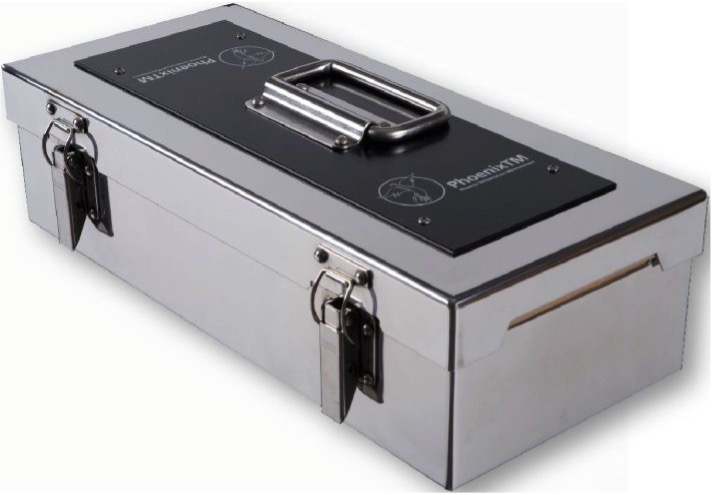

Need a thermal barrier to suit your application? Tell us your requirements and if it’s possible we’ll design and manufacture it for you! We are constantly developing and looking forward to any new challenge.

Available as magnetic, clamp or exposed junction, the thermocouples are PTFE insulated, triple wrapped with stainless steel braid, and have a final overall PTFE insulation.

All PhoenixTM finishing thermocouples are manufactured using the highest quality materials and conform to ANSI 96.1 special limits specification. The thermocouples are designed to withstand rough handling and uniquely include user replaceable sensors to minimize long term running costs.

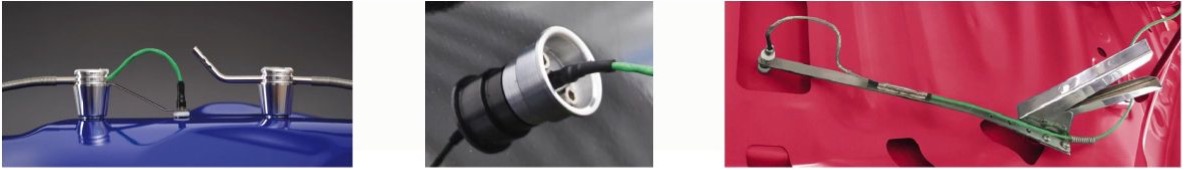

Magnetic Surface and Air

MiniMag

Aluminum Clamp

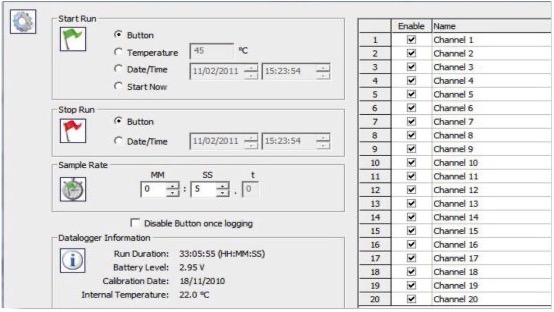

New Profile : Datalogger Settings
