Specifications:

TYPE OF INSTRUMENT:

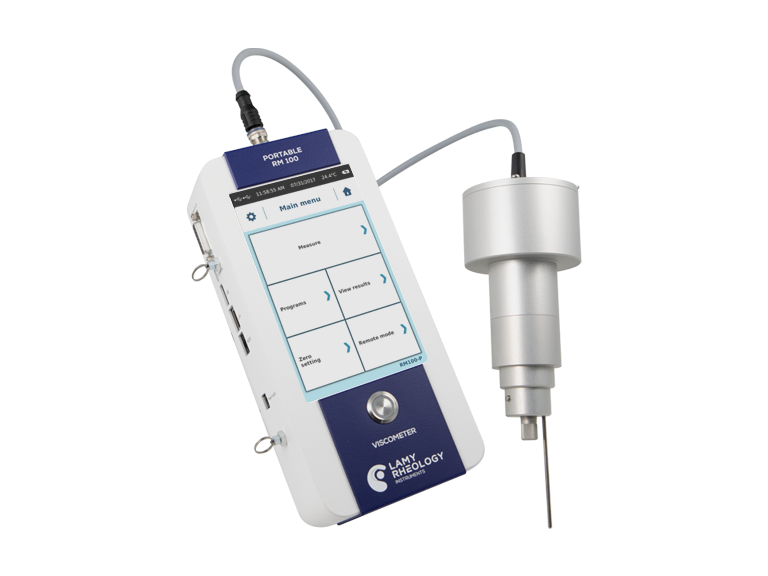

Rotating springless viscometer with 7’’

TOUCH SCREEN ROTATION SPEEDS:

Unlimited number of speeds between 0.3 and 1500 rpm

TORQUE RANGE:

From 0.05 to 30 mNm

TEMPERATURE:

The Portable RM 100 has a PT100 sensor which indicates temperatures between -50 °C to + 300 °

CACCURACY:

+/- 1 % of the full scale

REPEATABILITY:

+/- 0,2 %

DISPLAY:

Viscosity (cP/Poises or mPa.s / Pa.s)-Speed – Shear rate – Torque (%-mNm) - Shear stress - Time – Temperature

COMPATIBLE ACCESSORIES:

Standard or rack stand

HELIPRO stand

Small volume package

Small volumes package

THERMOCELL package

Bayonet spindle rack

Barcode reader with stand and cable

Touch screen protector

Viscosity standards oil

Dymo printer

RheoTex software

GuardLeg

SECURITY AND CONFIDENTIALITY:

An «operator» function allows you to enter a username for your instrument. This user must then be identified using a 4-digit code.There is also a protected mode that locks your measurement conditions.

LANGUAGES:

French/English/Russian/Spanish/Turkish/German

COMPATIBLE MEASURING SYSTEMS:

MS DIN, MS RV/LV, MS BV, MS VANE, MS R, MS ULV, MS SV

COMPATIBLE TEMPERATURE CONTROL:

EVA MS-DIN PLUS, EVA MS-R PLUS, EVA LR-BV PLUS, RT-1 PLUS

SUPPLY VOLTAGE:

90-240 VAC 50/60 Hz

PC CONNECTIONS:

RS232 Port, USB and Ethernet

PRINTER CONNECTION:

USB Host Port - Compatible PCL/5

WHAT BENEFITS ARE THERE FOR YOU?

The Portable RM 100 gives you one hour of measuring time.

Save your measurement protocols directly on your viscometer.

The Portable RM 100 lets you set measuring times for thixotropic

products. You can connect a USB printer. External control thanks

to the optional software.

DIMENSIONS AND WEIGHT:

Head : Ø 90 mm

Box: D60 x H260 x W120

Weight: 2kg
