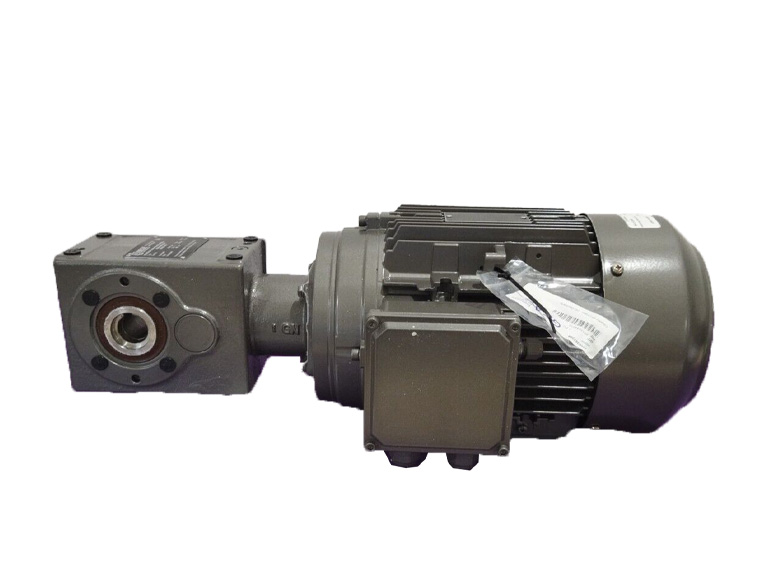

Cụm motor bánh răng T3AKS063

Motor bánh răng T3AKS063

• V | N1 (60Hz): 1740 rpm | i 3,73:1 | N2 (60Hz): 467 rpm | IP56
• Mounting position: D/A | ISOVG150 S PAO Notox
• Primary side | 160/130/110 mm | D=28 Secundary side | Shaft: D=25
• ST.ST. Side: H
• Viton shaft seal out. Shaft
• 2,2 kW | S1 | IE3 | 1500/1800 rpm | 230/400V 50Hz | 265/460V 60Hz | IP56 | F
• B14A 160/130/110 mm | Cable gland position R | 2x M20x1,5 | cURus and/or c-CSA-us
• Shaft execution DE-side: D=28 L=32 / open keyway | 6206 2RS C3 | OK 30x42x7 A NBR
• Shaft execution NDE-side:6206 2RS C3 | OK 30x42x7 A NBR
• Encapsulated terminal box
• Bimetal (PTO) / cable gland M12X1,5
• Steel-it C2 (2K)
• Drawing BEGE
